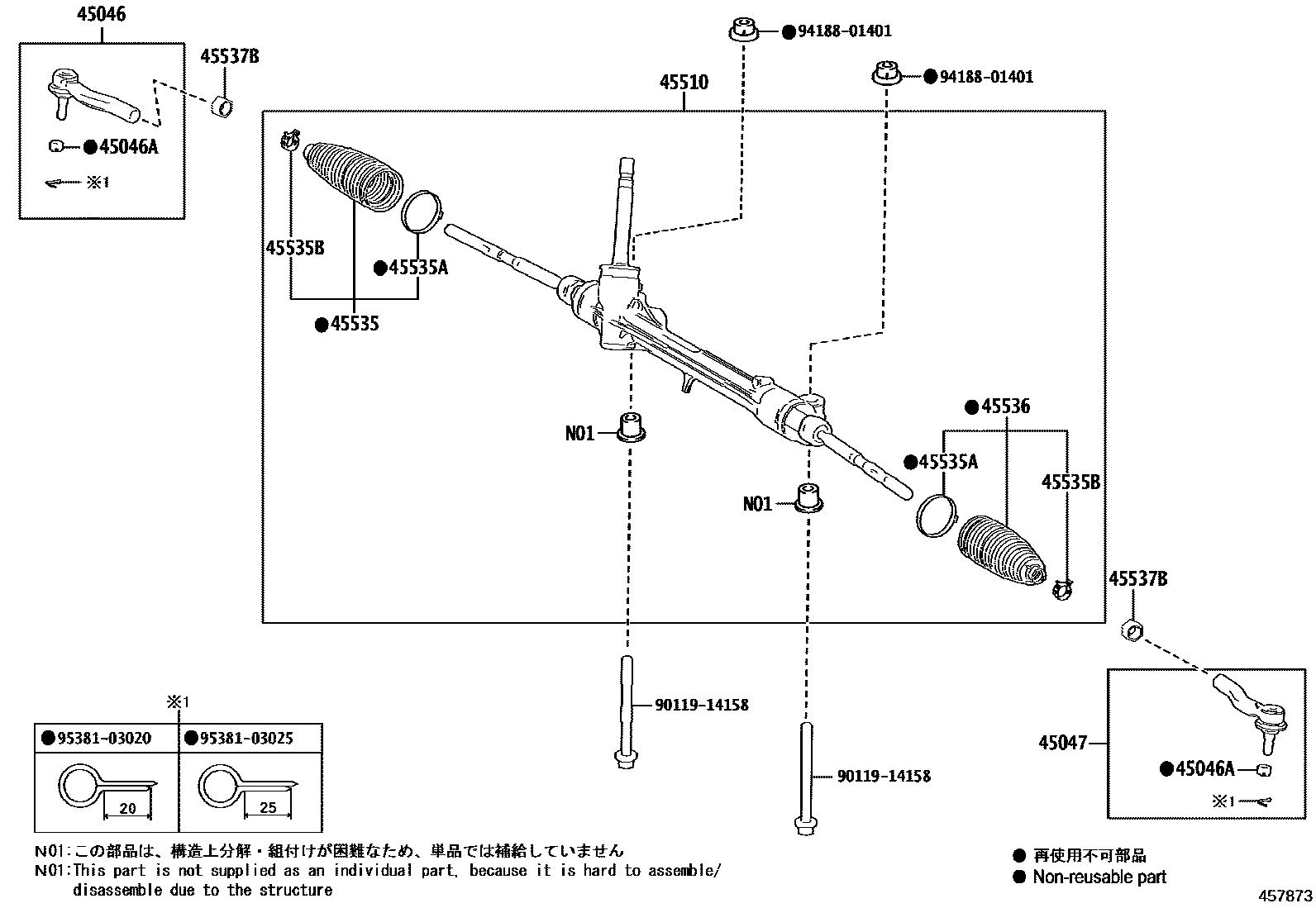

Toyota C-HR (JPP) — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iNGX10,50¥2,690201612-201910

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNGX10,50¥130201612-201910

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iNGX10,50¥2,690201612-201910

45510GEAR ASSY, STEERING

main45510-10240iNGX10,50¥32,900201612-201910

45535BOOT, STEERING RACK, NO.1

main45535-59075iNGX10,50¥790201612-201910

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-48020iNGX10,50¥240201612-201910

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iNGX10,50¥320201612-201910

45536BOOT, STEERING RACK, NO.2

main45535-59075iNGX10,50¥790201612-201910

45537BNUT, RACK END LOCK

main90178-16001iNGX10,50¥120201612-201910

9011914158

main90119-14158¥430

9418801401

main94188-01401¥190

9538103020

main95381-03020¥90

9538103025

main95381-03025¥130

13 parts on this diagram · 1 diagram in section
