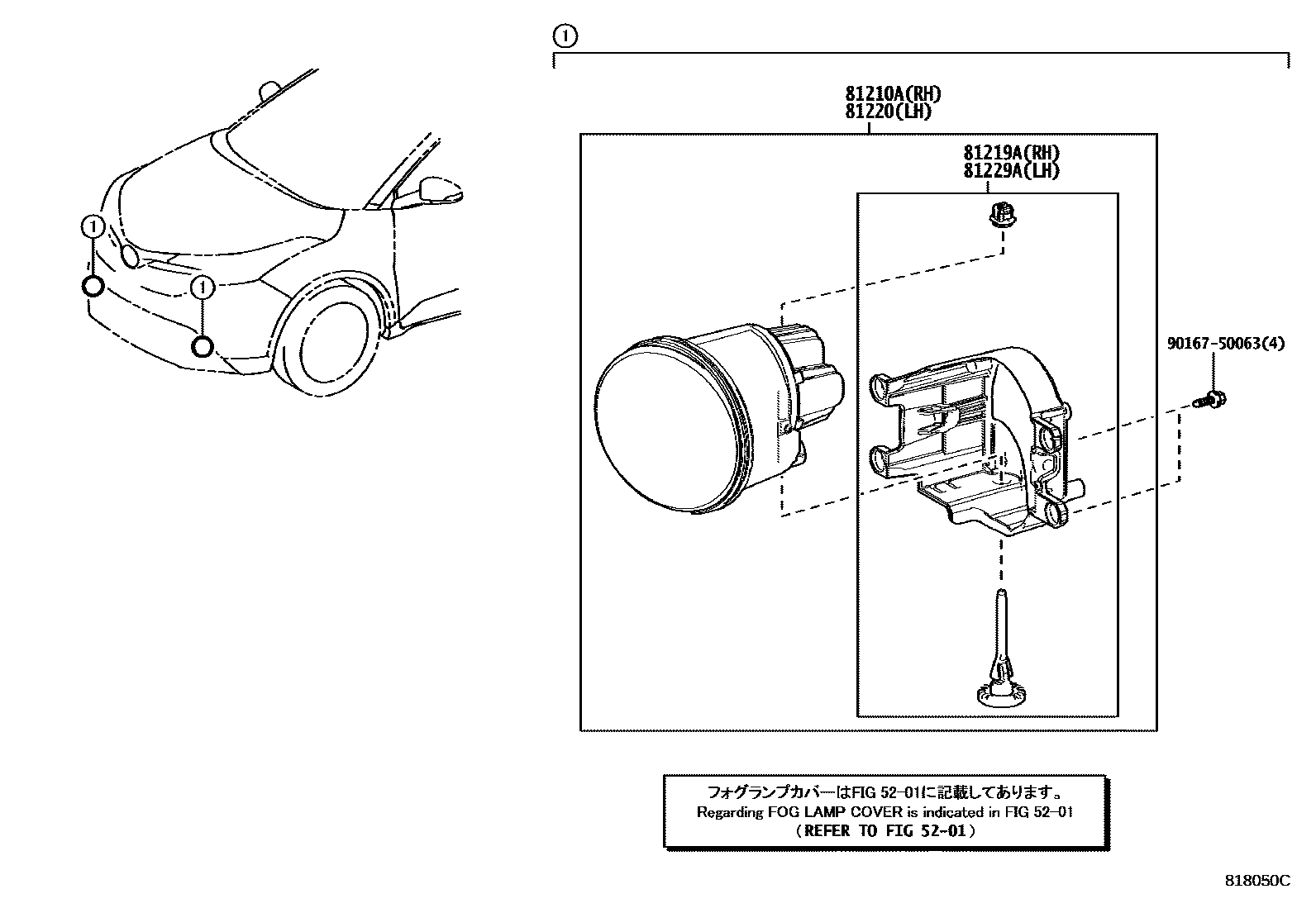

Toyota C-HR (JPP) — FOG LAMP

0001 1 0002 1 0003 1

5201

81210ALAMP ASSY, FOG, RH

main81210-12240iNGX10,50,ZYX10¥8,000201910-202101

main81210-48051iNGX10,50¥15,400201612-201910

81219ABRACKET, FOG LAMP, RH

main81219-48051iNGX10,50¥970201612-201910

81220LAMP ASSY, FOG, LH

main81220-12240iNGX10,50,ZYX10¥8,000201910-202101

main81220-48051iNGX10,50¥15,400201612-201910

81229ABRACKET, FOG LAMP, LH

main81229-48051iNGX10,50¥970201612-201910

9016750063

main90167-50063¥60

6 parts on this diagram · 3 diagrams in section
