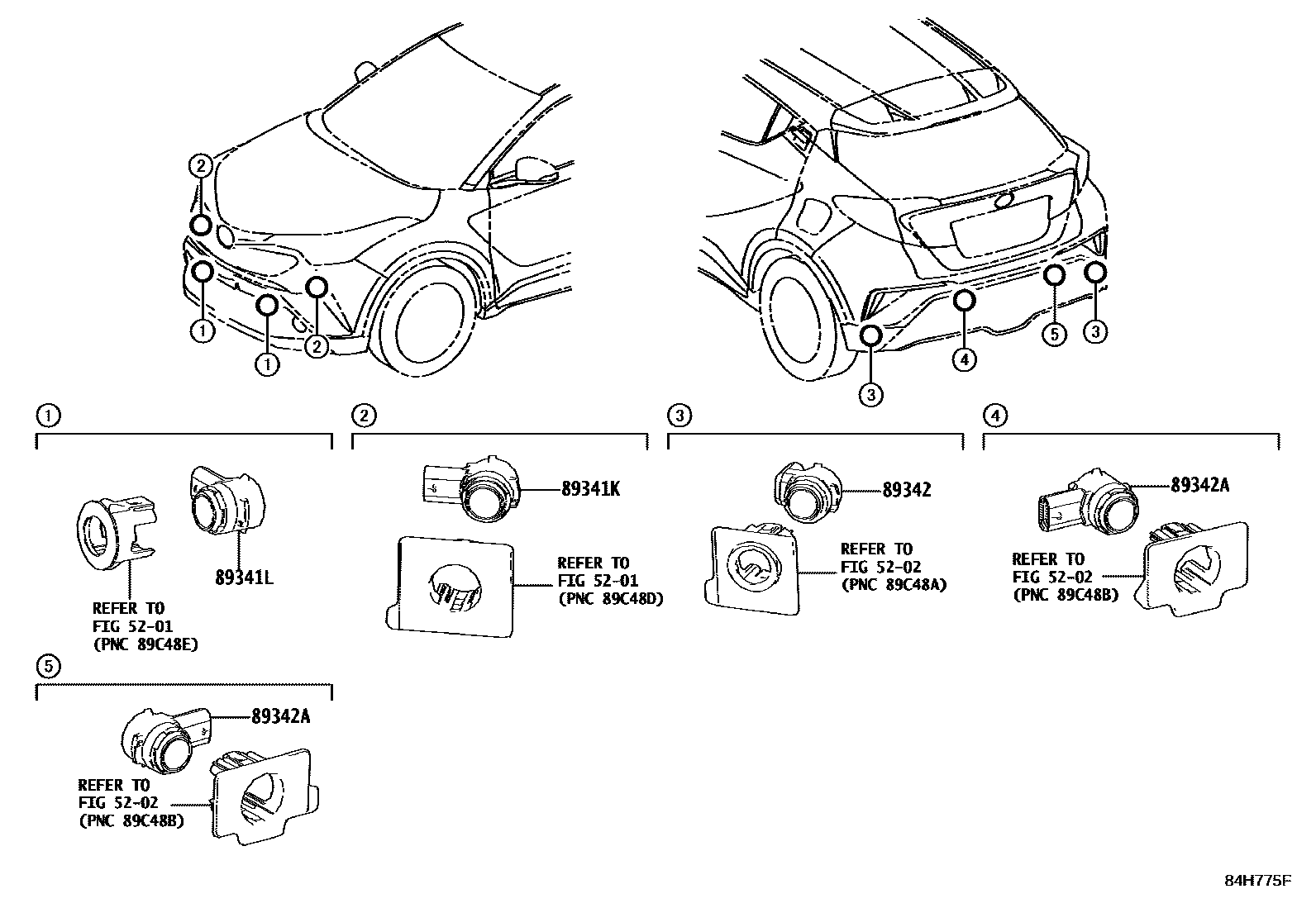

Toyota C-HR (JPP) — CLEARANCE & BACK SONAR
5201
5202
89341KSENSOR, ULTRASONIC, FRONT CORNER
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2NA
METAL STREAM ME,1K0 ,2NK
METAL STREAM ME,1K0
BLACK MC.,209
BLACK MC.,209 ,2ND
RED MC.,3T3
RED MC.,2NE ,2NF ,3T3
DK. BROWN M.M.,4U3
DK. BROWN M.M.,2NC ,4U3
YELLOW,2JU ,2PQ ,5A3
YELLOW,5A3
RADIANT GREEN ME.,6W9
RADIANT GREEN ME.,2NJ ,6W9
BLUE ME.,2PR ,2RW ,8T7
BLUE ME.,8T7
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,2NG ,2NH ,8X2
MAT BLACK
89341LSENSOR, ULTRASONIC, FRONT CENTER
MAT BLACK
BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
MAT BLACK
BLACK
89342ASENSOR, ULTRASONIC, REAR CENTER
MAT BLACK
BLACK
6 parts on this diagram · 4 diagrams in section
