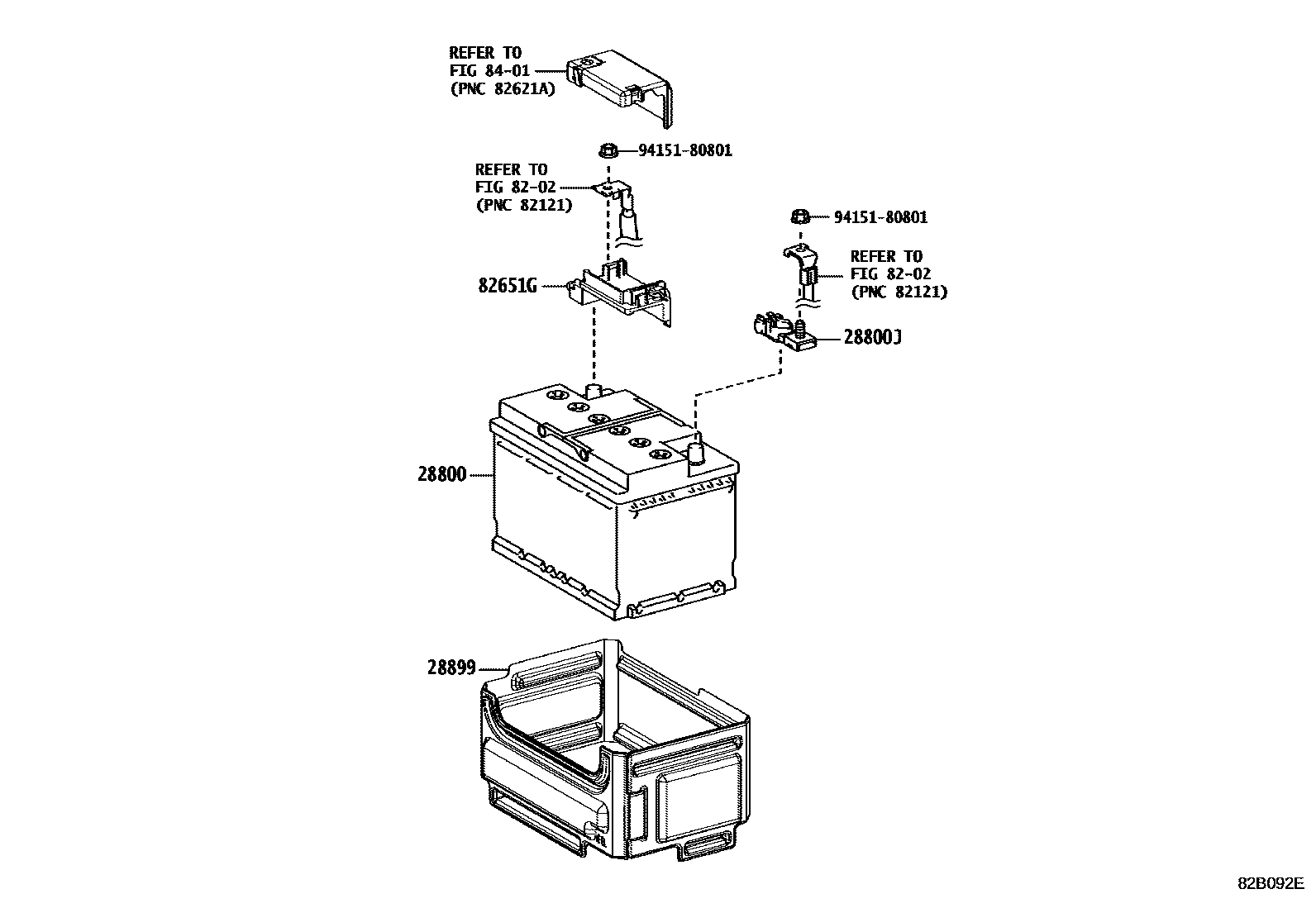

Toyota C-HR (JPP) — BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-25010i8NRFTS..NGX10,50¥0201612-202206

LN2

sub28800-25011

main28800-25011i8NRFTS..NGX10,50202207-202302

LN2

sub28800-25012

main28800-25012i8NRFTS..NGX10,50202303

LN2

sub28800-25013

main28800-37130i2ZRFXE..ZYX10¥0201910-202302

LN1

sub28800-37131

main28800-37131i2ZRFXE..ZYX10202303

LN1

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i8NRFTS..NGX10,50¥850201612-201910

28899INSULATOR, BATTERY

main28899-47030i8NRFTS..NGX10,50¥3,080201612-201811

main28899-47040i8NRFTS..NGX10,50¥1,250201812-201910

8202

82651GTERMINAL, BATTERY POSITIVE

main82651-10010iNGX10,50¥2,000201612-201910

8401

9415180801

main94151-80801¥80

7 parts on this diagram · 5 diagrams in section
