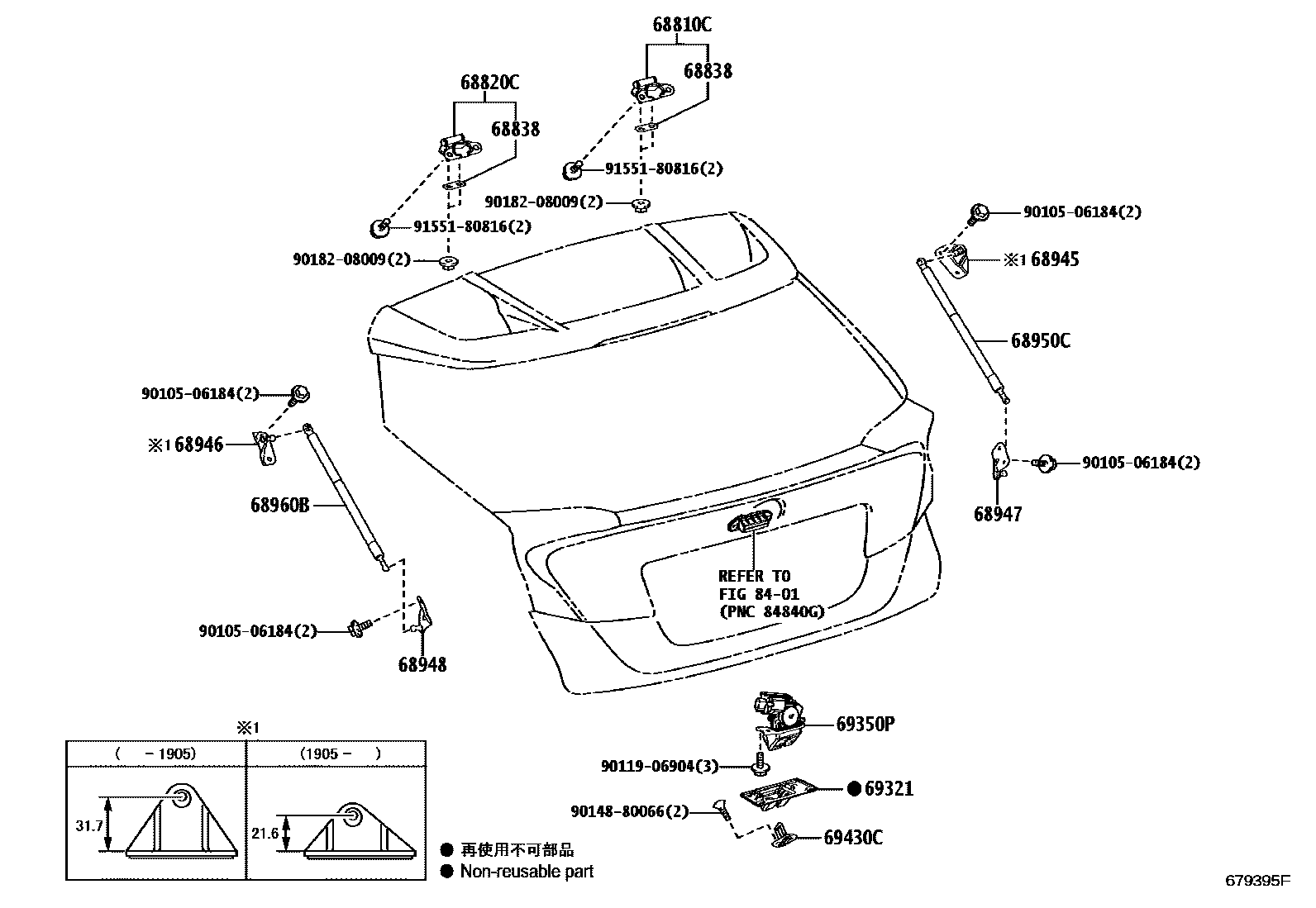

Toyota C-HR (JPP) — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-10030iNGX10,50¥2,130201612-201809

sub68810-10031¥1,770

main68810-10031iNGX10,50¥1,770201810-201910

68820CHINGE ASSY, BACK DOOR, LH

main68810-10030iNGX10,50¥2,130201612-201809

sub68810-10031¥1,770

main68810-10031iNGX10,50¥1,770201810-201910

68838PAD, BACK DOOR HINGE, NO.1

main68838-47010iNGX10,50,ZYX10¥80201612-201910

T=1.0,PAD T=1.0

main68838-47020iNGX10,50¥160201612-201910

T=1.5,PAD T=1.5

main68838-47030iNGX10,50¥200201612-201910

T=2.0,PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-10010iNGX10,50¥410201612-201905

main68945-10020iNGX10,50¥410201905-201910

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-10010iNGX10,50¥410201612-201905

main68946-10010iNGX10,50¥410201905-201910

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-10010iNGX10,50¥500201612-201710

sub68947-10011¥410

main68947-10011iNGX10,50,ZYX10¥410201711-201910

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-10010iNGX10,50¥500201612-201710

sub68948-10011¥410

main68948-10011iNGX10,50¥410201711-201910

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WD40iNGX10,50¥8,000201612-201805

main68950-0WD41iNGX10,50¥8,000201805-201905

main68950-0WJ00iNGX10,50¥7,800201905-201910

main68950-0WJ10iNGX10,50,ZYX10..LUX¥7,800201910

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WD40iNGX10,50¥8,000201612-201805

main68960-0WD41iNGX10,50¥8,000201805-201905

main68960-0WJ00iNGX10,50¥7,800201905-201910

main68960-0WJ10iNGX10,50,ZYX10..LUX¥7,800201910

69321COVER, BACK DOOR LOCK

main69321-10010iNGX10,50¥920201612-201910

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-10140iNGX10,50¥9,800201612-201910

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iNGX10,50¥1,110201612-201910

8401

9010506184

main90105-06184¥70

9011906904

main90119-06904¥80

9014880066

main90148-80066¥60

9018208009

main90182-08009¥100

9155180816

main91551-80816¥80

18 parts on this diagram · 1 diagram in section
