Toyota C-HR (JPP) — ANTENNA

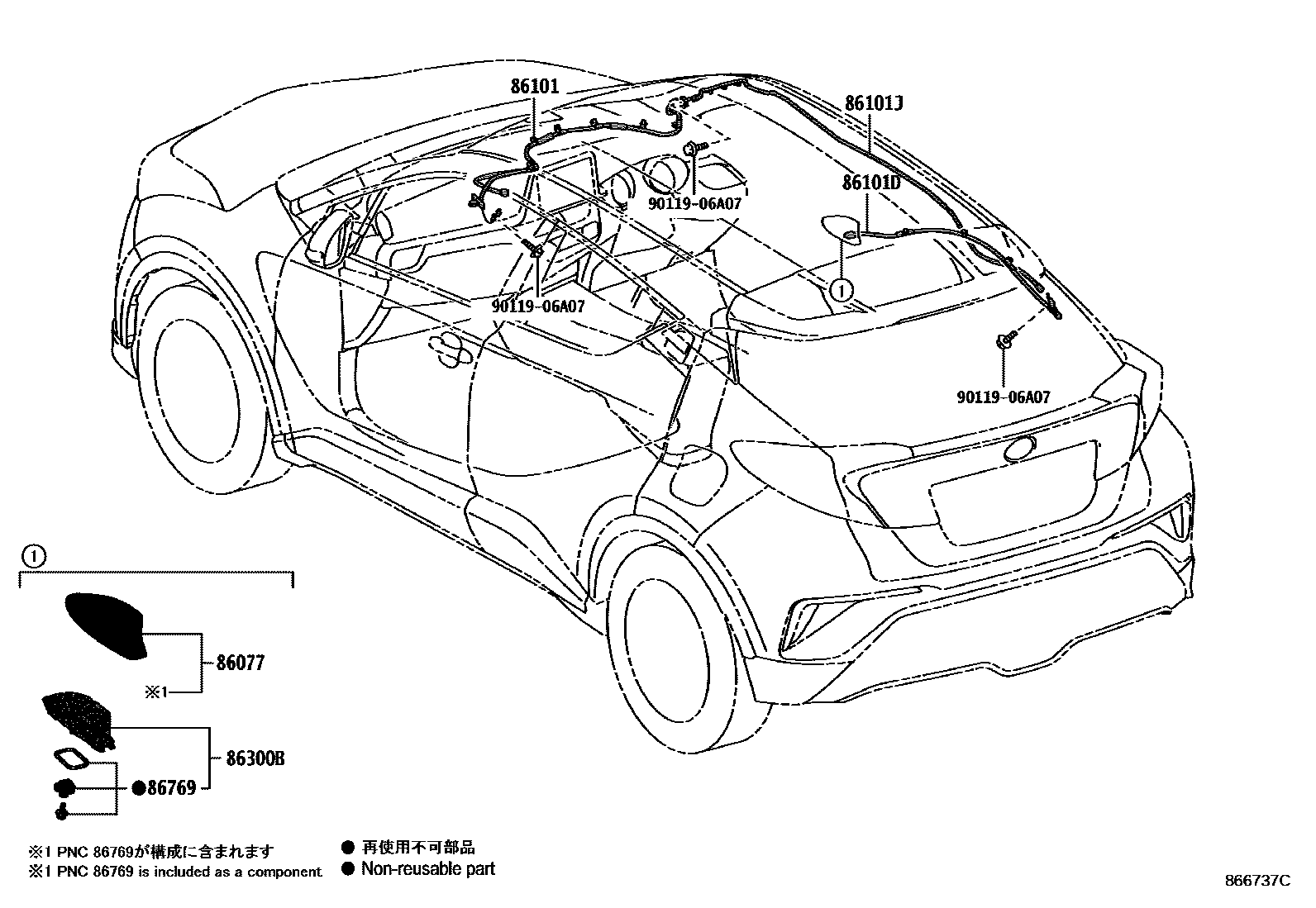

Parts diagram
86077COVER KIT, ANTENNA
main86077-47010-A1i201612-201910
WHITE PEARL CS.,070
sub86077-47010¥2,500
main86077-47010-A2i201612-201910
WHITE,2JU ,2NC ,2NJ ,2PR
sub86077-47010¥2,500
main86077-47010-A2i201612-201910
WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR
sub86077-47010¥2,500
main86077-47010-B2i201612-201910
METAL STREAM ME,1K0
sub86077-47010¥2,500
main86077-47010-C1i201612-201910
BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW
sub86077-47010¥2,500
main86077-47010-C1i201612-201910
BLACK,2NA ,2NK ,2PQ
sub86077-47010¥2,500
main86077-47010-C2i201612-201910
BLACK MC.,209
sub86077-47010¥2,500
main86077-47010-D1i201612-201910
RED MC.,3T3
sub86077-47010¥2,500
main86077-47010-E1i201612-201910
DK. BROWN M.M.,4U3
sub86077-47010¥2,500
main86077-47010-F0i201612-201910
YELLOW,5A3
sub86077-47010¥2,500
main86077-47010-G1i201612-201910
RADIANT GREEN ME.,6W9
sub86077-47010¥2,500
main86077-47010-J1i201612-201805
BLUE ME.,8T7
sub86077-47010¥2,500
main86077-47010-J3i201801-201910
NEBULA BLUE ME.,8X2
sub86077-47010¥2,500
main86077-47020-A1i201910-202109
WHITE PEARL CS.,070
sub86077-47020¥2,710
main86077-47020-A3i202109
PLATINUM WHITE PEARL MC.,089
sub86077-47020¥2,710
main86077-47020-B1i201910
GRAY ME.,1G3
sub86077-47020¥2,710
main86077-47020-B4i201910
METAL STREAM ME,1K0
sub86077-47020¥2,710
main86077-47020-B4i201910
METAL STREAM ME,1K0 ,2TA ,2TD
sub86077-47020¥2,710
main86077-47020-B6i202208
CEMENT GRAY ME.,1H5
sub86077-47020¥2,710
main86077-47020-C1i201910
BLACK MC.,209
sub86077-47020¥2,710
main86077-47020-C3i201910
BLACK,2NA ,2NB ,2NH ,2NK ,2PQ ,2TB ,2TC ,2VP ,2VT
sub86077-47020¥2,710
main86077-47020-C3i201910
BLACK,2NA ,2PQ ,2TB ,2VP
sub86077-47020¥2,710
main86077-47020-C4i202106-202208
SPARKLING BLACK PEARL CS.,220
sub86077-47020¥2,710
main86077-47020-D8i201910
EMOTIONAL RED 2,3U5
sub86077-47020¥2,710
main86077-47020-E7i201910-202106
ORANGE ME.,4R8
sub86077-47020¥2,710
main86077-47020-F0i201910
YELLOW,5A3
sub86077-47020¥2,710
main86077-47020-G4i201910-202208
OXIDE BRONZE ME.,6X1
sub86077-47020¥2,710
main86077-47020-J0i202208
DK.BLUE M.M.,8W7
sub86077-47020¥2,710
main86077-47020-J2i201910-202208
NEBULA BLUE ME.,8X2
sub86077-47020¥2,710
86101CORD SUB-ASSY, ANTENNA
main86101-10090i¥4,760201612-201910
main86101-10330i201910
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-10060i201612-201910
main86101-10160i201910
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-10080i¥3,960201612-201910
main86101-10140i201910
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-47180i¥8,100201612-201910
main86760-47061i¥11,700201910
86769HOUSING, ROOF ANTENNA
main86769-12010i¥500201910
main86769-12010i¥500201612-201910
9011906A07
main90119-06A07¥60

7 parts on this diagram · 1 diagram in section
