Toyota C-HR(CHINA) — VACUUM PUMP

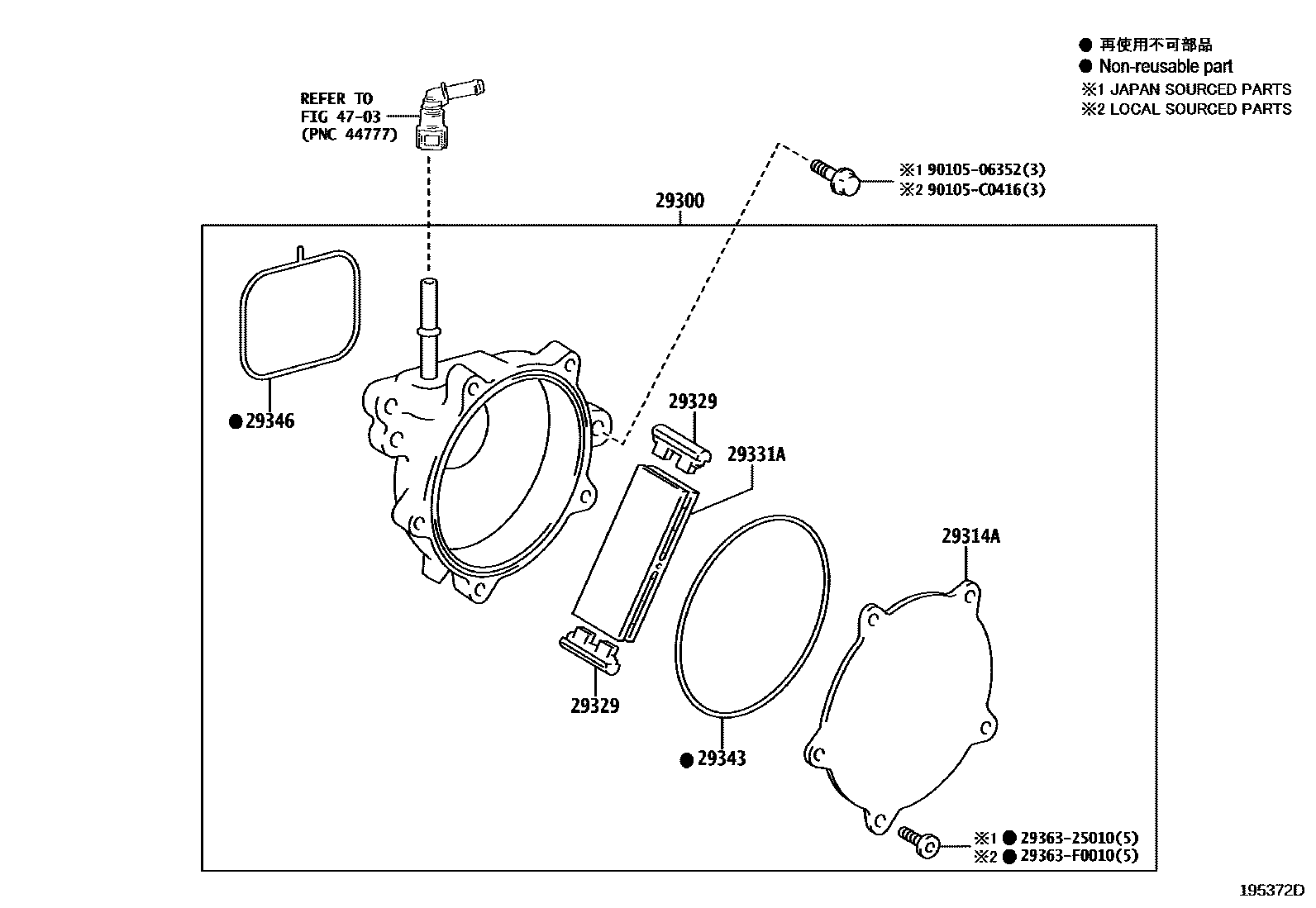

Parts diagram
29300PUMP ASSY, VACUUM
main29300-24011i¥14,800201808-201908
TAIHO
main29300-25011i¥17,300202005-202202
JAPAN SOURCED PARTS
sub29300-25012¥15,700
main29300-25012i¥15,700202202
JAPAN SOURCED PARTS
main29300-F0011i202005-202202
NA SOURCED PARTS
sub29300-F0012
main29300-F0012i202202
NA SOURCED PARTS
main29300-F2030i202005-202012
ENGINE-M20A-FKS,EUROPE SOURCED PARTS
sub29300-F2031
main29300-F2030i202005-202012
EUROPE SOURCED PARTS
sub29300-F2031
main29300-F2031i202101
EUROPE SOURCED PARTS
main29300-F2040i201908-202004
BOSCH
sub29300-F2041
main29300-F2040i201908-202004
ENGINE-M20A-FKS,BOSCH
sub29300-F2041
main29300-F2041i202005
CHINA SOURCED PARTS
29314ACOVER, END
main29314-25010i¥900202005
JAPAN SOURCED PARTS
main29314-25010i¥900201808-201908
TAIHO
main29314-F0010i202005
NA SOURCED PARTS
29329CAP, VACUUM PUMP VANE
main29329-24011i¥900201808-201908
TAIHO
main29329-25011i¥900202005
JAPAN SOURCED PARTS
main29329-F0011i202005
NA SOURCED PARTS
29331AVANE, VACUUM PUMP
main29331-24010i¥590201808-201908
TAIHO
main29331-25010i¥650202005-202202
JAPAN SOURCED PARTS
sub29331-37010¥590
main29331-37010i¥590202202
JAPAN SOURCED PARTS
main29331-F0010i202005
NA SOURCED PARTS
29343RING, O VACUUM PUMP, NO.1
main29343-25010i¥340202005
JAPAN SOURCED PARTS
main29343-25010i¥340201808-201908
TAIHO
main29343-F0010i202005
NA SOURCED PARTS
main29343-F2030i202005
EUROPE SOURCED PARTS
29346RING, O VACUUM PUMP COVER
main29346-25010i¥340202005
JAPAN SOURCED PARTS
main29346-25010i¥340201808-201908
TAIHO
main29346-F0010i202005
NA SOURCED PARTS
4703
2936325010SCREW, HOLLOW VACUUM PUMP
main29363-25010¥200
29363F0010SCREW, HOLLOW VACUUM PUMP
main29363-F0010
9010506352
main90105-06352¥60
90105C0416
main90105-C0416

11 parts on this diagram · 2 diagrams in section
