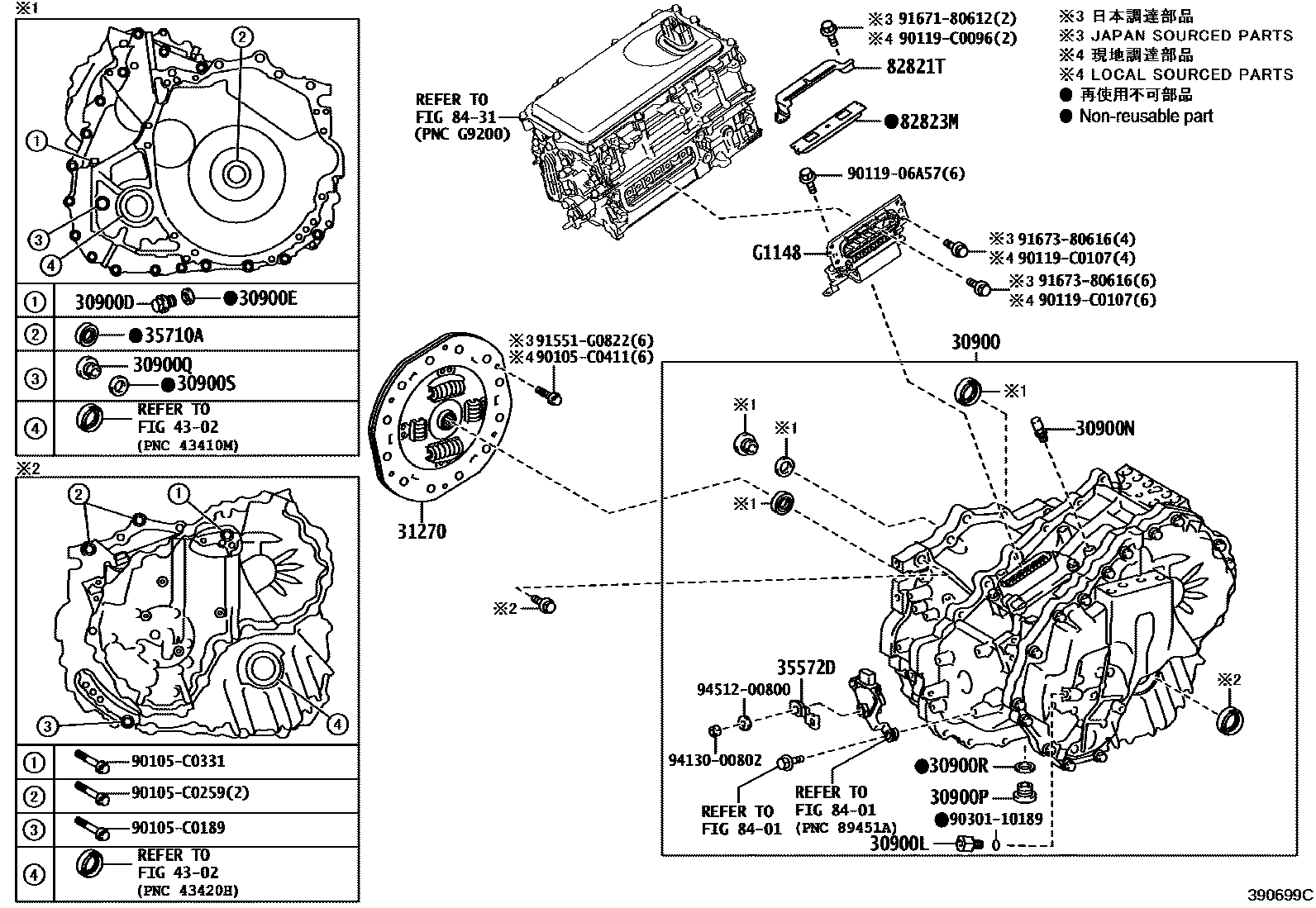

Toyota C-HR(CHINA) — TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-10010iMAXH10202106

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMAXH10¥240202106-202208

main90341-18060iMAXH10¥240202208

(J)

main90341-C0022iMAXH10202208

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMAXH10¥110202106

30900LUNION(FOR TRANSAXLE HOUSING)

main90404-16031iMAXH10¥340202106

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMAXH10¥120202106

30900PPLUG, DRAIN(HEV)

main90341-18016iMAXH10¥190202106

30900QPLUG, FILLER(HEV)

main90341-18016iMAXH10¥190202106

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMAXH10¥110202106

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMAXH10¥110202106

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-12010iMAXH10¥36,400202106

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iMAXH10¥620202106

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-27011iMAXH10¥290202106

4302

82821TCOVER, CONNECTOR

main82821-47240iMAXH10¥1,740202106

82823MCAP, TERMINAL

main82823-47040iMAXH10¥700202106

8401

8431

G1148CABLE, MOTOR

mainG114833050iMAXH10202106

90105C0189

main90105-C0189

90105C0259

main90105-C0259

90105C0331

main90105-C0331

90105C0411

main90105-C0411

9011906A57

main90119-06A57¥60

90119C0096

main90119-C0096

90119C0107

main90119-C0107

9030110189

main90301-10189¥170

91551G0822

main91551-G0822¥80

9167180612

main91671-80612¥60

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 1 diagram in section
