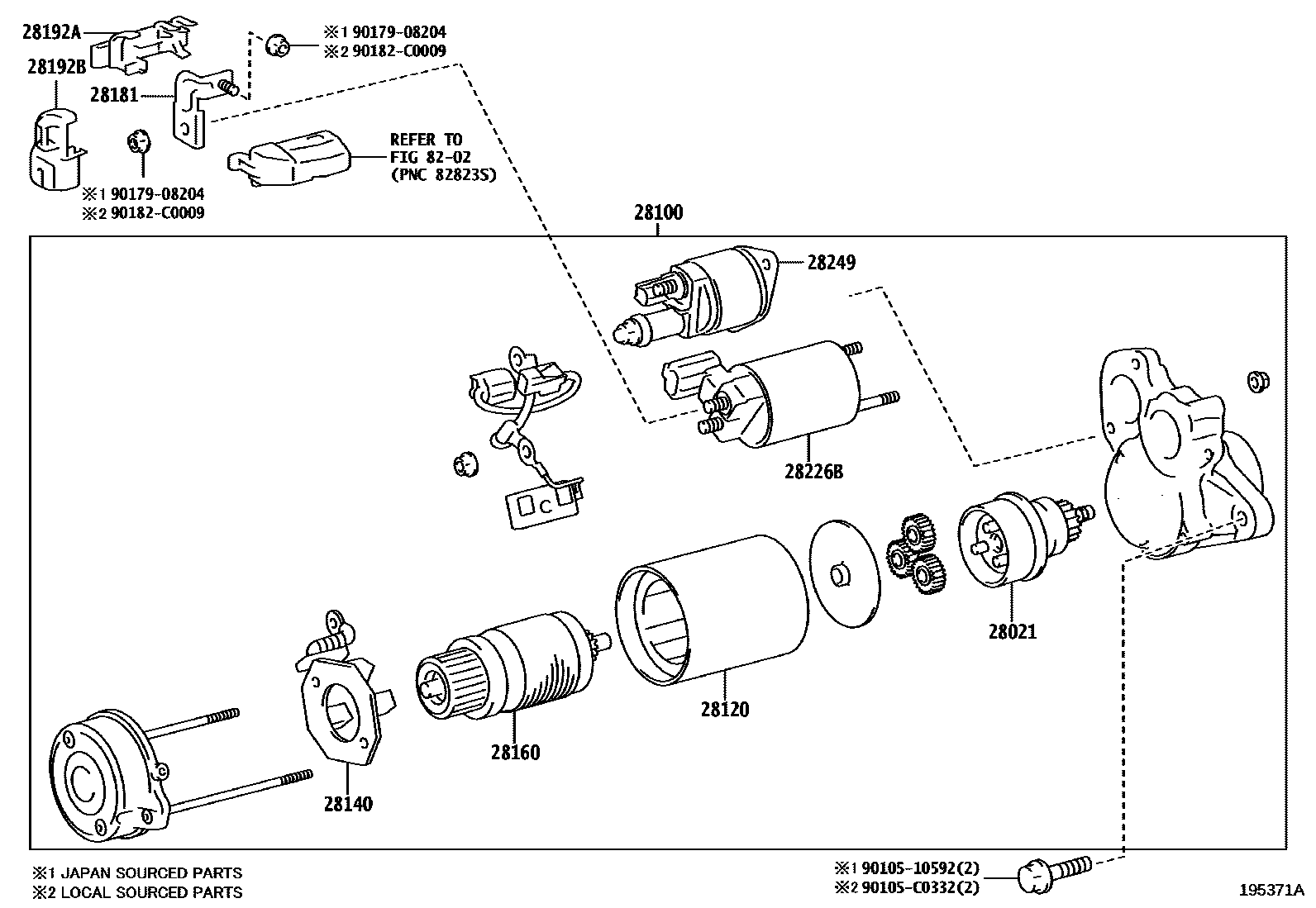

Toyota C-HR(CHINA) — STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-F0020iM20..MAXA10..D,G,N201808-202106

28100STARTER ASSY

main28100-F0020iM20..MAXA10201808-201812

12V 1.7KW

main28100-F0090iM20..MAXA10..D,G,N202303

12V 1.7KW

main28100-F2080iM20..MAXA10..E201812-202303

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-F0020iM20..MAXA10..E201808-202106

28140HOLDER ASSY, STARTER BRUSH

main28140-0V040iM20..MAXA10..D,G,N201808-202106

28160ARMATURE ASSY, STARTER

main28160-0S050iM20..MAXA10..D,G,N201808-202106

28181TERMINAL, STARTER

main28181-24020iM20..MAXA10..D,G,N¥1,220201808-202107

main28181-F2020iM20..MAXA10..D,G,N202303

main28181-F2030iM20..MAXA10..D,G,N202108-202303

28192ACOVER, STARTER, NO.1

main28192-F2040iM20..MAXA10..E201808-202106

28192BCOVER, STARTER, NO.2

main28192-F2050iM20..MAXA10..D,G,N201808-202303

main28192-F2170iM20..MAXA10..D,G,N202303

28226BSTARTER KIT, REPAIR SERVICE

main28226-25070iM20..MAXA10..D,G,N201808-202303

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iM20..MAXA10..E¥7,500202012-202106

JAPAN SOURCED PARTS

main28249-37100iM20..MAXA10¥7,500201808-202012

main28249-F0020iM20..MAXA10..E202012-202303

LOCAL SOURCED PARTS

8202

9010510592

main90105-10592¥160

90105C0332

main90105-C0332

9017908204

main90179-08204¥140

90182C0009

main90182-C0009

15 parts on this diagram · 2 diagrams in section
