Toyota C-HR(CHINA) — STANDARD TOOL

09111JACK SUB-ASSY

main09111-F4030iMAXA10201808-201904

sub09111-F4031

main09111-F4031iMAXA10..D,G,N201905-202106

09113HANDLE, JACK

main09113-0R030iMAXA10..D,G,N201808-202106

09150WRENCH, HUB NUT BOX

main09150-0R020iMAXA10..D,G,N201808-202106

091Y9JACKET, W/REFLECTOR

main091Y9-02010iMAXA10..D,G,N201808-202106

51961NHOOK, TRANSPORT

main51960-F4020iMAXH10;MAXA10..D,G,N202001-202106

main51961-F4040iMAXA10201808-201912

sub51960-F4020

81604REFLECTOR SET, TRIANGLE

main81604-0E010iMAXA10..D,G,N201808-202106

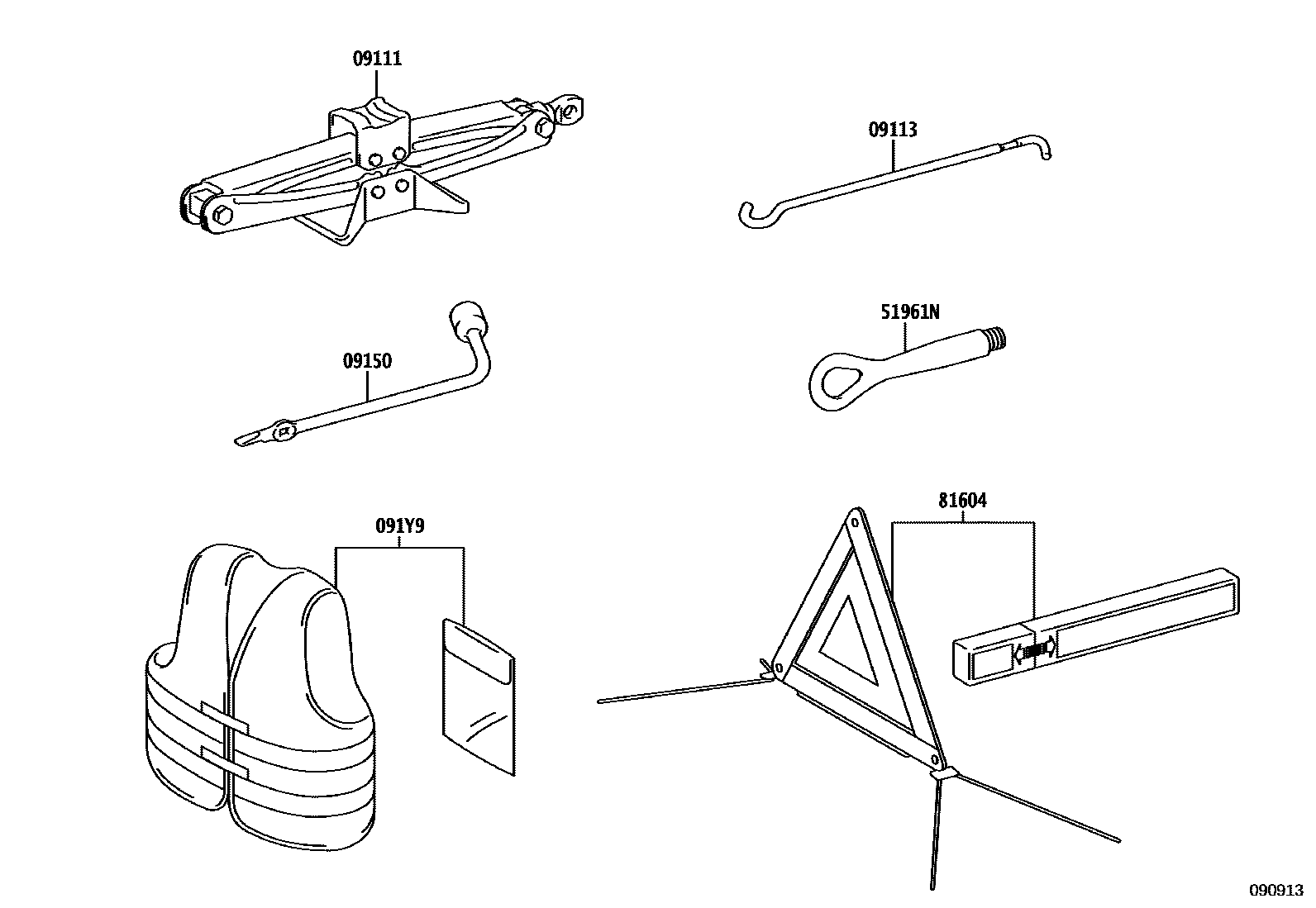

6 parts on this diagram · 1 diagram in section
