Toyota C-HR(CHINA) — ROOF HEADLINING & SILENCER PAD

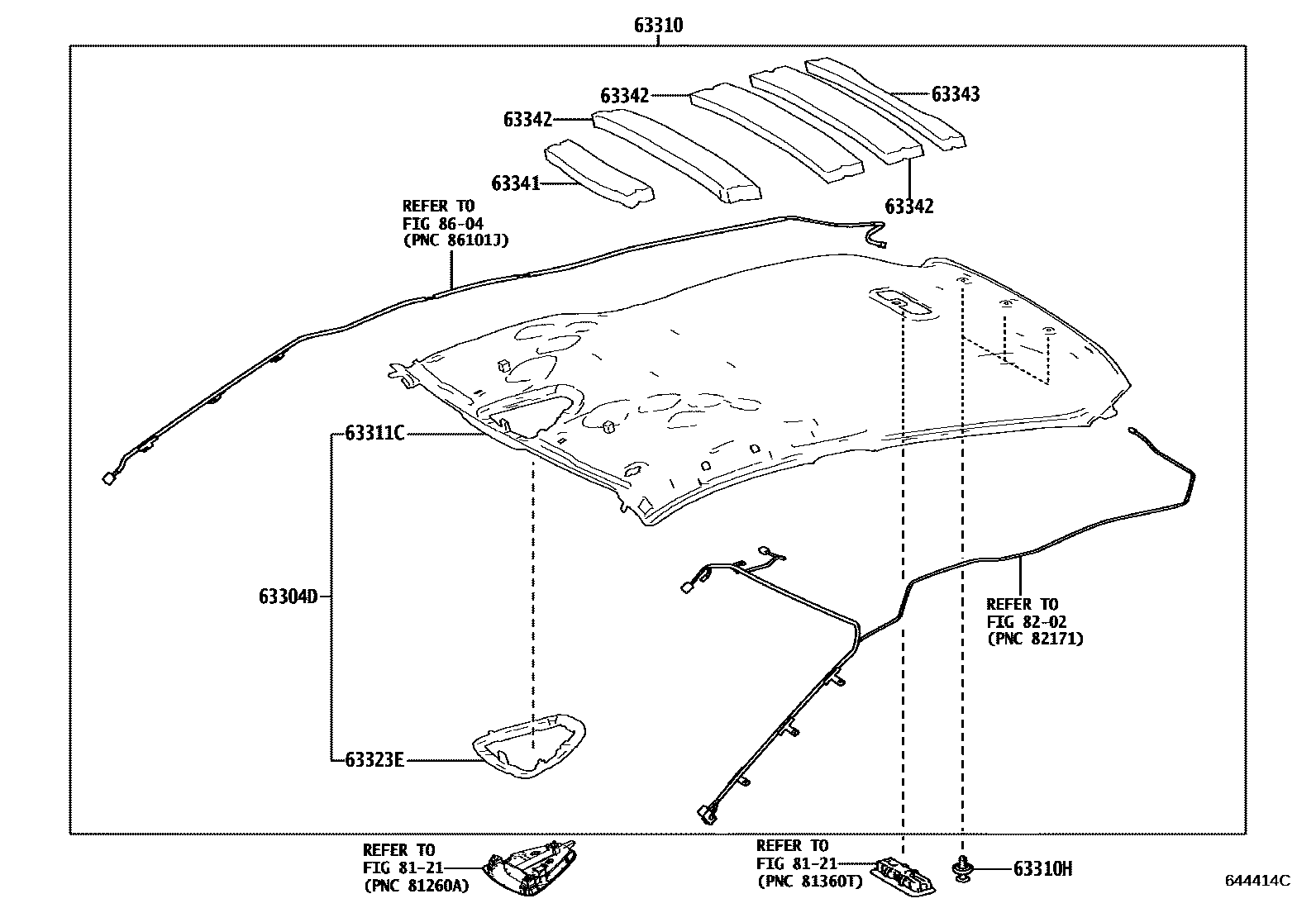

Parts diagram
63304DTRIM SUB-ASSY, ROOF HEADLINING
main63304-F4010-A0i201905-202106
MOON ROOF-WITHOUT,FROMAGE,TRIM21
main63304-F4010-A0i201905-202106
FROMAGE,TRIM21
main63304-F4010-B0i202106
LT. GRAY,TRIM2#
main63304-F4010-C1i201808-201905
MOON ROOF-WITHOUT,BLACK,TRIM2#
main63304-F4010-C1i201808-201905
BLACK,TRIM2#
main63304-F4010-C1i201905-202106
BLACK,TRIM20
main63304-F4010-C1i201905-202106
MOON ROOF-WITHOUT,BLACK,TRIM20
main63304-F4021-A0i201905-202106
FROMAGE,TRIM21
main63304-F4021-A0i201911
FROMAGE,TRIM21
main63304-F4021-B0i202106
LT. GRAY,TRIM2#
main63304-F4021-C1i201811-201905
BLACK,TRIM2#
main63304-F4021-C1i201905-202106
BLACK,TRIM20
main63304-F4021-C1i201911
BLACK,TRIM20
main63304-F4031-A0i201905-201911
FROMAGE,TRIM21
main63304-F4031-B0i202106
LT. GRAY,TRIM2#
main63304-F4031-C1i201905-201911
BLACK,TRIM20
main63304-F4031-C1i201811-201905
BLACK,TRIM2#
63310HEADLINING ASSY, ROOF
main63310-F4040-A0i201905-202106
FROMAGE,TRIM21
main63310-F4040-C1i201905-202106
BLACK,TRIM20
main63310-F4040-C1i201808-201905
BLACK,TRIM2#
main63310-F4051-A0i201911
FROMAGE,TRIM21
main63310-F4051-A0i201905-202106
FROMAGE,TRIM21
main63310-F4051-C1i201905-202106
BLACK,TRIM20
main63310-F4051-C1i201811-201905
BLACK,TRIM2#
main63310-F4051-C1i201911
BLACK,TRIM20
main63310-F4061-A0i201905-201911
FROMAGE,TRIM21
main63310-F4061-C1i201811-201905
BLACK,TRIM2#
main63310-F4061-C1i201905-201911
BLACK,TRIM20
main63310-F4140-B0i202106
LT. GRAY,TRIM2#
main63310-F4150-B0i202106-202303
LT. GRAY,TRIM2#
main63310-F4151-B0i202303
LT. GRAY,TRIM2#
main63310-F4160-B0i202106-202303
LT. GRAY,TRIM2#
main63310-F4161-B0i202303
LT. GRAY,TRIM2#
63310HCLIP(FOR ROOF HEADLINING)
main63399-10010-B0i202106
LT.GRAY,TRIM2#
main90467-07215i¥80201811-202106
main90467-07215i¥80201808-202106
main90467-07215i¥80201811
63311CHEADLINING, ROOF
main63311-F4110-A0i201905-202106
FROMAGE,TRIM21
main63311-F4110-A0i201905-202106
MOON ROOF-WITHOUT,FROMAGE,TRIM21
main63311-F4110-B0i202106
LT. GRAY,TRIM2#
main63311-F4110-C1i201808-201905
BLACK,TRIM2#
main63311-F4110-C1i201808-201905
MOON ROOF-WITHOUT,BLACK,TRIM2#
main63311-F4110-C1i201905-202106
BLACK,TRIM20
main63311-F4110-C1i201905-202106
MOON ROOF-WITHOUT,BLACK,TRIM20
main63311-F4121-A0i201905-202106
FROMAGE,TRIM21
main63311-F4121-A0i201911
FROMAGE,TRIM21
main63311-F4121-B0i202106
LT. GRAY,TRIM2#
main63311-F4121-C1i201905-202106
BLACK,TRIM20
main63311-F4121-C1i201811-201905
BLACK,TRIM2#
main63311-F4121-C1i201911
BLACK,TRIM20
main63311-F4131-A0i201905-201911
FROMAGE,TRIM21
main63311-F4131-B0i202106
LT. GRAY,TRIM2#
main63311-F4131-C1i201905-201911
BLACK,TRIM20
main63311-F4131-C1i201811-201905
BLACK,TRIM2#
63323ECASE, HEADLINING LAMP
main63323-F4040i202106
main63323-F4040i201808-202106
MOON ROOF-WITHOUT
main63323-F4060i201811
main63323-F4060i201811-202106
main63323-F4060i202106
63341PAD, ROOF SILENCER, NO.1
main63341-F4100i201808-202106
MOON ROOF-WITHOUT
main63341-F4100i202106
63342PAD, ROOF SILENCER, NO.2
main63341-F4110i201808-202106
MOON ROOF-WITHOUT
main63341-F4110i202106
63343PAD, ROOF SILENCER, NO.3
main63341-F4120i201808-202106
MOON ROOF-WITHOUT
main63341-F4120i202106
8121
8202
8604

11 parts on this diagram · 3 diagrams in section
