Toyota C-HR(CHINA) — METER

0001 1 0002 1

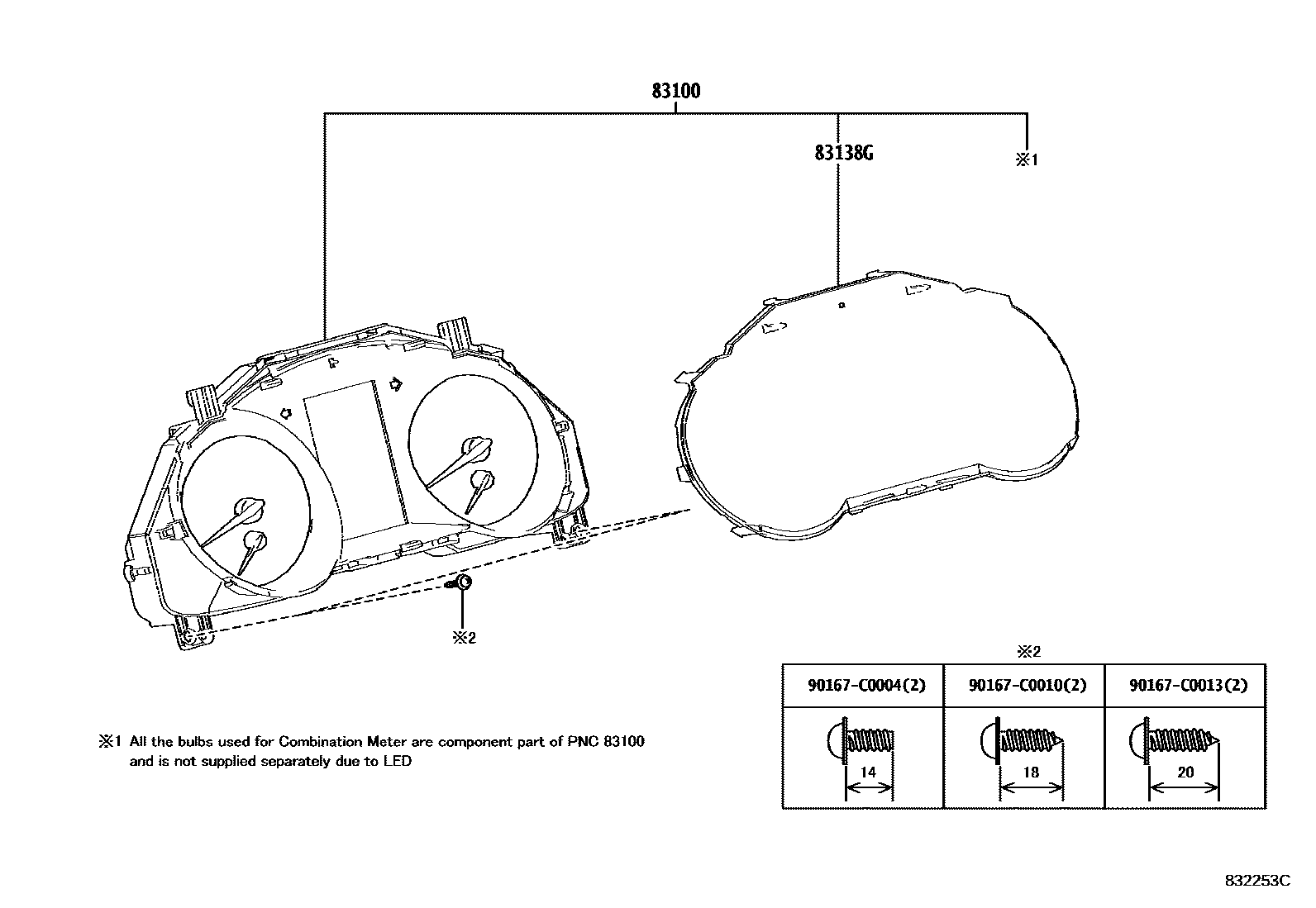

83100METER ASSY, COMBINATION

main83800-F4400iMAXA10..D,N201808-201911

DENSO

main83800-F4401iMAXA10..D,N201911-202106

DENSO

main83800-F4410iMAXA10..E,G201808-201911

DENSO

main83800-F4411iMAXA10..G201911-202106

DENSO

main83800-F4C40iMAXA10..G202106-202303

DENSO

main83800-F4C50iMAXA10..D,N202106-202303

DENSO

main83800-F4C60iMAXH10..E,G202106-202111

DENSO

sub83800-F4C61

main83800-F4C61iMAXH10..E,G202112-202303

DENSO

main83800-F4C70iMAXH10..N202106-202111

DENSO

sub83800-F4C71

main83800-F4C71iMAXH10..N202112-202303

DENSO

main83800-F4E60iMAXA10..G202303-202307

DENSO

sub83800-F4E61

main83800-F4E61iMAXA10..G202308

DENSO

main83800-F4E70iMAXA10..D,N202303-202307

DENSO

sub83800-F4E71

main83800-F4E71iMAXA10..D,N202308

DENSO

main83800-F4E80iMAXH10..E,G202303-202307

DENSO

sub83800-F4E81

main83800-F4E81iMAXH10..E,G202308

DENSO

main83800-F4E90iMAXH10..N202303-202307

DENSO

sub83800-F4E91

main83800-F4E91iMAXH10..N202308

DENSO

83138GGLASS, COMBINATION METER

main83852-F4380iMAXA10..D,G,N201808-202303

main83852-F4710iMAXH10202106

90167C0004

main90167-C0004

90167C0010

main90167-C0010

90167C0013

main90167-C0013

5 parts on this diagram · 2 diagrams in section
