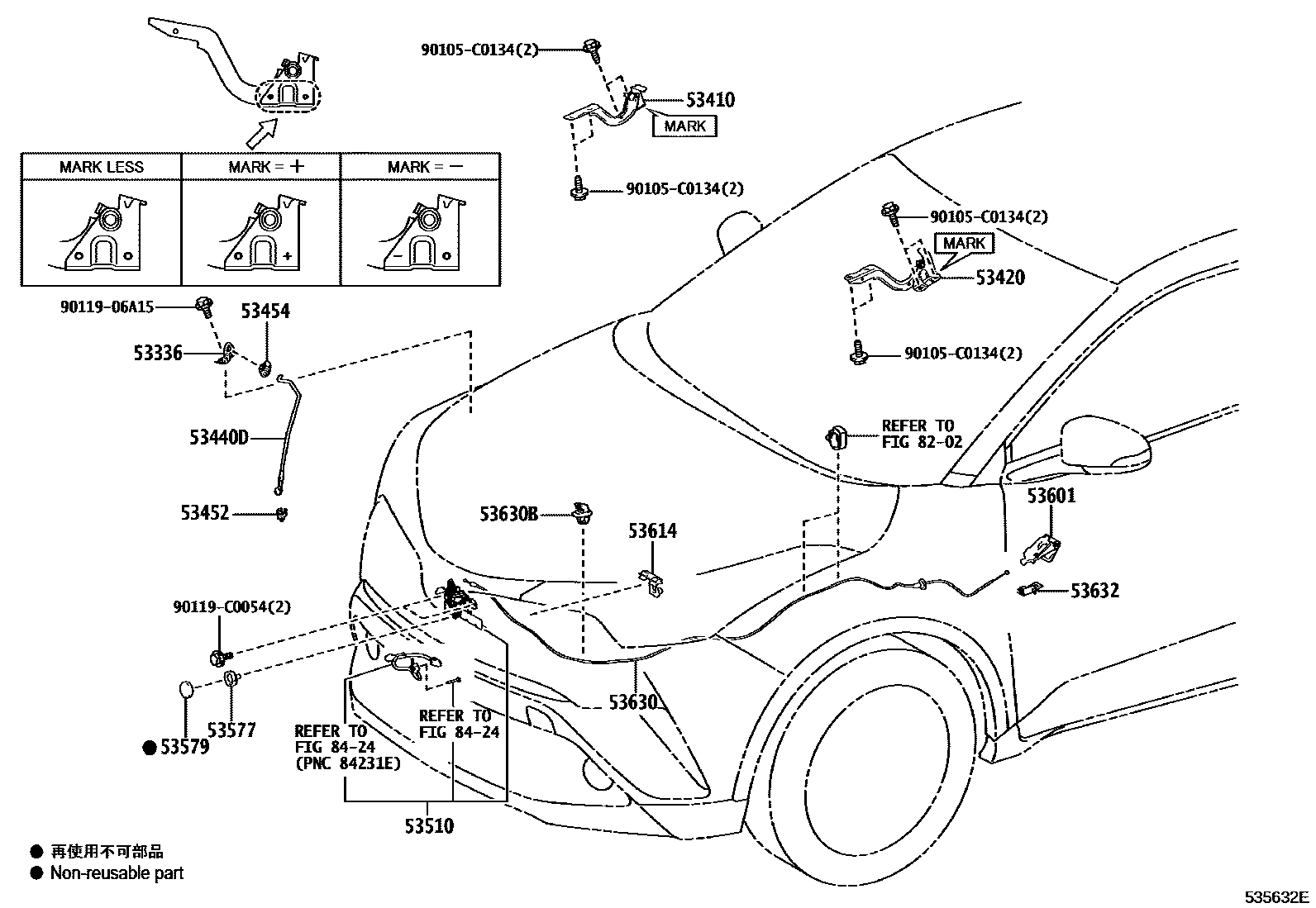

Toyota C-HR(CHINA) — HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-F4030iMAXH10;MAXA10..D,G,N201808-202106

53410HINGE ASSY, HOOD, RH

main53410-F4100iMAXA10..E201808-202106

MARK LESS

main53410-F4110iMAXA10..D,G,N201808-202106

MARK = +

main53410-F4120iMAXA10..E201808-202106

MARK = -

53420HINGE ASSY, HOOD, LH

main53420-F4100iMAXA10..E201808-202106

MARK LESS

main53420-F4110iMAXA10..D,G,N201808-202106

MARK = +

main53420-F4120iMAXA10..D,G,N201808-202106

MARK = -

53440DSUPPORT ASSY, HOOD

main53440-F4030iMAXA10..D,G,N201808-202106

53452HOLDER, HOOD STAY

main53452-F4040iMAXA10..D,G,N201808-202106

53454CLIP, HOOD SUPPORT ROD

main53454-02040iMAXA10..D,G,N201808-202106

(L)

main53454-12030iMAXH10;MAXA10..D,G,N¥100201808-202106

(J)

53510LOCK ASSY, HOOD

main53510-F4080iMAXH10202106-202303

MARK LS

main53510-F4080iMAXA10..E201808-202106

main53510-F4140iMAXA10..D,G,N202303

MARK QS

53577BOLT, HOOD LOCK

main53577-33010iMAXA10..E¥230201808-202303

53579CAP, HOOD LOCK NUT

main53579-0E020iMAXA10..E201902-202106

(L)

main53579-50010iMAXH10;MAXA10..D,G,N¥100201902-202106

(J)

main53579-50010iMAXA10¥100201808-201902

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D060-C1iMAXA10201808-202003

BLACK,TRIM2#

main53601-0D061-C1iMAXA10..D,G,N202003-202106

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-F4040iMAXA10..D,G,N201808-202106

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-F4050iMAXA10201808-202003

main53630-F4051iMAXA10..D,G,N202003-202106

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0008iMAXA10..D,G,N201808-202106

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iMAXA10¥200201808-202003

8202

8424

90105C0134

main90105-C0134

9011906A15

main90119-06A15¥60

90119C0054

main90119-C0054

19 parts on this diagram · 2 diagrams in section
