Toyota C-HR(CHINA) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

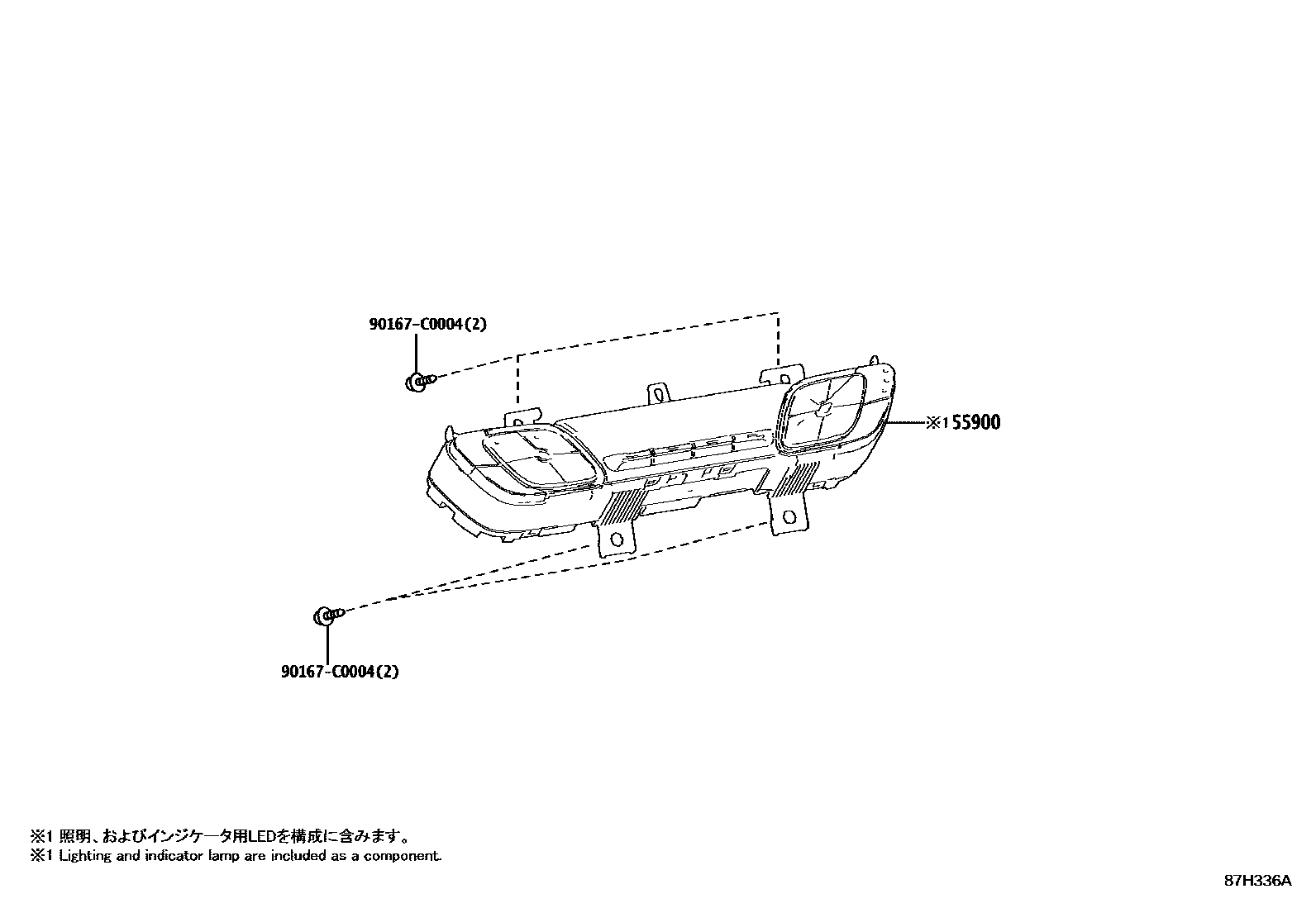

55900CONTROL ASSY, AIR CONDITIONER

main55900-F4260iMAXA10..D,N201808-202106

main55900-F4270iMAXA10..G201808-202106

main55900-F4280iMAXA10..E201808

main55900-F4550iMAXA10..G202106-202303

main55900-F4550iMAXA10..D,N202106

main55900-F4560iMAXH10..G202106-202303

main55900-F4560iMAXH10..N202106

main55900-F4570iMAXH10..E202106

main55900-F4570iMAXH10..G202303

main55900-F4660iMAXA10..G202303

90167C0004

main90167-C0004

2 parts on this diagram · 3 diagrams in section
