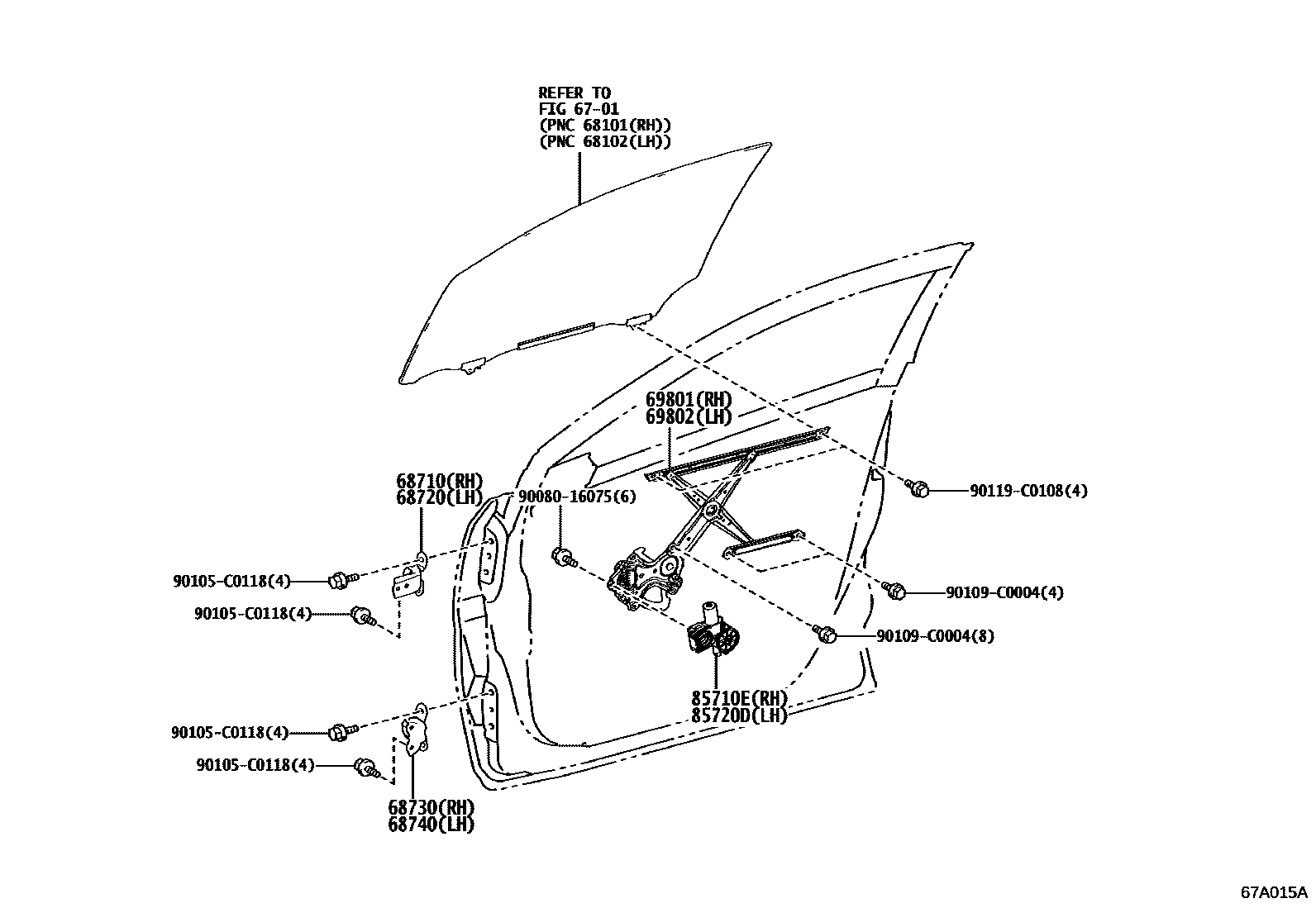

Toyota C-HR(CHINA) — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iMAXA10..D,G,N201808-202106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iMAXA10..D,G,N201808-202106

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iMAXA10..D,G,N201808-202106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iMAXA10..D,G,N201808-202106

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-F4050iMAXA10201808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-F4050iMAXA10201808

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-10110iMAXA10¥23,000201808-201911

main85710-F4090iMAXA10201912

main85710-F4110iMAXH10;MAXA10..D,G,N202106

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-10100iMAXA10¥23,000201808-201911

main85720-F4090iMAXA10201912

main85720-F4110iMAXH10;MAXA10..D,G,N202106

9008016075

main90080-16075

90105C0118

main90105-C0118

90109C0004

main90109-C0004

90119C0108

main90119-C0108

13 parts on this diagram · 1 diagram in section
