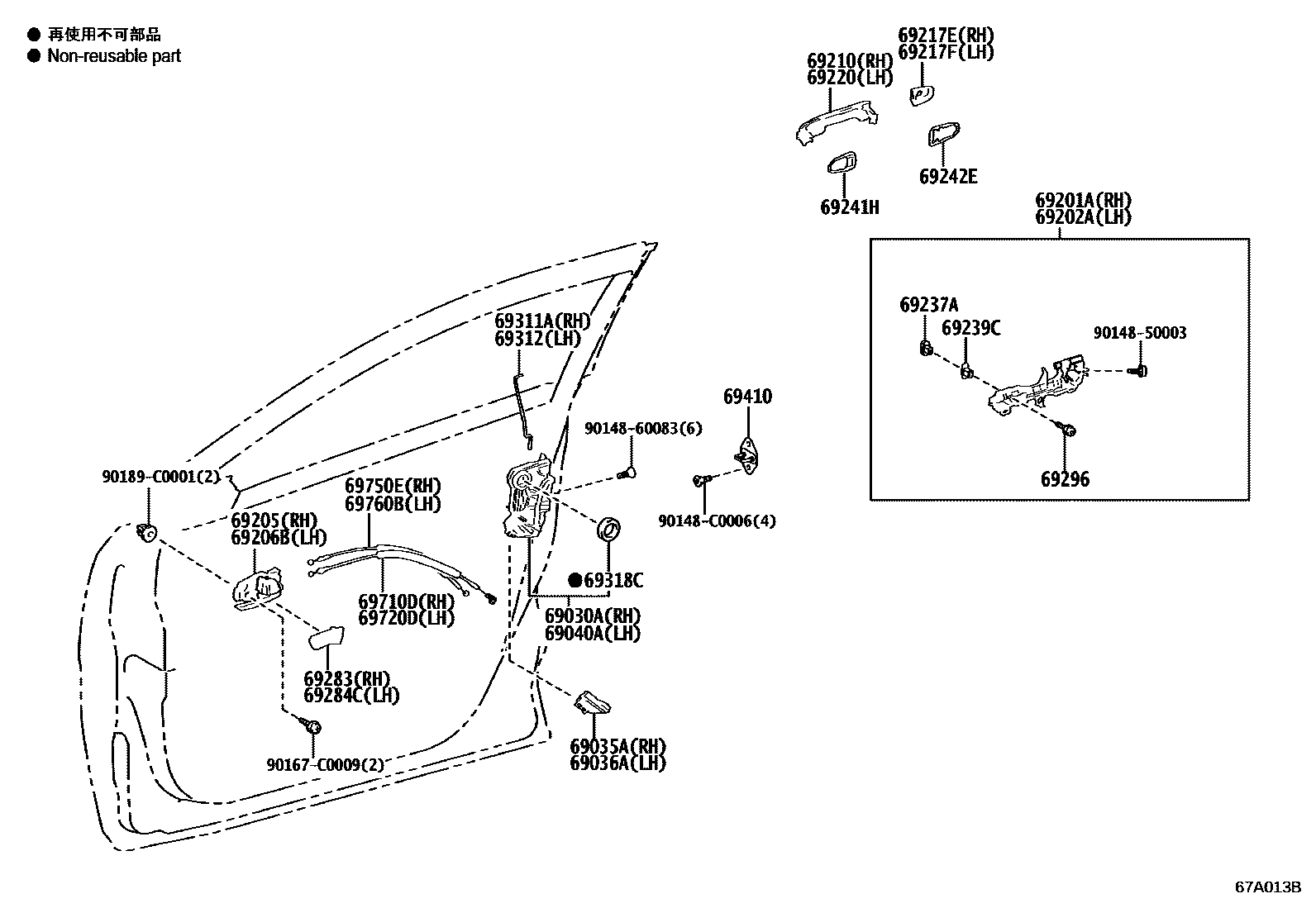

Toyota C-HR(CHINA) — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2NU ,3R3
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
RADIANT GREEN ME.,2NJ ,6W9
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2NU ,3R3
RED M.M.,2QK ,2QL ,3R3
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2NU ,3R3
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
RADIANT GREEN ME.,2NJ ,6W9
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2NU ,3R3
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
RADIANT GREEN ME.,2NJ ,6W9
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2QK ,2QL ,3R3
RED M.M.,2NU ,3R3
RED M.M.,2QK ,2QL ,3R3
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
RADIANT GREEN ME.,2NJ ,6W9
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2NU ,3R3
RED M.M.,2QK ,2QL ,3R3
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
90148C0006
main90148-C0006
90167C0009
main90167-C0009
90189C0001
main90189-C0001
32 parts on this diagram · 2 diagrams in section
