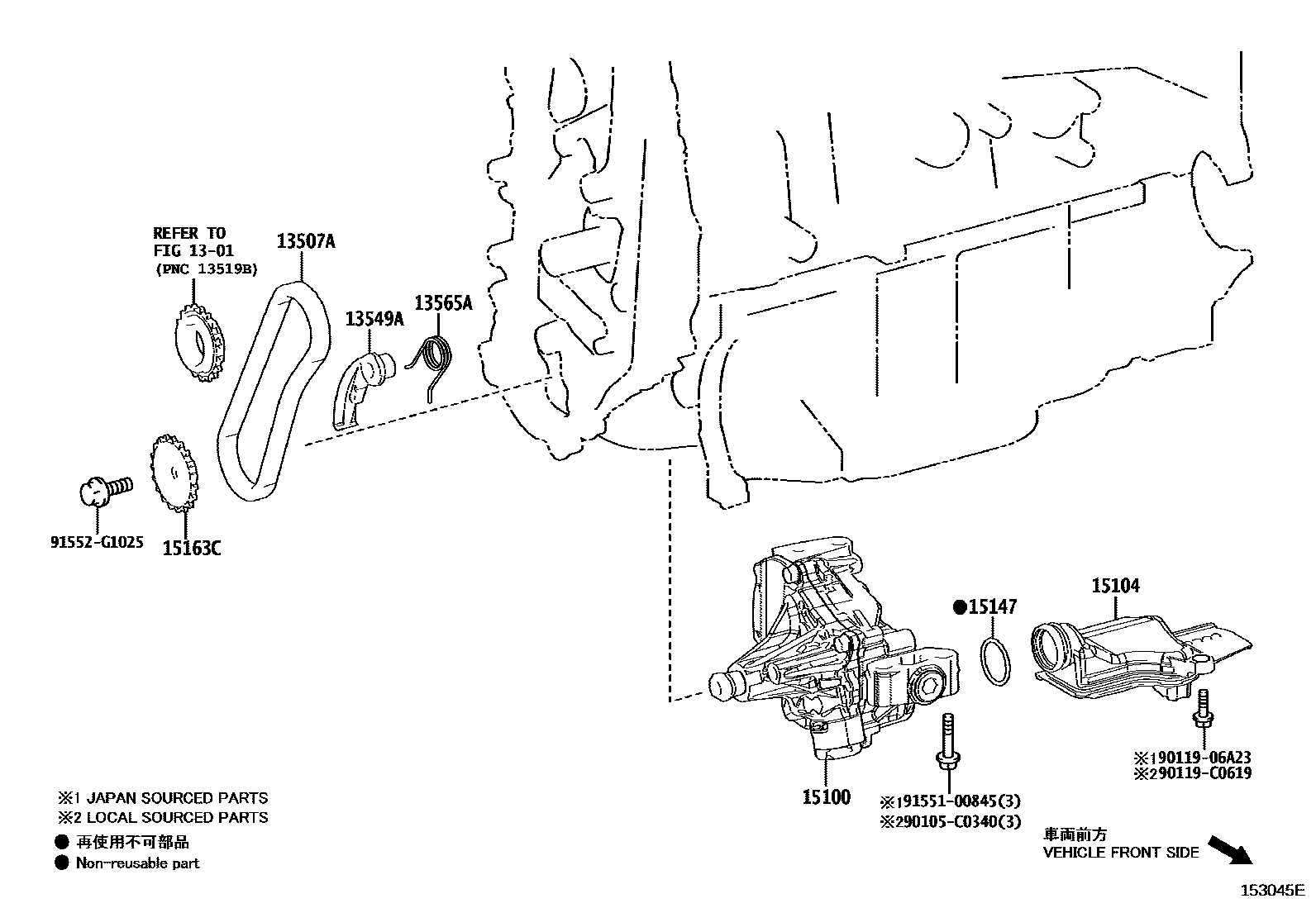

Toyota C-HR(CHINA) — ENGINE OIL PUMP

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24010iM20..MAXA10201808-201810

*132

sub13507-24020¥4,150

main13507-24020iM20..MAXA10¥4,150201810-201908

*132

main13507-F2020iM20..MAXA10201908

*600

main13507-F2020iM20..MAXH10;M20..MAXA10..D,G,N202106

13549APLATE, CHAIN TENSIONER

main13549-25020iM20..MAXA10¥550201808-201908

*132

main13549-F2020iM20..MAXA10201908

*600

main13549-F2020iM20..MAXH10;M20..MAXA10..D,G,N202106

13565ASPRING, CHAIN DAMPER

main13565-25010iM20..MAXA10¥220201808-201908

*132

main13565-F2020iM20..MAXA10201908

*600

main13565-F2020iM20..MAXH10;M20..MAXA10..D,G,N202106

15100PUMP ASSY, OIL

main15100-24020iM20..MAXA10¥11,800201808-201908

*132

main15100-F2030iM20..MAXA10201908

*600

main15100-F2030iM20..MAXH10;M20..MAXA10..D,G,N202106

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20..MAXA10¥1,200201808-201908

*132

main15104-F2050iM20..MAXA10201908

*600

main15104-F2050iM20..MAXH10;M20..MAXA10..D,G,N202106

15147GASKET, OIL STRAINER

main15147-25010iM20..MAXA10¥340201808-201908

*132

main15147-F2010iM20..MAXA10201908

*600

main15147-F2010iM20..MAXH10;M20..MAXA10..D,G,N202106

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20..MAXA10¥660201808-201908

*132

main15163-F2020iM20..MAXA10201908

*600

main15163-F2020iM20..MAXH10;M20..MAXA10..D,G,N202106

90105C0340

main90105-C0340

9011906A23

main90119-06A23¥60

90119C0619

main90119-C0619

9155100845

main91551-00845¥100

91552G1025

main91552-G1025¥170

13 parts on this diagram · 1 diagram in section
