Toyota C-HR(CHINA) — ECO-RUN SYSTEM

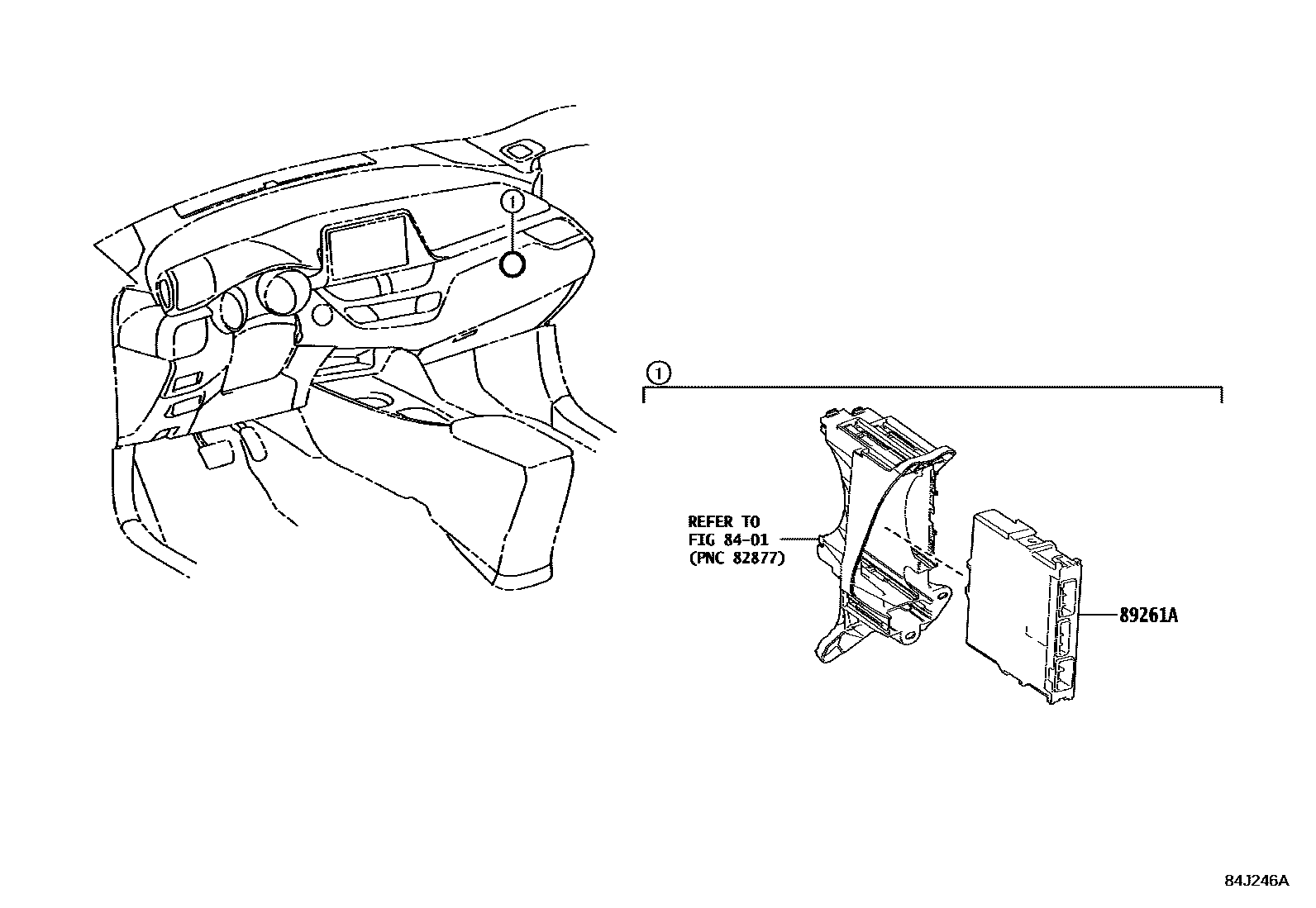

Parts diagram

8401

89261ACOMPUTER, ENGINE STOP AND START

main89261-F4020i201808-202106

main89261-F4040i202106-202303

main89261-F4060i202303

2 parts on this diagram · 1 diagram in section
