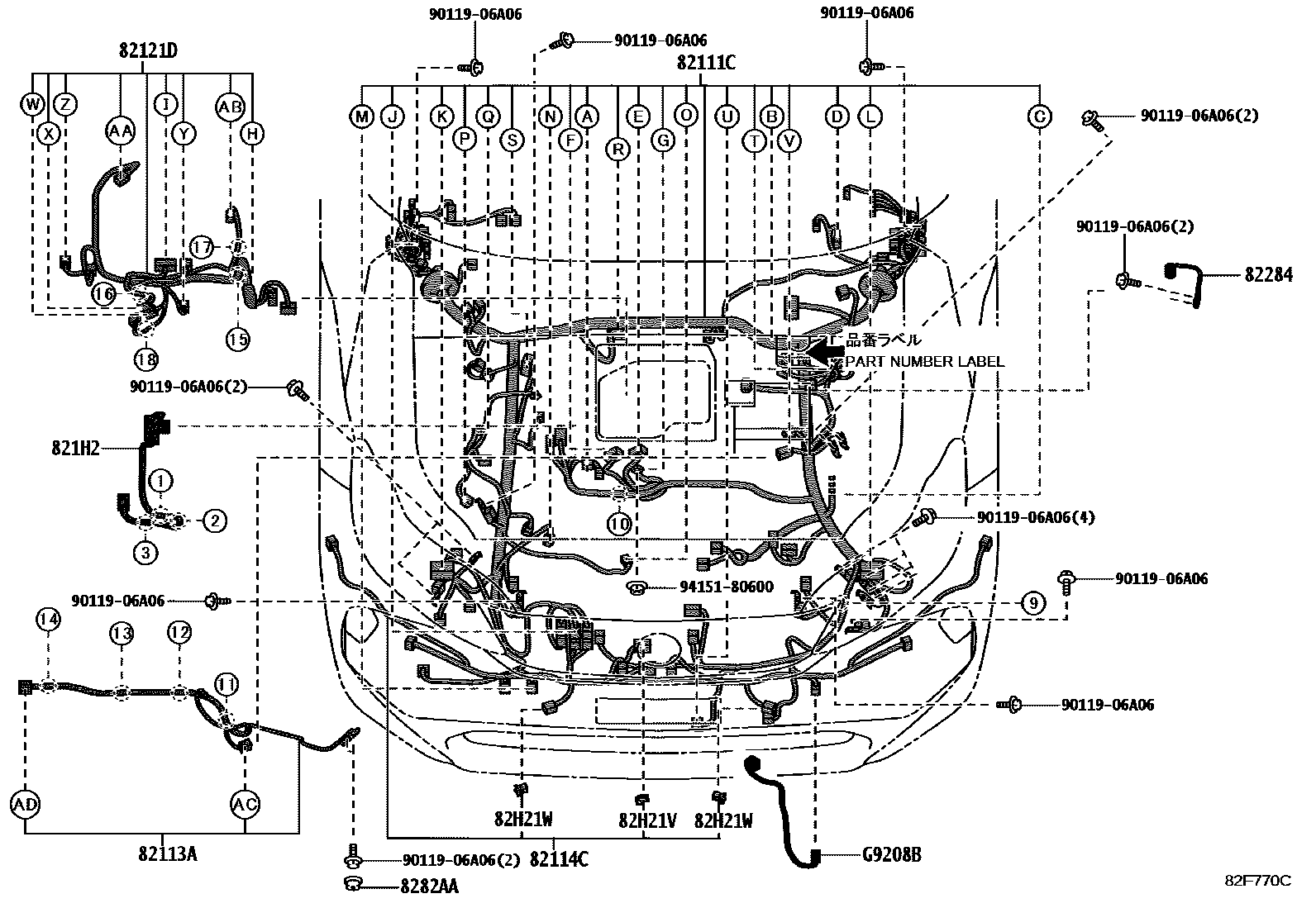

Toyota BZ4X — WIRING & CLAMP
82111CWIRE, FRONT COMPARTMENT, MAIN
P/N LABEL=8211542830
P/N LABEL=8211542831
P/N LABEL=8211542K90
P/N LABEL=8211542K91
P/N LABEL=8211542L10
P/N LABEL=8211542L11
P/N LABEL=8211542L20
TEC. PACKAGE&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),P/N LABEL=8211542L20
P/N LABEL=8211542L21
TEC. PACKAGE&ADVANCED PARK-WITH
82113AWIRE, FRONT COMPARTMENT, NO.3
82114CWIRE, FRONT COMPARTMENT, NO.4
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH
82121DWIRE, MOTOR
821H2WIRE, HV AIR CONDITIONER
82284WIRE, EARTH
8282AACAP, EARTH BOLT, NO.2
82H21VCOVER, CONNECTOR
82H21WCOVER, CONNECTOR
G9208BWIRE SUB-ASSY, INVERTER
9011906A06
9415180600
12 parts on this diagram · 11 diagrams in section
