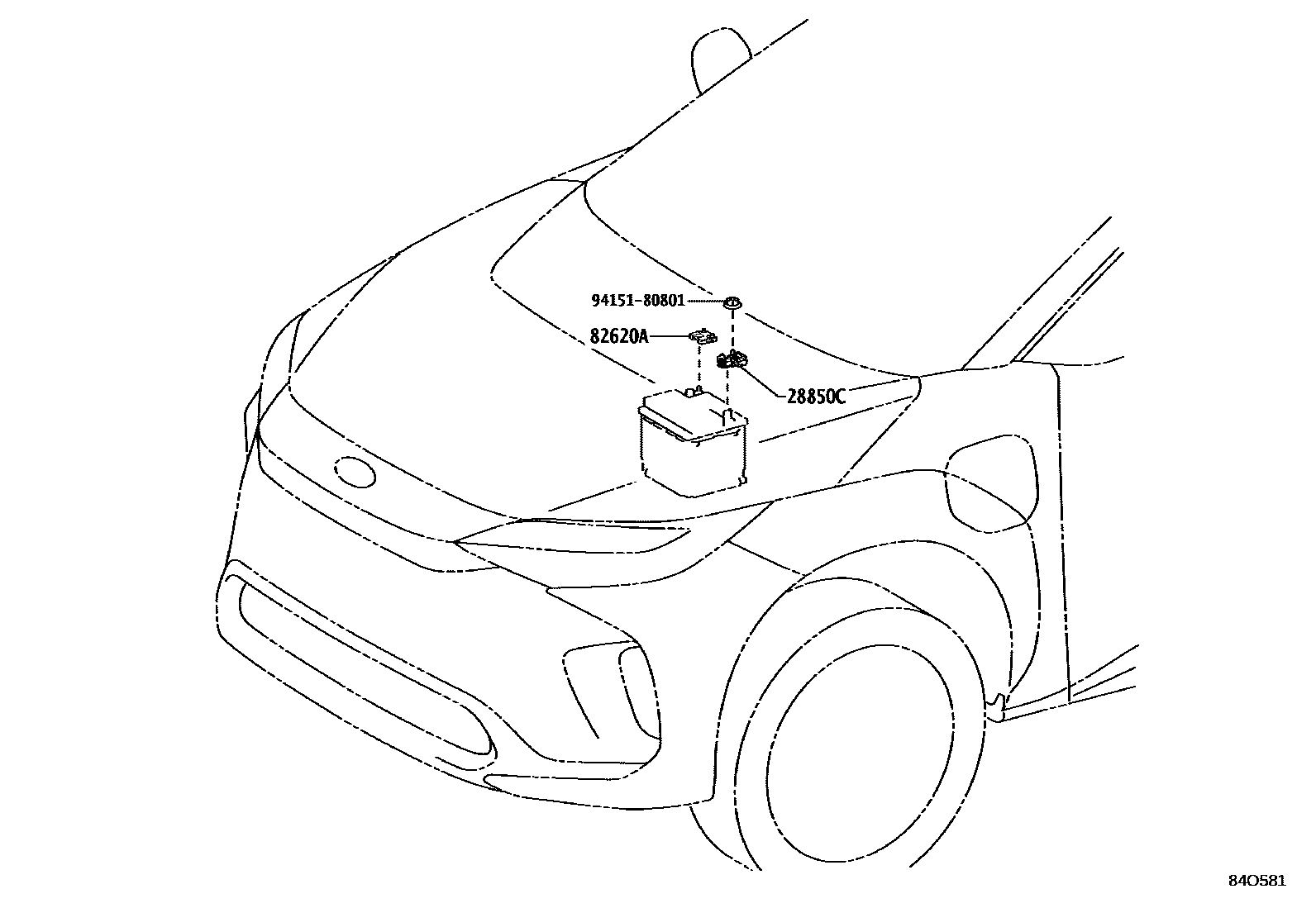

28850CSENSOR ASSY, BATTERY STATE

main28850-K0010iEM..XEAM10,YEAM15¥7,400202412

main28850-K0010iEM..XEAM10,YEAM15¥7,400202203-202411

82620ABLOCK ASSY, FUSIBLE LINK

main82620-42070iXEAM10,YEAM15¥990202412

main82620-42070iXEAM10,YEAM15¥990202203-202411

9415180801

main94151-80801¥80

3 parts on this diagram · 10 diagrams in section
