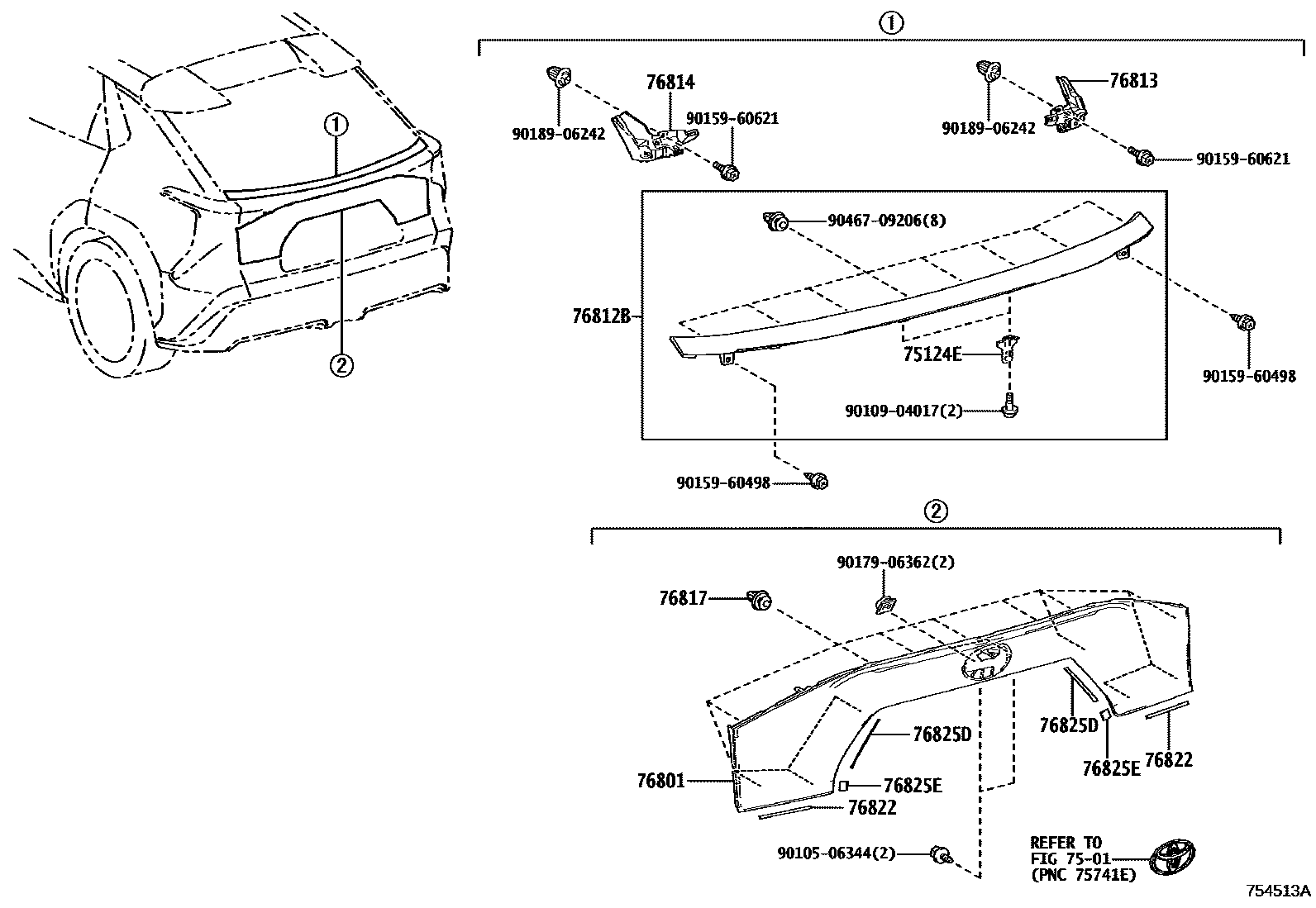

Toyota BZ4X — REAR MOULDING
7501
75124EBRACKET, REAR LICENSE RETANER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PAINT REQ.
PAINT REQ.
76812BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2
76813GARNISH, BACK DOOR OUTSIDE, UPPER RH
76814GARNISH, BACK DOOR OUTSIDE, UPPER LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
9010506344
9010904017
9015960498
9015960621
9017906362
9018906242
9046709206
17 parts on this diagram · 1 diagram in section
