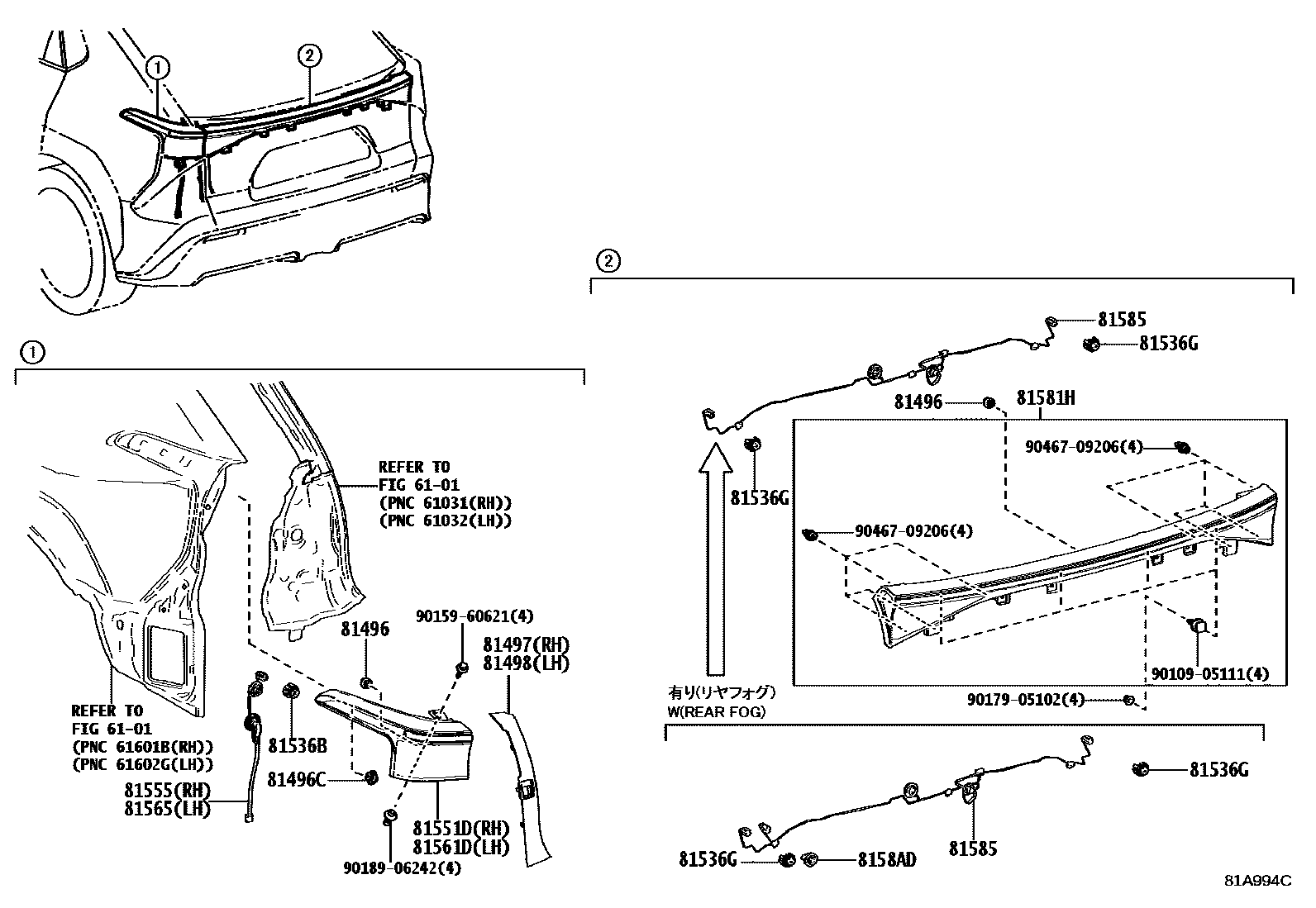

Toyota BZ4X — REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iXEAM10,YEAM15¥70202412

main81496-52020iXEAM10,YEAM15¥70202203-202411

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iXEAM10,YEAM15¥100202412

main81496-60010iXEAM10,YEAM15¥100202203-202411

81497COVER, REAR COMBINATION LAMP, RH

main81497-42020iXEAM10,YEAM15¥2,160202412

main81497-42020iXEAM10,YEAM15¥2,160202203-202411

81498COVER, REAR COMBINATION LAMP, LH

main81498-42020iXEAM10,YEAM15¥2,160202412

main81498-42020iXEAM10,YEAM15¥2,160202203-202411

81536BLED, REAR TURN SIGNAL LAMP

main81532-48010iXEAM10,YEAM15¥3,210202203-202308

main81965-42010iXEAM10,YEAM15¥3,210202412

main81965-42010iXEAM10,YEAM15¥3,210202308-202411

81536GLED, BACK-UP LAMP

main81542-48010iXEAM10,YEAM15¥3,210202412

main81542-48010iXEAM10,YEAM15¥3,210202203-202411

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-42290iXEAM10,YEAM15¥27,600202412

main81551-42290iXEAM10,YEAM15¥27,600202308-202411

main81551-42300iXEAM10,YEAM15202203-202308

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-42290iXEAM10,YEAM15¥1,270202412

main81555-42290iXEAM10,YEAM15¥1,270202203-202411

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-42300iXEAM10,YEAM15202412

main81561-42300iXEAM10,YEAM15202203-202411

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-42290iXEAM10,YEAM15¥1,270202412

main81555-42290iXEAM10,YEAM15¥1,270202203-202411

81581HLENS & BODY, REAR LAMP

main81581-42160iXEAM10,YEAM15¥41,700202412

main81581-42160iXEAM10,YEAM15¥41,700202203-202411

81585SOCKET & WIRE, REAR LAMP

main81585-42160iXEAM10,YEAM15¥1,940202412

main81585-42160iXEAM10,YEAM15¥1,940202203-202411

8158ADLED, REAR FOG LAMP

9010905111

main90109-05111¥60

9015960621

main90159-60621¥60

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

9046709206

main90467-09206¥80

19 parts on this diagram · 1 diagram in section
