Toyota BZ4X — METER

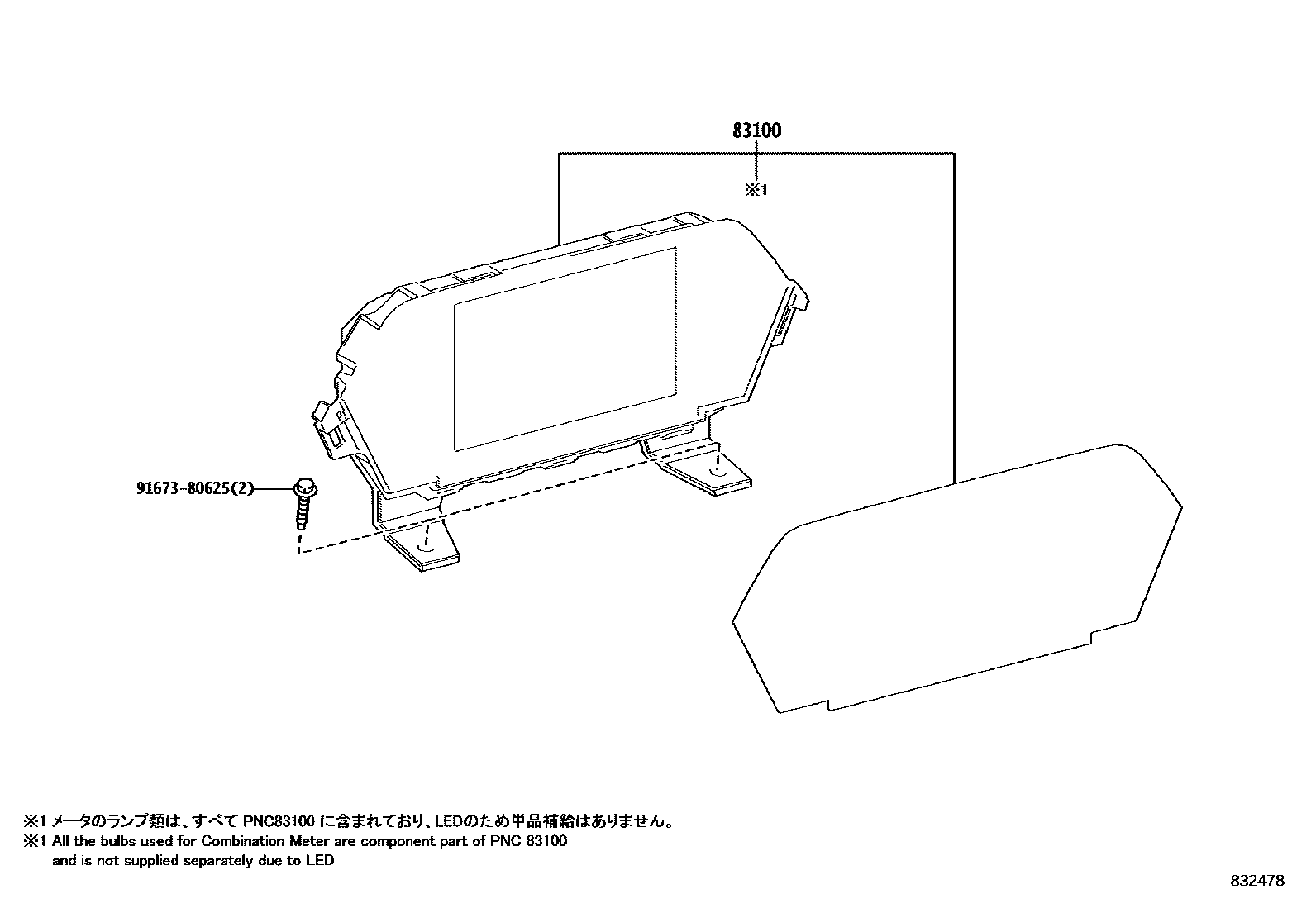

Parts diagram
83100METER ASSY, COMBINATION
main83800-42U50i202311-202411
DENSO,*614
main83800-42U70i202311-202411
DENSO,*614
main83800-42V40i202203-202301
DENSO,*614
sub83800-42V41
main83800-42V41i202302-202304
DENSO,*614
sub83800-42V42
main83800-42V42i202304-202308
DENSO
sub83800-42V43
main83800-42V43i202308-202311
DENSO
main83800-42V50i202203-202301
DENSO,*614
main83800-42V51i202302-202304
DENSO,*614
main83800-42V52i202304-202308
DENSO
main83800-42V53i202308-202311
DENSO
main83800-4A830i202412
DENSO,*614
main83800-4AP80i202412
DENSO,*614
9167380625
main91673-80625¥80

2 parts on this diagram · 1 diagram in section
