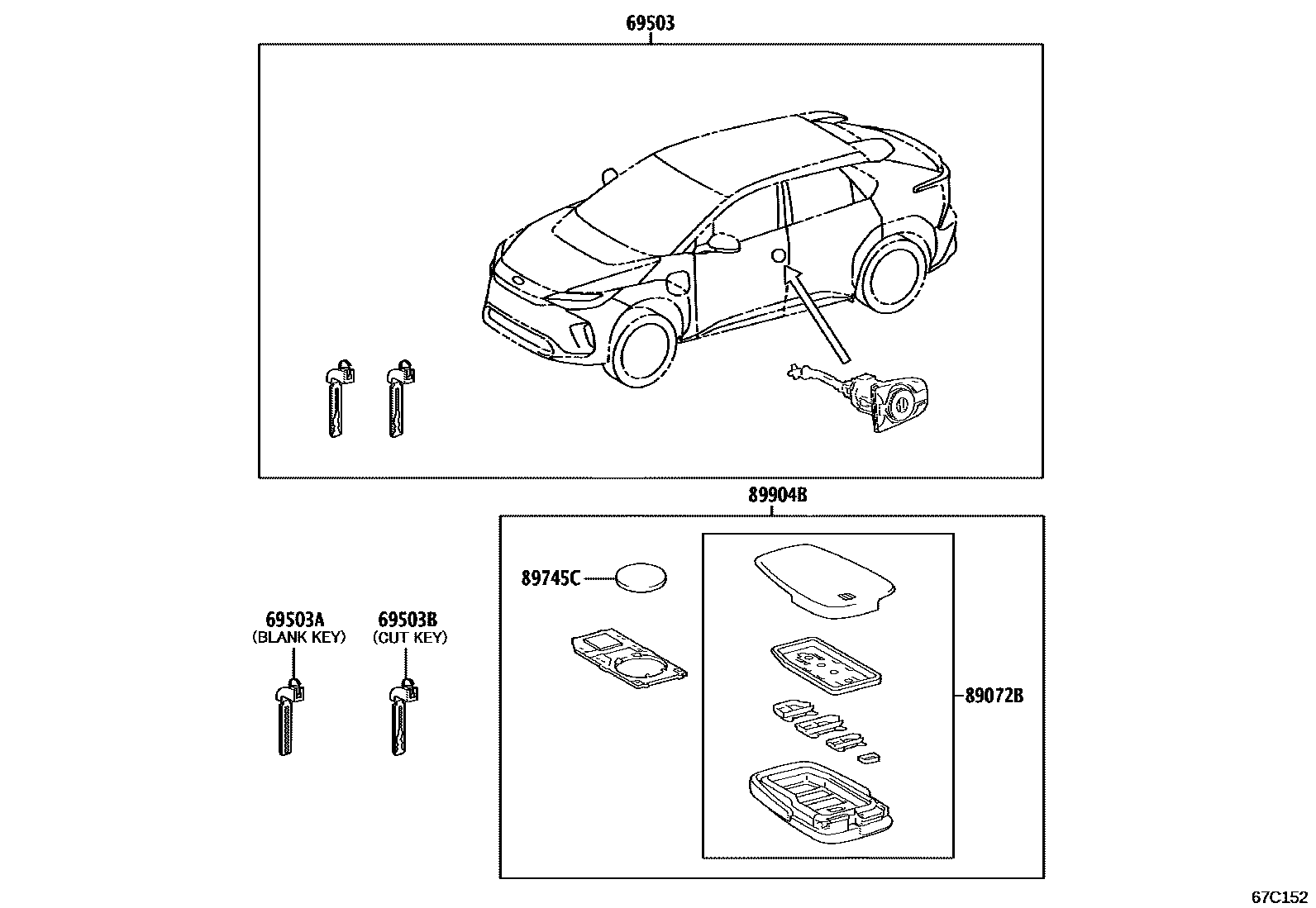

Toyota BZ4X — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-42A60iXEAM10,YEAM15¥7,500202203-202411

69503AKEY, BLANK

main69515-K0020iXEAM10,YEAM15¥6,500202203-202411

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iXEAM10,YEAM15¥7,100202203-202411

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-42B40iXEAM10,YEAM15..M..USA202203-202411

main89072-42B50iXEAM10,YEAM15..M..USA202203-202411

89745CBATTERY, TRANSMITTER

main89745-K0010iXEAM10,YEAM15¥440202203-202411

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-42510iXEAM10..E;XEAM10,YEAM15..L..USA202203-202409

main8990H-42511iXEAM10..E;XEAM10,YEAM15..L..USA202410-202411

main8990H-42520iXEAM10,YEAM15..H..USA;XEAM10,YEAM15..(H,L,M)..CND202203-202409

main8990H-42521iXEAM10,YEAM15..H,M;XEAM10,YEAM15..L..CND202410-202411

6 parts on this diagram · 1 diagram in section
