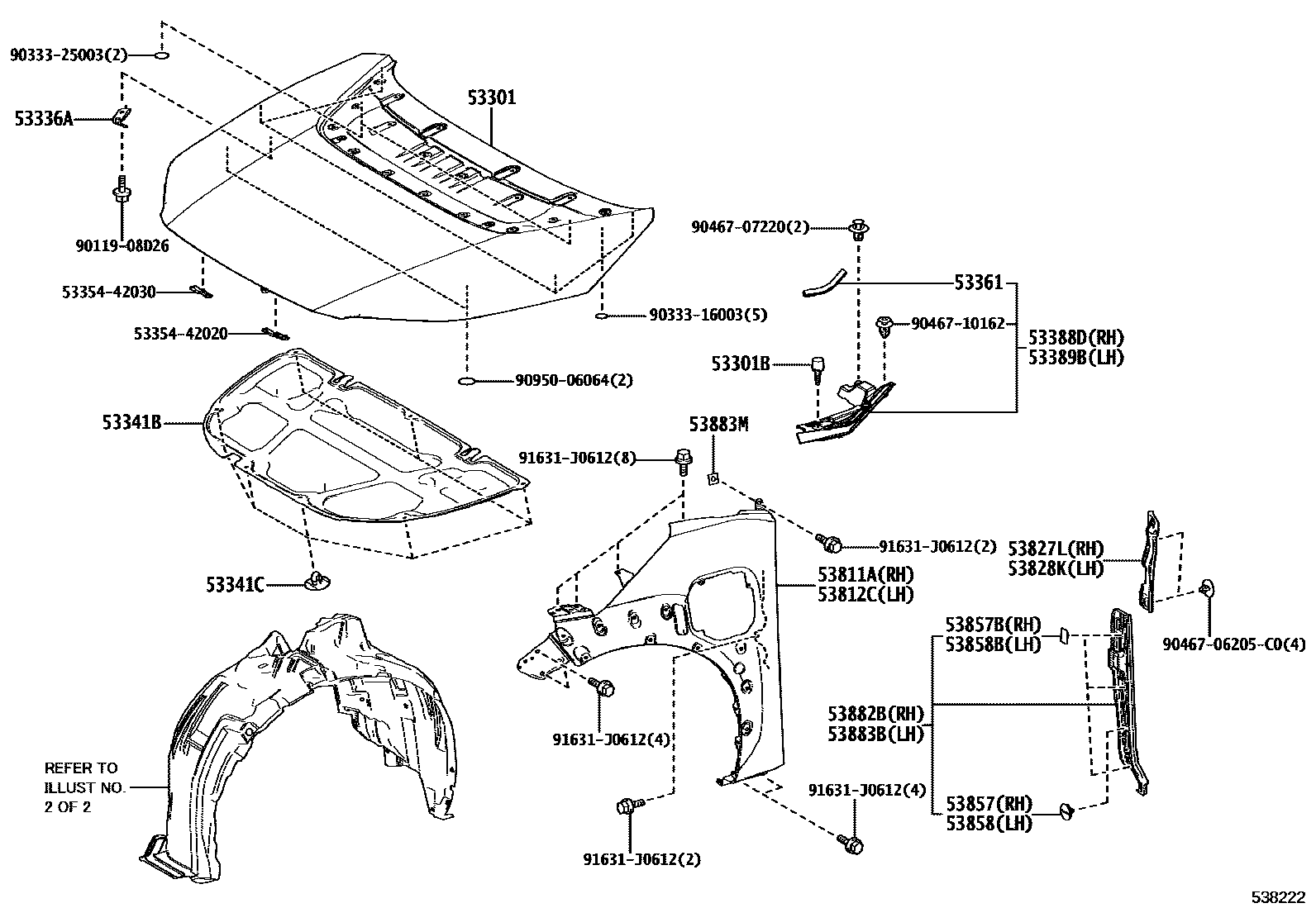

Toyota BZ4X — HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53361WEATHERSTRIP, HOOD
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53883MSEAL, FRONT FENDER
5335442020GUSSET, HOOD REINFORCEMENT, LH
5335442030GUSSET, HOOD REINFORCEMENT, LH
9011908D26
9033316003
9033325003
9046706205C0
main90467-06205C0
9046707220
9046710162
9095006064
91631J0612
29 parts on this diagram · 2 diagrams in section
