Toyota BZ4X — CAMERA & REAR MONITOR DISPLAY

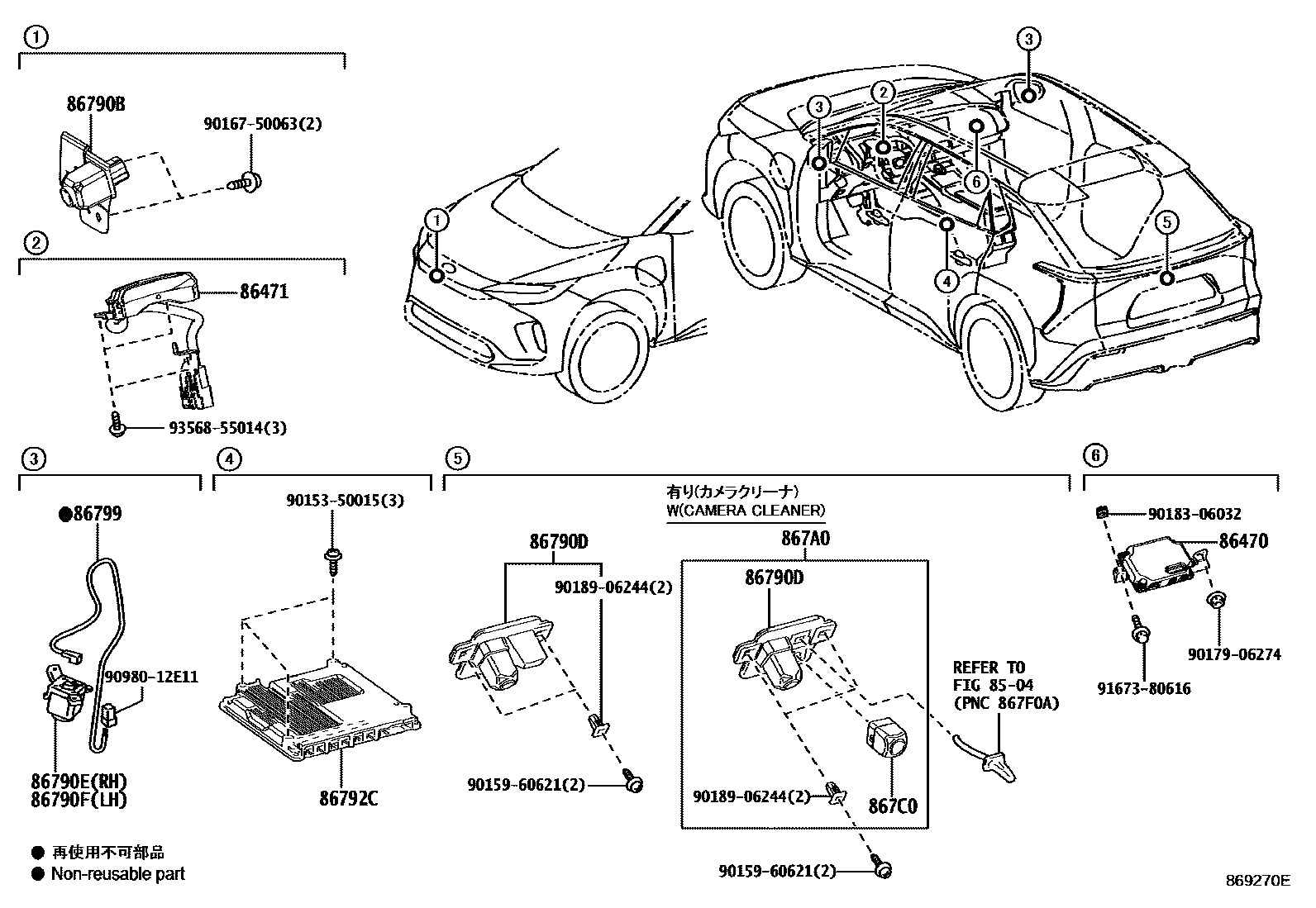

Parts diagram
8504
86470COMPUTER ASSY, DRIVER MONITOR
main86470-42030i¥25,500202412
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
main86470-42030i¥25,500202311-202411
BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)
86471CAMERA, DRIVER MONITOR
main86471-42010i¥17,600202412
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
main86471-42010i¥17,600202311-202411
BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)
86790BCAMERA ASSY, TELEVISION, FR
main86790-42190i¥34,000202203-202311
TEC. PACKAGE&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
main86790-42191i¥34,000202311-202410
TEC. PACKAGE&ADVANCED PARK-WITH
main86790-42192i¥30,900202412
TEC. PACKAGE&ADVANCED PARK-WITH
86790DCAMERA ASSY, TELEVISION, RR
main86790-42150i202203-202310
sub86790-42470
main86790-42160i¥34,100202203-202311
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
main86790-42161i¥30,900202311-202410
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH
main86790-42162i¥30,900202412
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH
main86790-42470i202311-202411
main86790-42470i202412
86790ECAMERA ASSY, TELEVISION, SIDE RH
main86795-42020i¥30,900202412
TEC. PACKAGE&ADVANCED PARK-WITH
main86795-42020i¥30,900202203-202311
TEC. PACKAGE&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
main86795-42021i¥34,000202311-202411
TEC. PACKAGE&ADVANCED PARK-WITH
86790FCAMERA ASSY, TELEVISION, SIDE LH
main86795-42010i¥30,900202412
TEC. PACKAGE&ADVANCED PARK-WITH
main86795-42010i¥30,900202203-202311
TEC. PACKAGE&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
main86795-42011i¥34,000202311-202411
TEC. PACKAGE&ADVANCED PARK-WITH
86792CCOMPUTER, PARKING ASSIST
main86792-42310i202203-202310
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
sub86792-42311
main86792-42311i202311-202411
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH
main86792-42810i202412
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH
86799WIRE, TELEVISION CAMERA
main86799-42040i¥540202412
TEC. PACKAGE&ADVANCED PARK-WITH
main86799-42040i¥540202203-202411
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
main867A0-42010¥66,600
main867A0-42011¥60,500
main867A0-42012
main867A0-42060
867C0CAMERA ASSY, INNER MIRROR
main867C0-42050¥36,300
9015350015
main90153-50015¥60
9015960621
main90159-60621¥60
9016750063
main90167-50063¥60
9017906274
main90179-06274¥70
9018306032
main90183-06032¥70
9018906244
main90189-06244¥100
9098012E11
main90980-12E11¥220
9167380616
main91673-80616¥60
9356855014
main93568-55014¥70

20 parts on this diagram · 1 diagram in section
