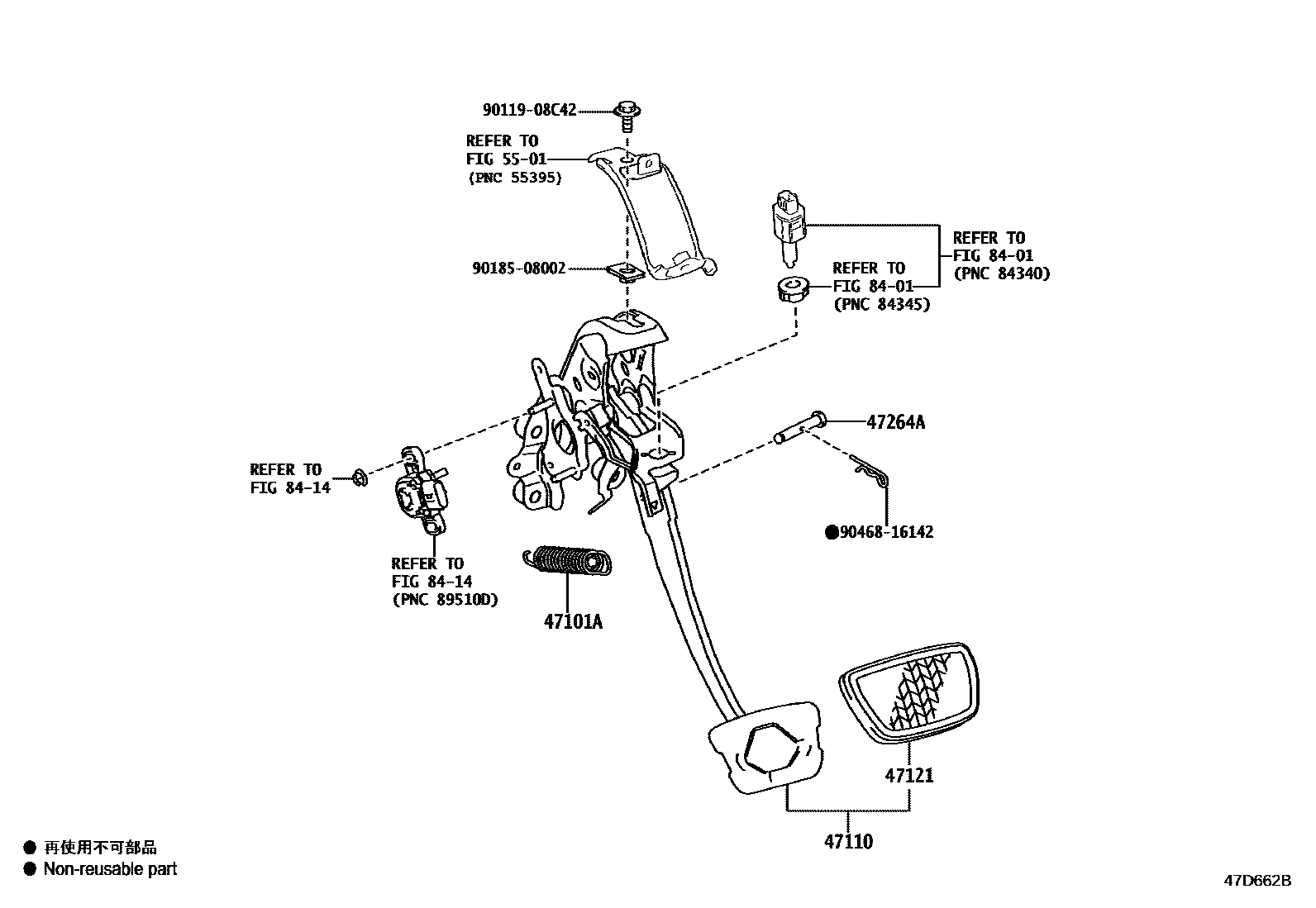

Toyota BZ4X — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17005iXEAM10,YEAM15¥180202203-202411

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42250iXEAM10,YEAM15¥6,800202203-202411

47121PAD, BRAKE PEDAL

main47121-62010iXEAM10,YEAM15¥520202203-202411

47264APIN(FOR PUSH ROD)

main90249-08221iXEAM10,YEAM15¥220202203-202411

5501

8401

8414

9011908C42

main90119-08C42¥80

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

10 parts on this diagram · 1 diagram in section
