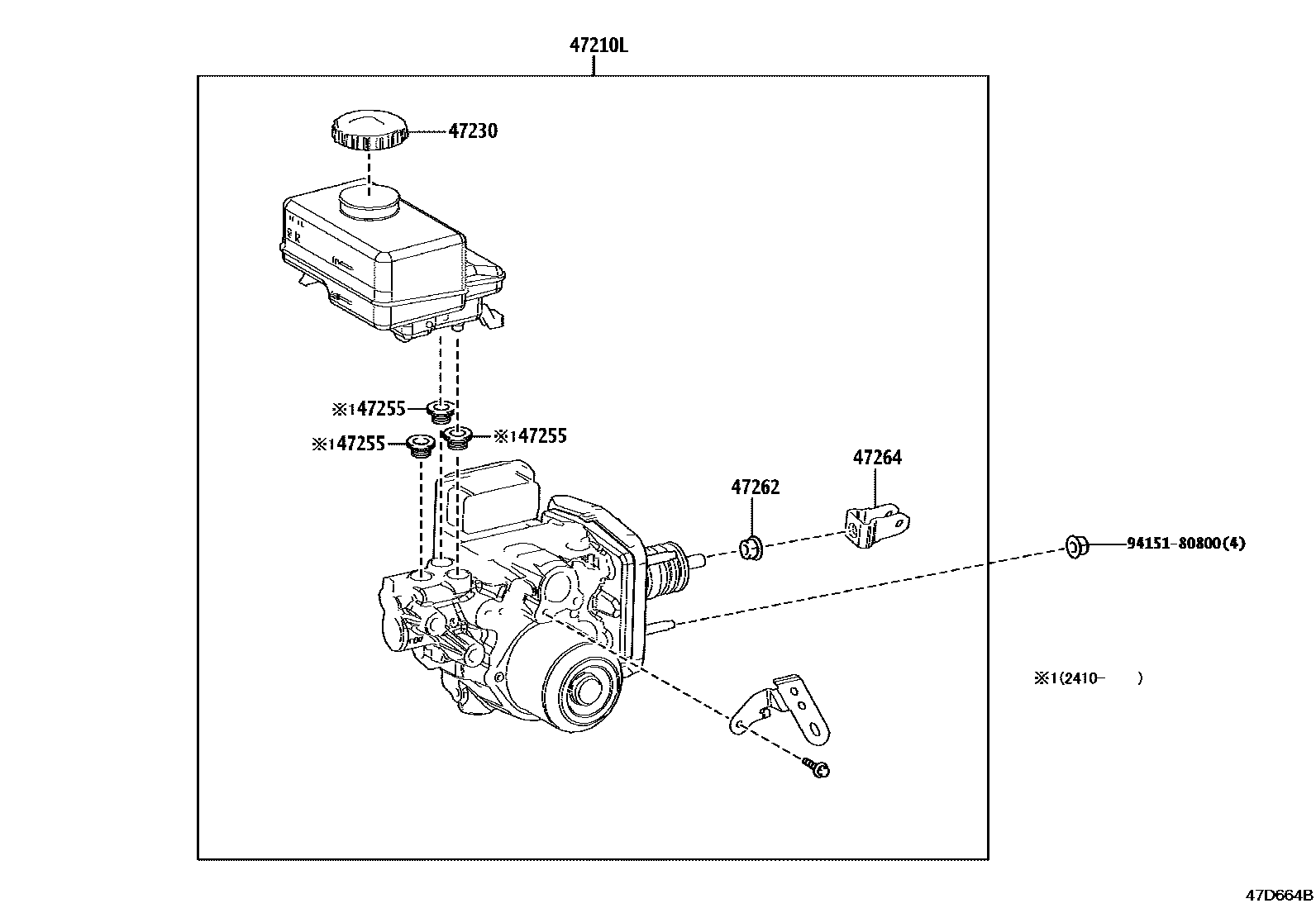

Toyota BZ4X — BRAKE MASTER CYLINDER

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-42290iXEAM10,YEAM15¥147,000202203-202311

main47050-42440iXEAM10,YEAM15¥147,000202311-202411

main47050-42630iXEAM10,YEAM15202412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iXEAM10,YEAM15¥770202203-202411

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iXEAM10,YEAM15¥360202412

47262NUT, MASTER CYLINDER PUSH ROD

main90179-10065iXEAM10,YEAM15¥90202203-202411

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42030iXEAM10,YEAM15¥320202203-202411

9415180800

main94151-80800¥80

6 parts on this diagram · 1 diagram in section
