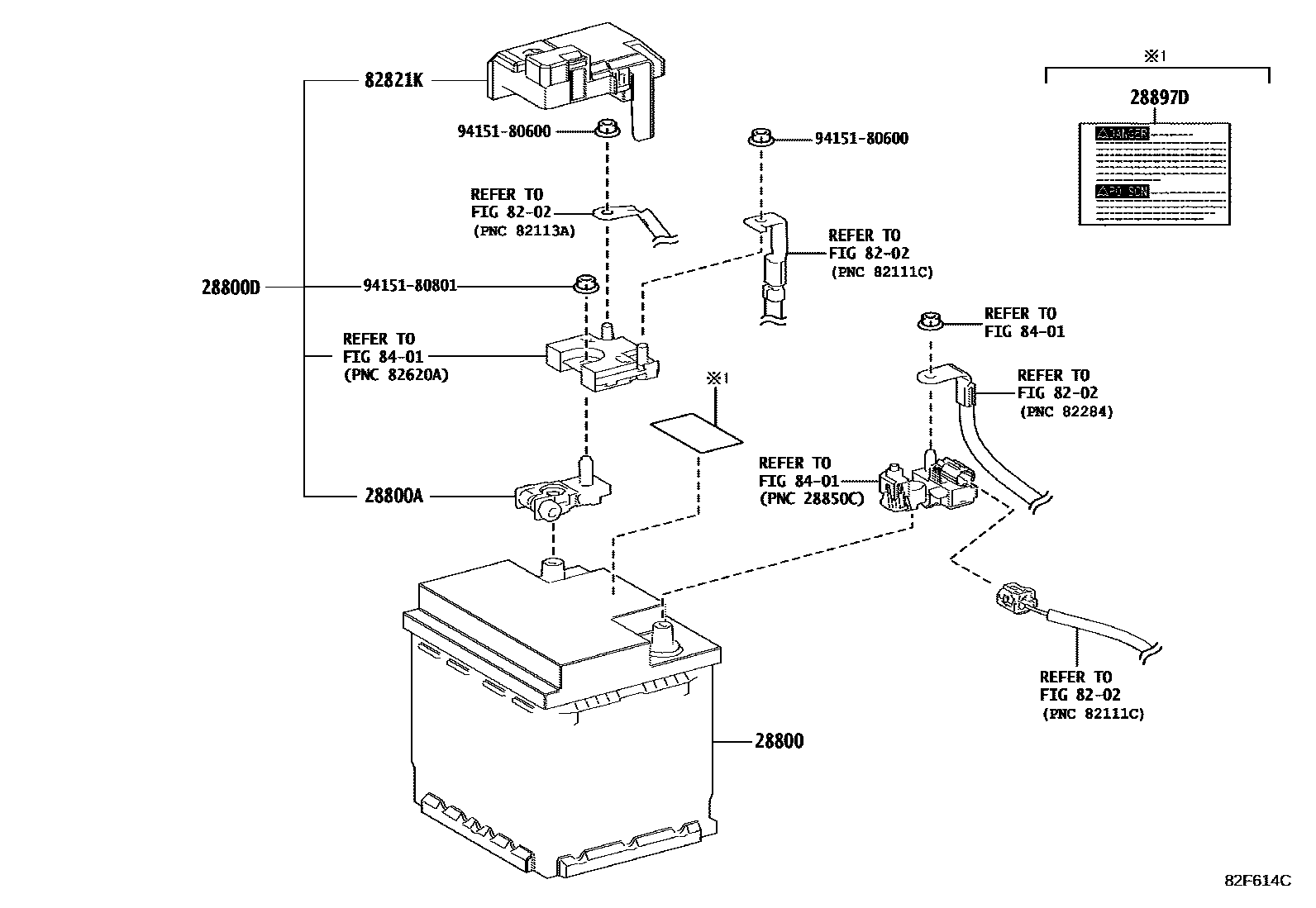

Toyota BZ4X — BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1EV BATTERY 1/3 0003 1EV BATTERY 2/3 0004 1EV BATTERY 3/3 0005 1EV BATTERY 2/3 0006 1EV BATTERY 3/3 0007 1SERVICE PLUG

28800BATTERY

main28800-10200iEM..XEAM10,YEAM15¥30,700202203-202208

LN1

sub28800-10201¥30,700

main28800-10201iEM..XEAM10,YEAM15¥30,700202209-202403

LN1

sub28800-10202¥27,900

main28800-10202iEM..XEAM10,YEAM15¥27,900202412

LN1

main28800-10202iEM..XEAM10,YEAM15¥27,900202404-202411

LN1

28800ATERMINAL, BATTERY POSITIVE

main90982-05071iEM..XEAM10,YEAM15¥850202412

main90982-05071iEM..YEAM15..H..CND¥850202203-202303

main90982-05071iEM..XEAM10;EM..YEAM15..L,M;EM..YEAM15..H..USA¥850202203-202411

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42390iEM..XEAM10,YEAM15¥2,150202412

main82821-42390iEM..YEAM15..H..CND¥2,150202203-202303

main82821-42390iEM..XEAM10;EM..YEAM15..L,M;EM..YEAM15..H..USA¥2,150202203-202411

28897DLABEL, BATTERY CAUTION

main28897-24020iEM..XEAM10,YEAM15..(E,L,M)..CND¥140202203-202411

main28897-24020iEM..XEAM10,YEAM15..CND¥140202412

main28897-24020iEM..YEAM15..H..CND¥140202203-202303

8202

82821KCOVER, CONNECTOR

main82821-42140iXEAM10,YEAM15¥2,030202412

main82821-42140iYEAM15..H..CND¥2,030202203-202303

main82821-42140iXEAM10;YEAM15..L,M;YEAM15..H..USA¥2,030202203-202411

8401

9415180600

main94151-80600¥60

9415180801

main94151-80801¥80

9 parts on this diagram · 7 diagrams in section
