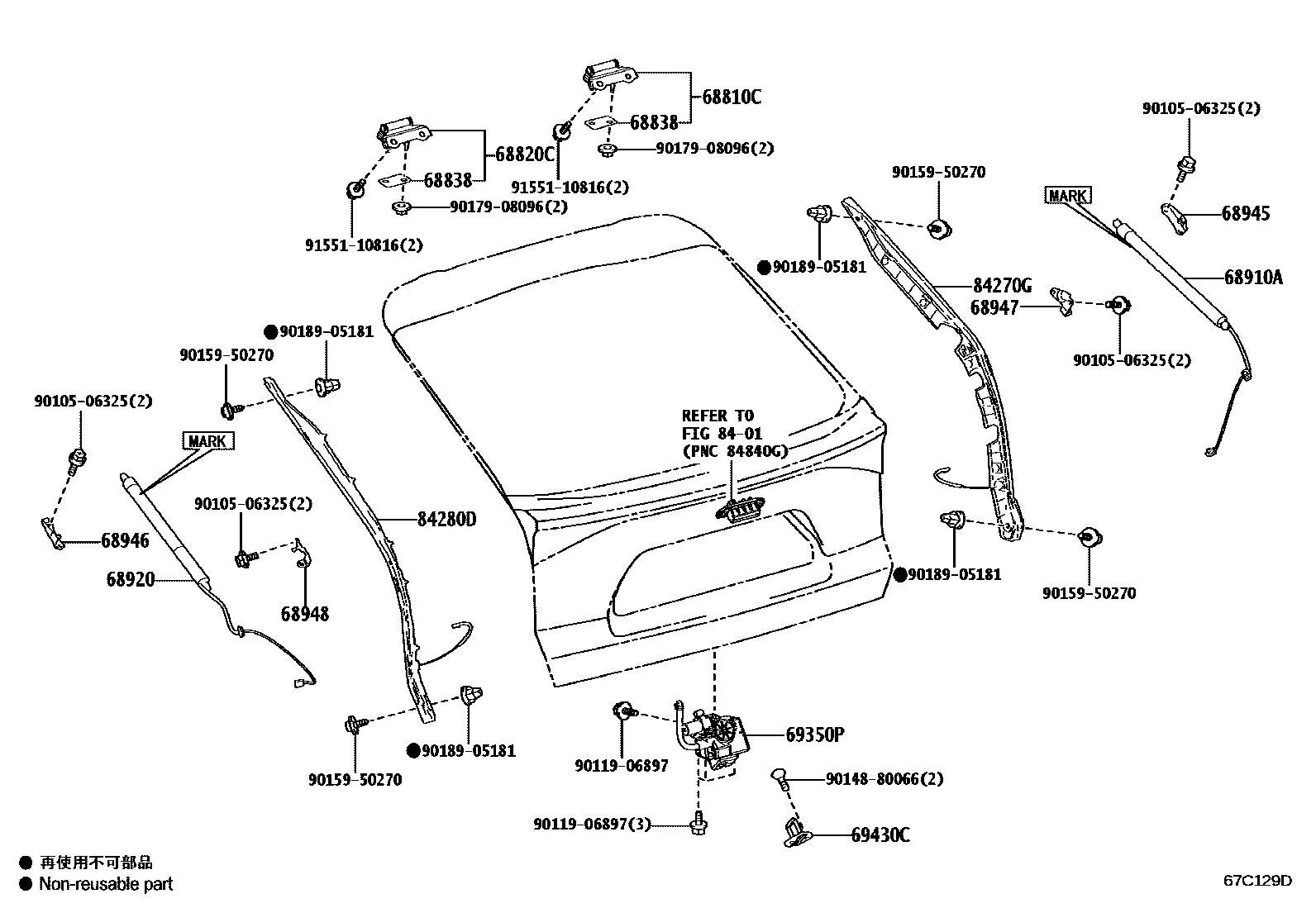

Toyota BZ4X — BACK DOOR LOCK & HANDLE

0001 1W(POWER BACK DOOR) 0002 1W/O(POWER BACK DOOR)

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220iXEAM10,YEAM15¥2,310202203-202411

68820CHINGE ASSY, BACK DOOR, LH

main68810-48220iXEAM10,YEAM15¥2,310202203-202411

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140iXEAM10,YEAM15¥200202203-202411

T=1.0

main68838-48150iXEAM10,YEAM15¥270202203-202411

T=1.5

main68838-48160iXEAM10,YEAM15¥360202203-202411

T=2.0

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-42100iXEAM10,YEAM15..H..USA;XEAM10,YEAM15..(H,L,M)..CND¥31,300202203-202204

sub68910-42101¥31,300

main68910-42101iXEAM10,YEAM15..H..USA;XEAM10,YEAM15..(H,L,M)..CND¥31,300202205-202305

MARK=68910-42101

sub68910-42102¥28,300

main68910-42102iXEAM10,YEAM15..H;XEAM10,YEAM15..(L,M)..CND¥28,300202305-202411

MARK=68910-42102

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-42080iXEAM10,YEAM15..H..USA;XEAM10,YEAM15..(H,L,M)..CND¥31,300202203-202204

sub68920-42081¥31,300

main68920-42081iXEAM10,YEAM15..H..USA;XEAM10,YEAM15..(H,L,M)..CND¥31,300202205-202305

MARK=68920-42081

sub68920-42082¥28,300

main68920-42082iXEAM10,YEAM15..(L,M)..CND;XEAM10,YEAM15..(H,M)..USA¥28,300202305-202411

MARK=68920-42082

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-42060iXEAM10..E;XEAM10,YEAM15..L..USA¥660202203-202411

main68945-42070iXEAM10,YEAM15..M..USA¥660202203-202411

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-42060iXEAM10,YEAM15..M..USA¥660202203-202411

main68946-42070iXEAM10,YEAM15..(L,M)..CND;XEAM10,YEAM15..(H,M)..USA¥660202203-202411

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-42040iXEAM10,YEAM15¥660202203-202411

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-42040iXEAM10,YEAM15¥660202203-202411

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42080iXEAM10,YEAM15..(L,M)..CND;XEAM10,YEAM15..(H,M)..USA¥14,900202203-202411

main69350-42090iXEAM10..E;XEAM10,YEAM15..L..USA¥8,800202203-202411

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iXEAM10,YEAM15¥1,120202203-202411

8401

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-42030iXEAM10,YEAM15..(L,M)..CND;XEAM10,YEAM15..(H,M)..USA¥14,700202203-202411

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-42030iXEAM10,YEAM15..(L,M)..CND;XEAM10,YEAM15..(H,M)..USA¥14,700202203-202411

9010506325

main90105-06325¥80

9011906897

main90119-06897¥60

9014880066

main90148-80066¥60

9015950270

main90159-50270¥70

9017908096

main90179-08096¥110

9018905181

main90189-05181¥70

9155110816

main91551-10816¥80

21 parts on this diagram · 2 diagrams in section
