Toyota BZ4X — TELEPHONE & MAYDAY

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-42080¥31,600

86719ABRACKET, TELEPHONE NO.1

main86719-42070iXEAM10,YEAM15¥910202203-202411

86719BBRACKET, TELEPHONE NO.2

main86719-42110iXEAM10,YEAM15¥380202203-202411

86725BATTERY, MOBILEPHONE

main86725-78020iXEAM10,YEAM15¥7,500202203-202411

86741ATRANSCEIVER, TELEMATICS

main86741-42250iXEAM10,YEAM15¥34,500202203-202411

86742ACOVER, TRANSCEIVER

main86742-26010iXEAM10,YEAM15¥720202203-202411

9015350015

main90153-50015¥60

9018306032

main90183-06032¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

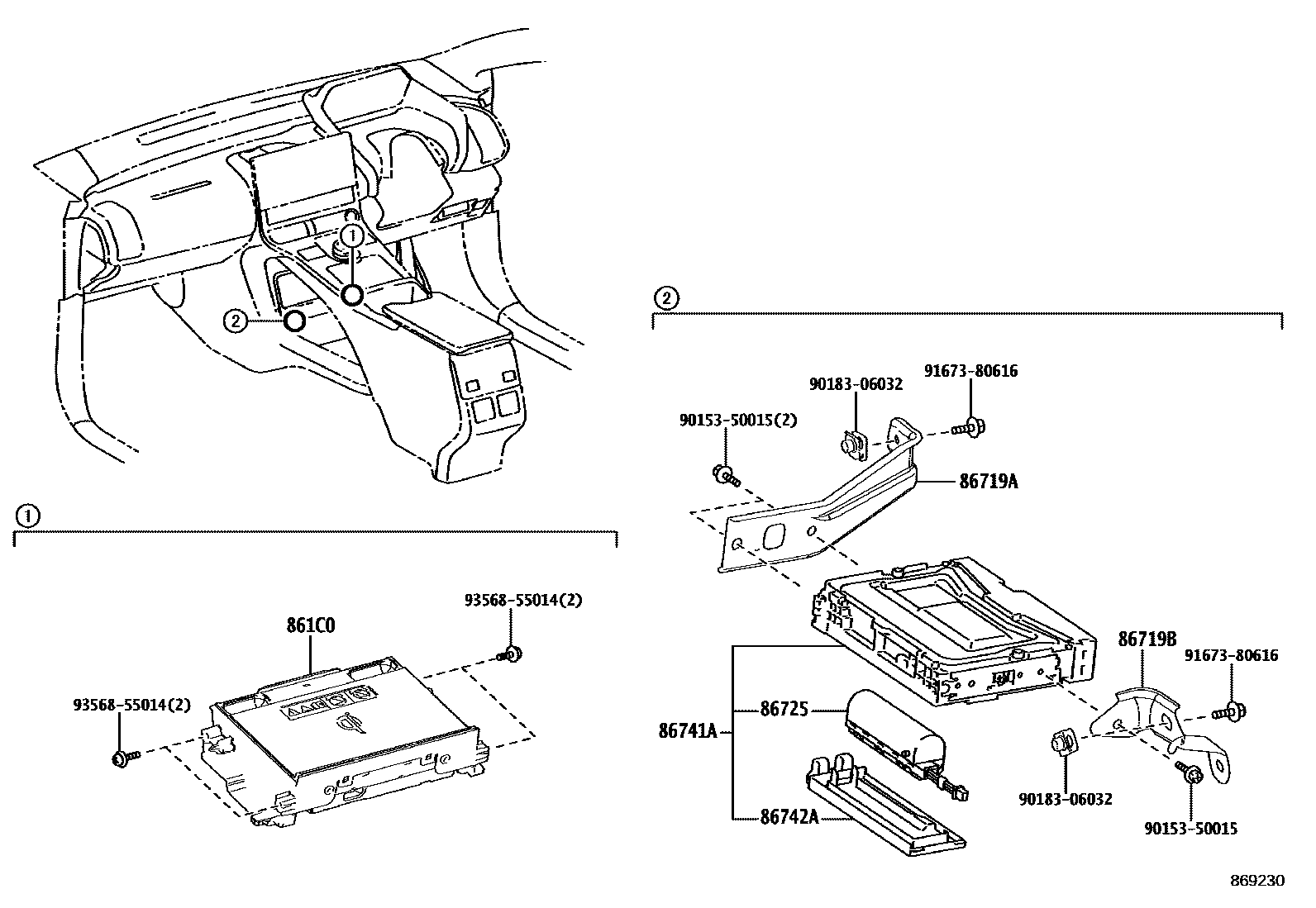

10 parts on this diagram · 1 diagram in section
