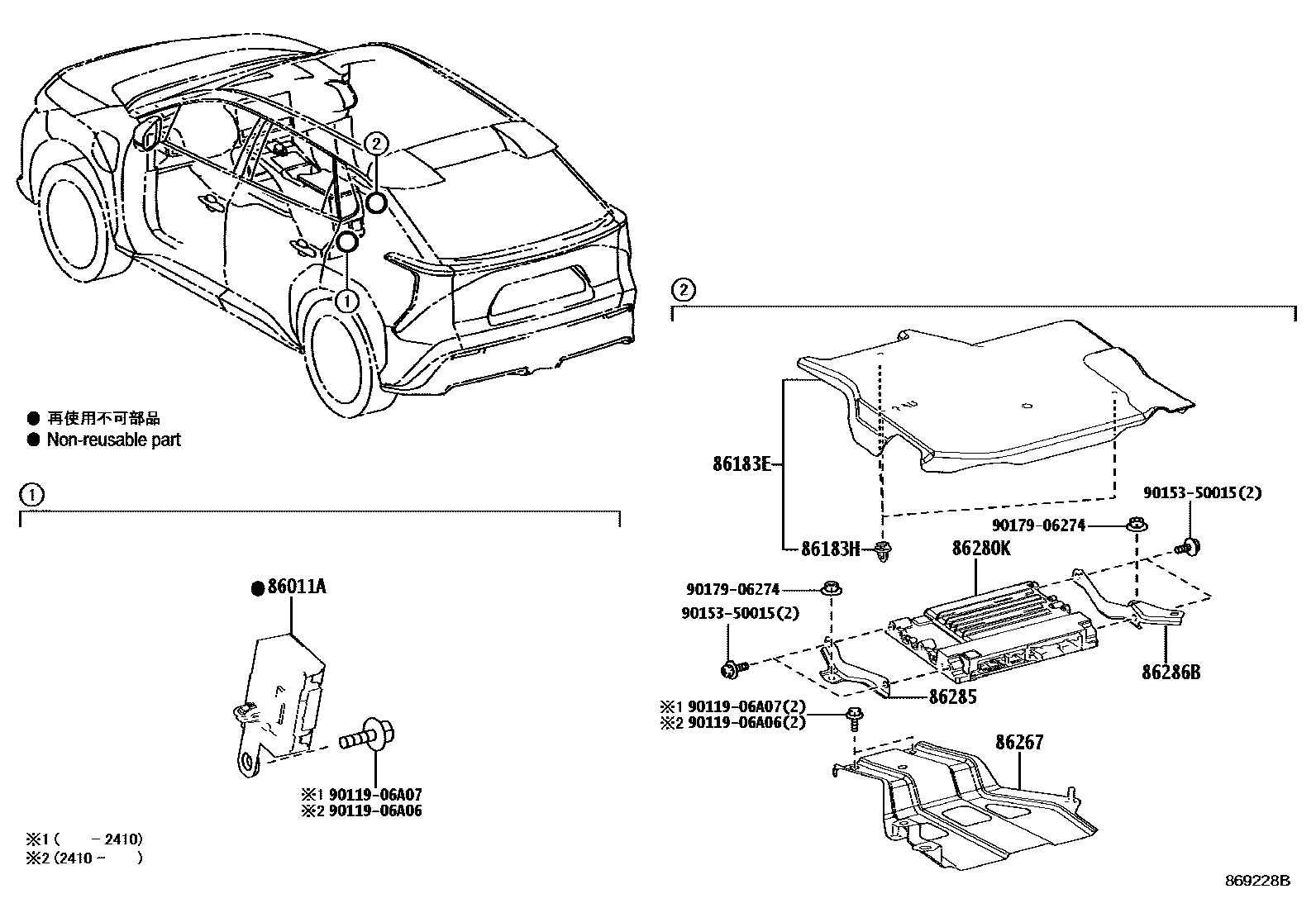

Toyota BZ4X — RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04204iXEAM10,YEAM15¥1,150202203-202411

main90980-04211iXEAM10,YEAM15¥1,150202412

86183ECOVER, AUDIO AMPLIFIER

main86183-46010iXEAM10,YEAM15..Z¥3,200202203-202411

86183HCLIP, AUDIO AMPLIFIER COVER

main90467-09232iXEAM10,YEAM15..Z¥70202203-202411

86267BRACKET, TAPE PLAYER, NO.3

main86286-42060iXEAM10,YEAM15..Z¥2,930202203-202411

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-42080iXEAM10,YEAM15..Z¥181,000202203-202411

86285BRACKET, AMPLIFIER, NO.1

main86285-42060iXEAM10,YEAM15..Z¥320202203-202411

86286BBRACKET, AMPLIFIER, NO.2

main86286-42050iXEAM10,YEAM15..Z¥550202203-202411

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

11 parts on this diagram · 1 diagram in section
