Toyota BZ4X — PARKING BRAKE & CABLE

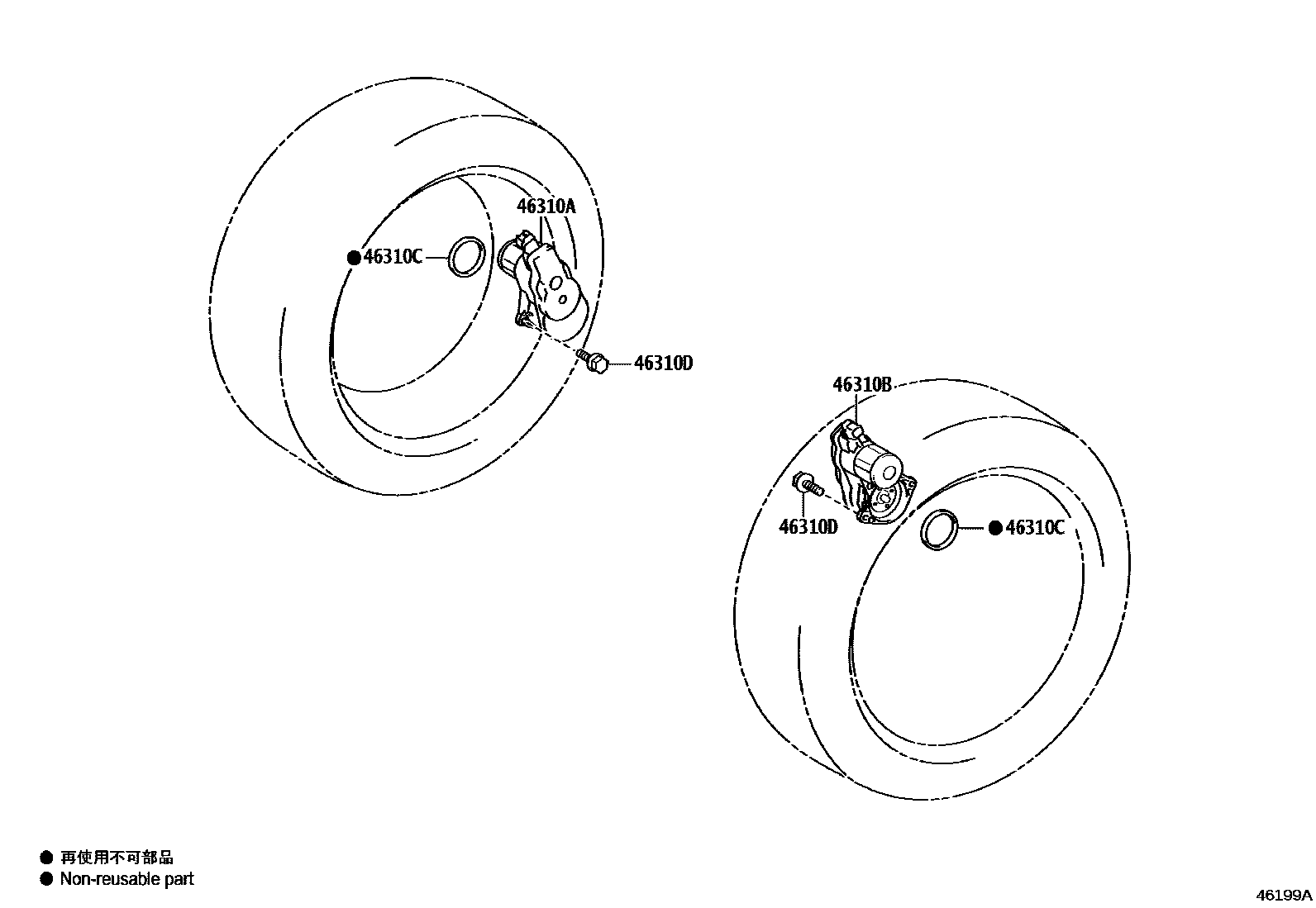

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010i¥14,400202203-202411

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010i¥14,400202203-202411

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i¥130202203-202411

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702i¥270202203-202411

4 parts on this diagram · 1 diagram in section
