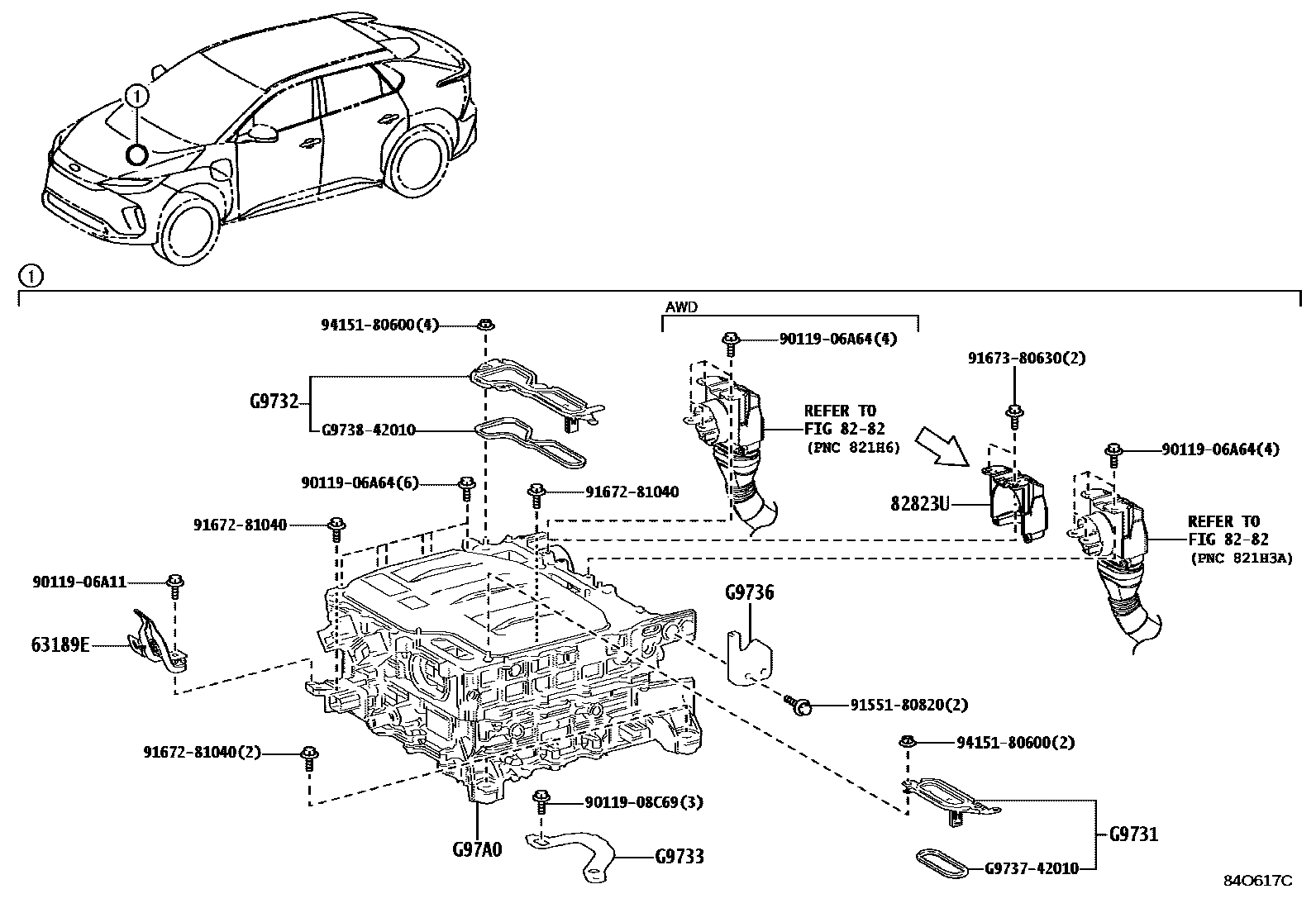

Toyota BZ4X — DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1 0003 1����������

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-42020iXEAM10,YEAM15¥530202412

main63189-42020iXEAM10,YEAM15¥530202203-202411

8282

82823UCAP, TERMINAL

main82823-42080iXEAM10¥3,480202412

main82823-42080iXEAM10¥3,480202203-202411

G9731COVER, TERMINAL, NO.1

mainG973142010iXEAM10,YEAM15202412

mainG973142010iXEAM10,YEAM15202203-202411

G9732COVER, TERMINAL, NO.2

mainG973242011iXEAM10,YEAM15202203-202310

mainG973242012iXEAM10,YEAM15202412

mainG973242012iXEAM10,YEAM15202311-202411

G9733BRACKET, EARTH

mainG973342010iXEAM10,YEAM15202412

mainG973342010iXEAM10,YEAM15202203-202411

G9736PROTECTOR, CONNECTOR, NO.3

mainG973642010iXEAM10,YEAM15202203-202311

G97A0UNIT ASSY, ELECTRIC CONVERTER W/CAP

mainG97A042010iXEAM10,YEAM15202203-202209

subG97A0-46030¥399,000

mainG97A042090iXEAM10,YEAM15202305-202311

mainG97A042140iXEAM10,YEAM15202311-202404

subG97A0-42141¥362,000

mainG97A042141iXEAM10,YEAM15202412

mainG97A042141iXEAM10,YEAM15202405-202411

mainG97A046030iXEAM10,YEAM15202209-202210

subG97A0-46070¥399,000

mainG97A046070iXEAM10,YEAM15202211-202305

subG97A0-42090¥399,000

9011906A11

main90119-06A11¥60

9011906A64

main90119-06A64¥60

9011908C69

main90119-08C69¥100

9155180820

main91551-80820¥80

9167281040

main91672-81040¥220

9167380630

main91673-80630¥80

9415180600

main94151-80600¥60

G973742010GASKET, TERMINAL COVER, NO.1

mainG9737-42010¥340

G973842010GASKET, TERMINAL COVER, NO.2

mainG9738-42010¥510

17 parts on this diagram · 3 diagrams in section
