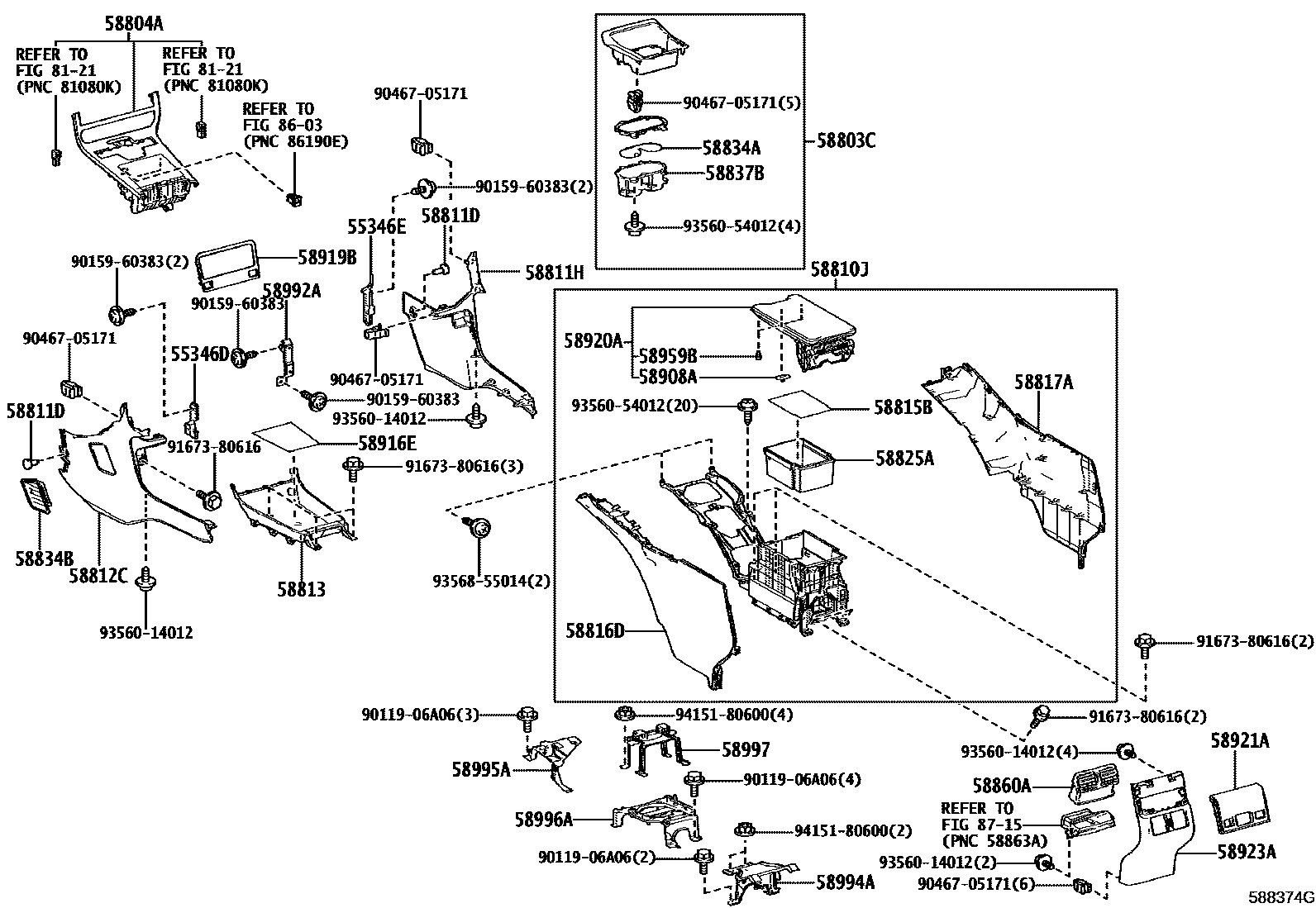

Toyota BZ4X — CONSOLE BOX & BRACKET
55346DBRACKET, AIR CONDITIONING MOUNTING, NO.1
55346EBRACKET, AIR CONDITIONING MOUNTING, NO.2
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58810JBOX ASSY, CONSOLE
BLACK/LT.GRAY,TRIM1#
BLACK/LT.GRAY,TRIM1#
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
58811DCLIP(FOR CONSOLE BOX)
BLACK
BLACK
58811HBOX, CONSOLE, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58812CBOX, CONSOLE, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58813BOX, CONSOLE, UPPER
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58815BCARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58825APOCKET, CONSOLE BOX
58834ACOVER, CONSOLE, LOWER
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58837BBOX, CONSOLE CUP HOLDER
58860AREGISTER ASSY, CONSOLE BOX
BLACK
BLACK
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916EMAT, BOX BOTTOM
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58919BPLATE, CONSOLE BOX
58920AARMREST ASSY, REAR CONSOLE
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
58921APANEL, REAR CONSOLE, UPPER
58923APANEL, CONSOLE REAR END
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121
8603
8715
9011906A06
9015960383
9046705171
9167380616
9356014012
9356054012
9356855014
9415180600
40 parts on this diagram · 1 diagram in section
