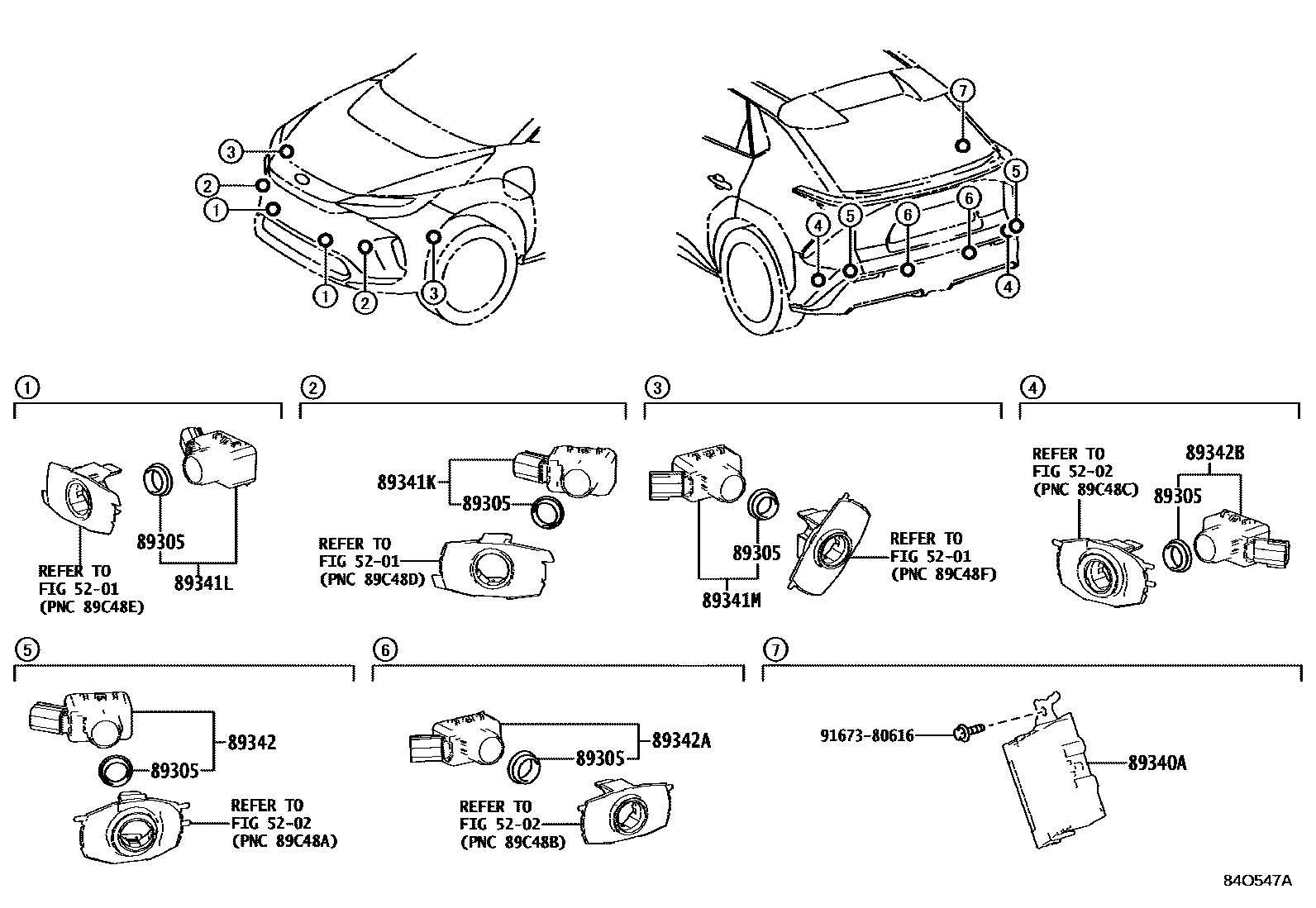

Toyota BZ4X — CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
89341LSENSOR, ULTRASONIC, FRONT CENTER
89341MSENSOR, ULTRASONIC, FRONT SIDE
DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
89342ASENSOR, ULTRASONIC, REAR CENTER
DUMMY-MAT BLACK
89342BSENSOR, ULTRASONIC, REAR SIDE
PLATINUM WHITE PEARL MC.,089 ,2VP
PRECIOUS SILVER,1J6 ,2MR
BLACK,202
EMOTIONAL RED 2,2TB ,3U5
DK.BLUE MC.,2MT ,8S6
PRECIOUS METAL,1L5 ,2WC
9167380616
11 parts on this diagram · 1 diagram in section
