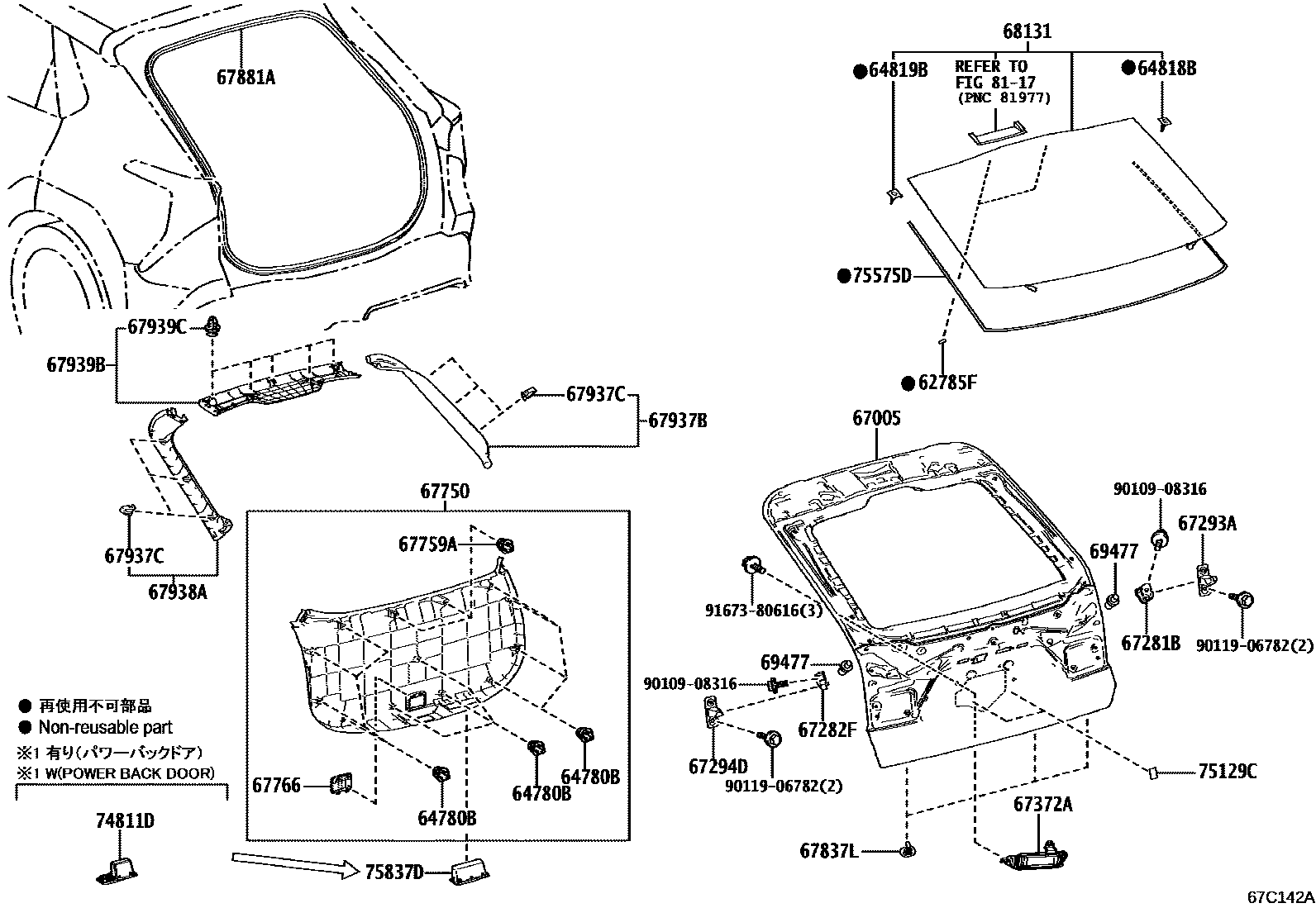

Toyota BZ4X — BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293ACUSHION, BACK DOOR STOPPER
67294DCUSHION, BACK DOOR STOPPER, LH
67372AWEIGHT, BACK DOOR
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM1#,2#
BLACK,TRIM2#
67759ACLIP(FOR BACK DOOR TRIM BOARD)
67766COVER, BACK DOOR SERVICE HOLE, NO.2
BLACK,TRIM2#
BLACK,TRIM1#,2#
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67937BGARNISH, BACK DOOR SIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
67937CCLIP(FOR BACK DOOR SIDE GARNISH)
67938AGARNISH, BACK DOOR SIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
67939BGARNISH, BACK DOOR, CENTER
BLACK,TRIM1#,2#
BLACK,TRIM2#
67939CCLIP(FOR BACK DOOR CENTER GARNISH)
68131GLASS, BACK DOOR
69477CUSHION, BACK DOOR UPPER STOPPER
74811DHANDLE, DOOR PULL
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
75837DCOVER, BACK DOOR FINISH, RH
8117
9010908316
9011906782
9167380616
30 parts on this diagram · 1 diagram in section
