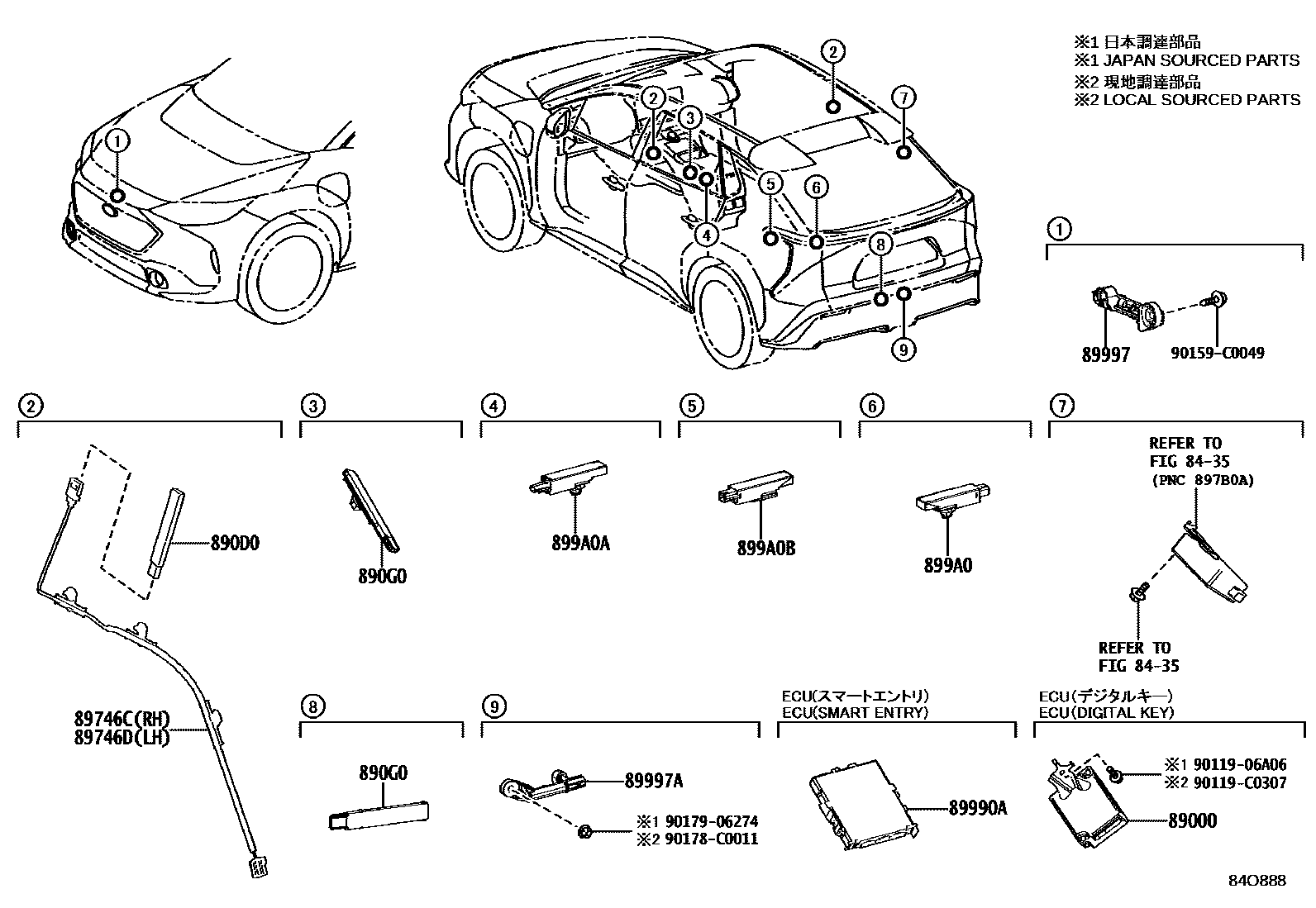

Toyota BZ4X (TFTM) — WIRELESS DOOR LOCK
8435
89000COMPUTER ASSY, DIGITAL KEY
KEY PLATE-ZIPPO(2) & DIGITAL KEY
890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89990ACOMPUTER ASSY, SMART KEY
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
AUTO & EASY CLOSER DOOR-PWR BACK DOOR & KICK SENSOR&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
89997ANTENNA, ELECTRICAL KEY
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
sub89997-0E061
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
9011906A06
90119C0307
main90119-C0307
90159C0049
main90159-C0049
90178C0011
main90178-C0011
9017906274
17 parts on this diagram · 1 diagram in section
