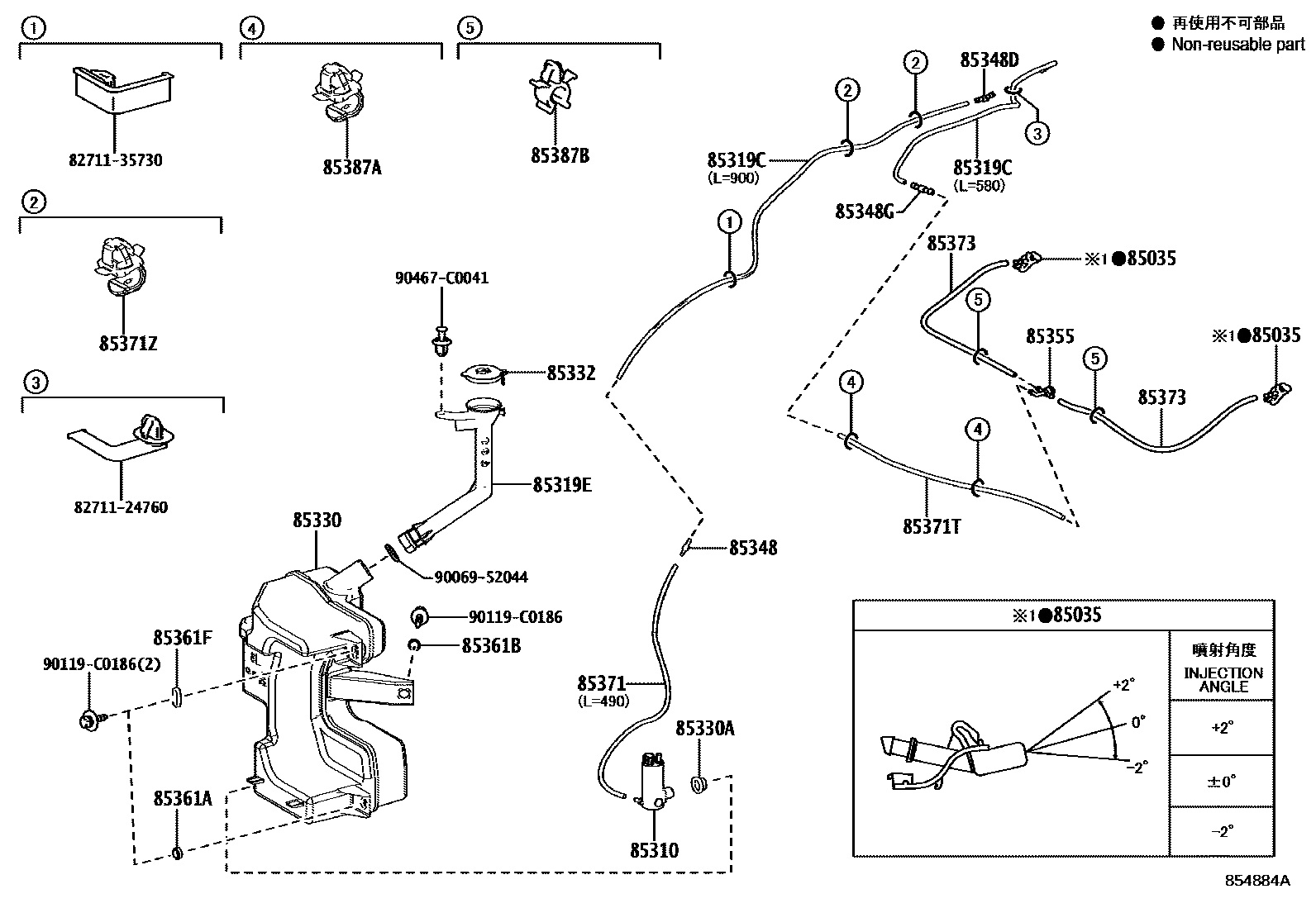

Toyota BZ4X (TFTM) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0A080iXEAM10,YEAM15202210

ANGLE 0

main85381-0A090iXEAM10,YEAM15202210

ANGLE +2

main85381-0A100iXEAM10,YEAM15202210

ANGLE -2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02120iXEAM10,YEAM15202210

85319CHOSE, WASHER

main90069-46234iXEAM10,YEAM15202210

TYPE A

main90069-46235iXEAM10,YEAM15202210

TYPE B

85319EINLET WASHER

main85319-0R120iXEAM10,YEAM15202210

85330JAR ASSY, WINDSHIELD WASHER

main85315-0R130iXEAM10,YEAM15202210

85330ABUSH, WINDSHIELD WASHER JAR

main85336-02840iXEAM10,YEAM15202210

85332CAP, WINDSHIELD WASHER JAR

main85316-0A090iXEAM10,YEAM15202210

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iXEAM10,YEAM15¥220202210

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-0R260iXEAM10,YEAM15202210

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-05050iXEAM10,YEAM15¥220202210

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650iXEAM10,YEAM15¥200202210

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-02840iXEAM10,YEAM15202210

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85338-02840iXEAM10,YEAM15202210

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85339-02840iXEAM10,YEAM15202210

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46233iXEAM10,YEAM15202210

L=490

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90069-46233iXEAM10,YEAM15202210

L=490

85371ZCLAMP, WASHER HOSE

main85371-48050iXEAM10,YEAM15¥0202210

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46236iXEAM10,YEAM15202210

L=470

85387ACLAMP, WASHER, NO.2

main85371-0A020iXEAM10,YEAM15202210

85387BCLAMP, WASHER, NO.3

main90469-C0014iXEAM10,YEAM15202210

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760¥170

8271135730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35730¥200

9006952044

main90069-52044

90119C0186

main90119-C0186

90467C0041

main90467-C0041

25 parts on this diagram · 1 diagram in section
