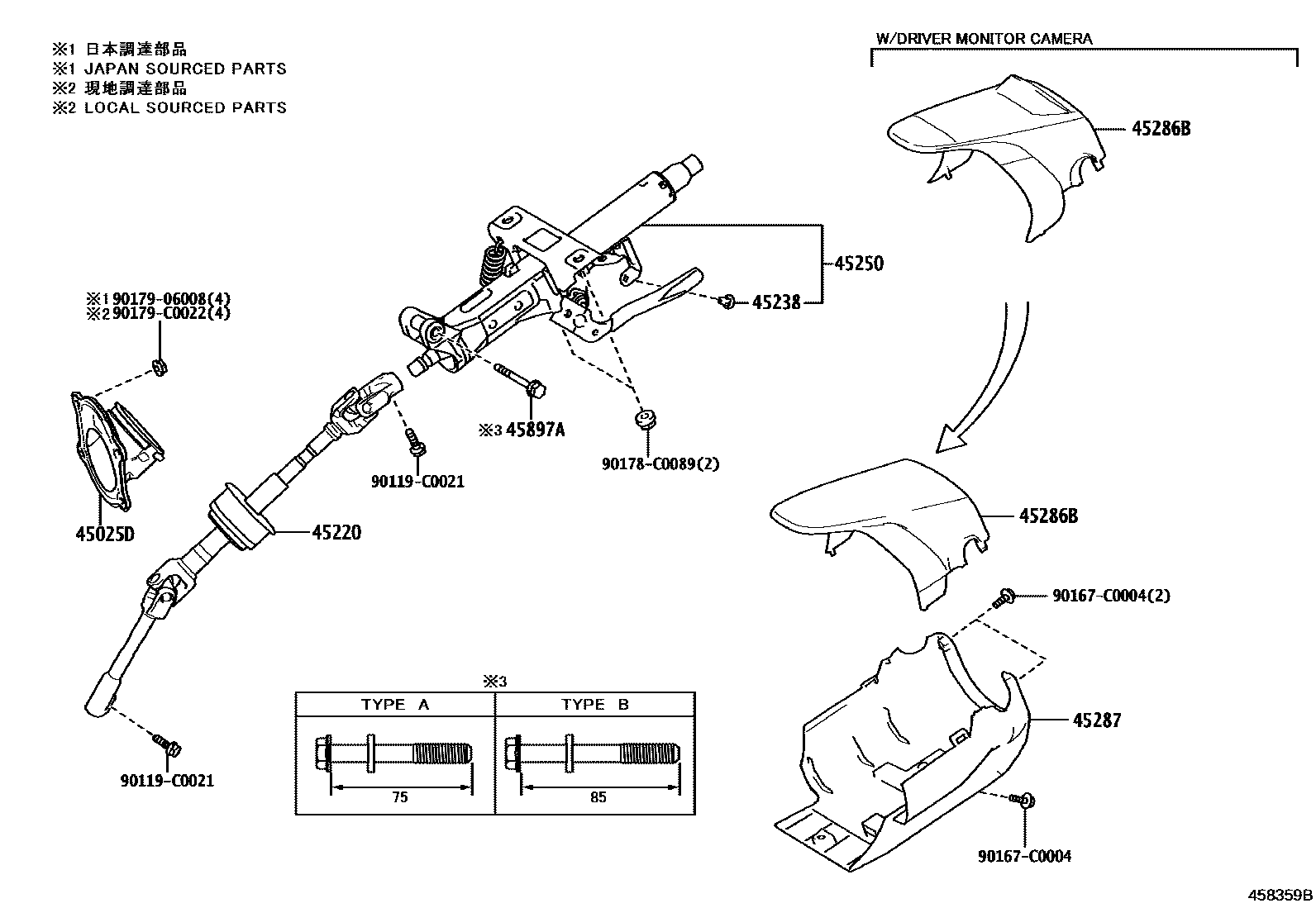

Toyota BZ4X (TFTM) — STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0R070iXEAM10,YEAM15202210

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0R040iXEAM10,YEAM15202210

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iXEAM10,YEAM15¥70202210

45250COLUMN ASSY, STEERING

main45250-0R090iXEAM10,YEAM15202210

45286BCOVER, STEERING COLUMN, UPR

main45286-0R080-C0iXEAM10..L202210

BLACK,TRIM1#,2#

main45286-0R130-C0iYEAM15202210

BLACK,TRIM1#,3#

main45286-0R130-C0iYEAM15202210

BLACK,TRIM1#,2#,3#

main45286-0R130-C0iYEAM15202210

AUDIO-AVN,BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45024-0R020-C0iYEAM15202210

BLACK,TRIM1#,3#

main45024-0R020-C0iYEAM15202210

BLACK,TRIM1#,2#

main45024-0R020-C0iYEAM15202210

BLACK,TRIM1#,2#,3#

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iXEAM10,YEAM15¥190202210

(J),TYPE A:REF ILL.

main90119-10981iXEAM10,YEAM15¥190202210

(J),TYPE B:REF ILL.

main90119-C0427iXEAM10,YEAM15202210

(L),TYPE B:REF ILL.

main90119-C0480iXEAM10,YEAM15202210

(L),TYPE A:REF ILL.

90119C0021

main90119-C0021

90167C0004

main90167-C0004

90178C0089

main90178-C0089

9017906008

main90179-06008¥60

90179C0022

main90179-C0022

12 parts on this diagram · 1 diagram in section
