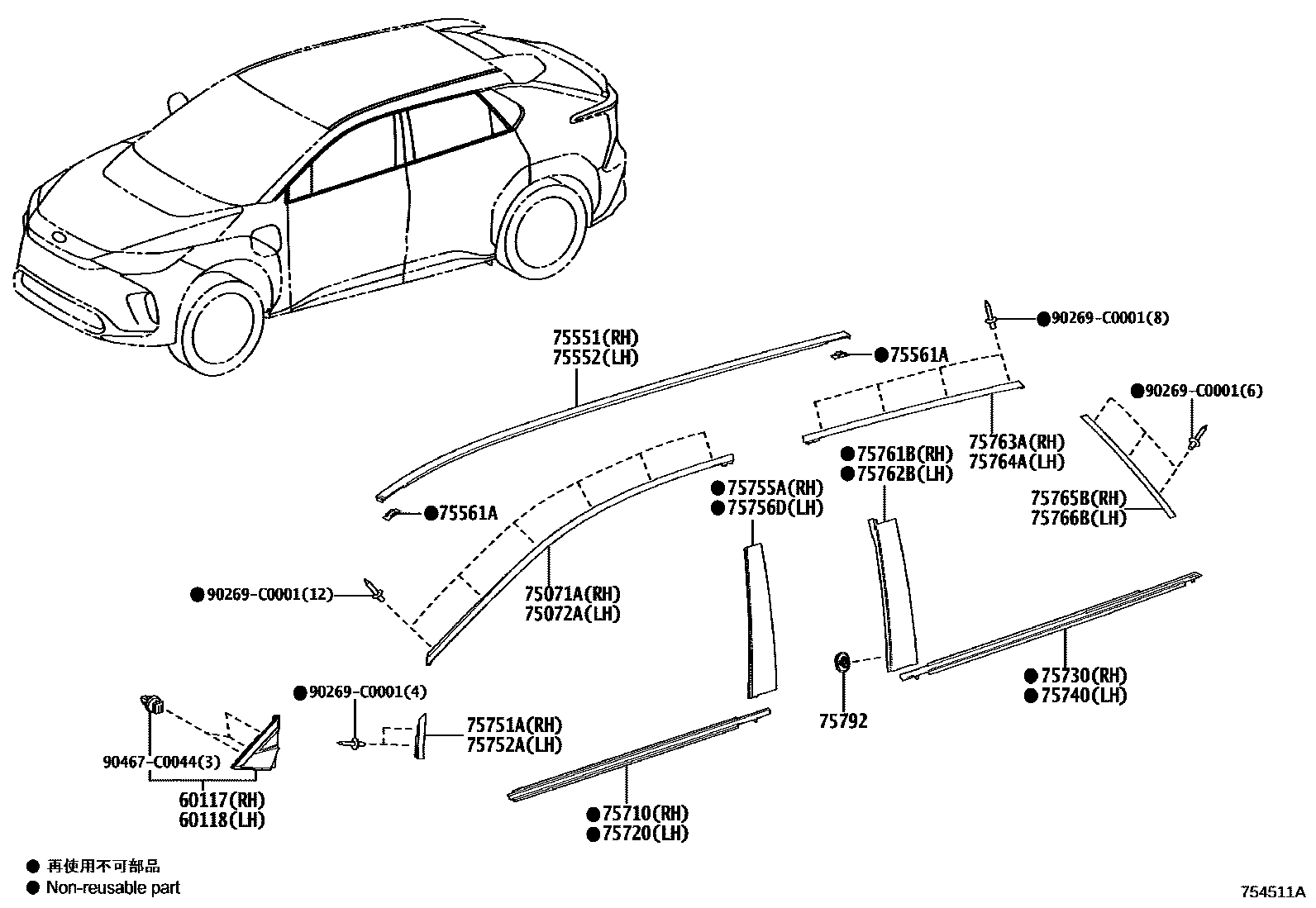

Toyota BZ4X (TFTM) — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75792CLIP, DOOR WINDOW FRAME MOULDING
90269C0001
main90269-C0001
90467C0044
main90467-C0044
24 parts on this diagram · 2 diagrams in section
