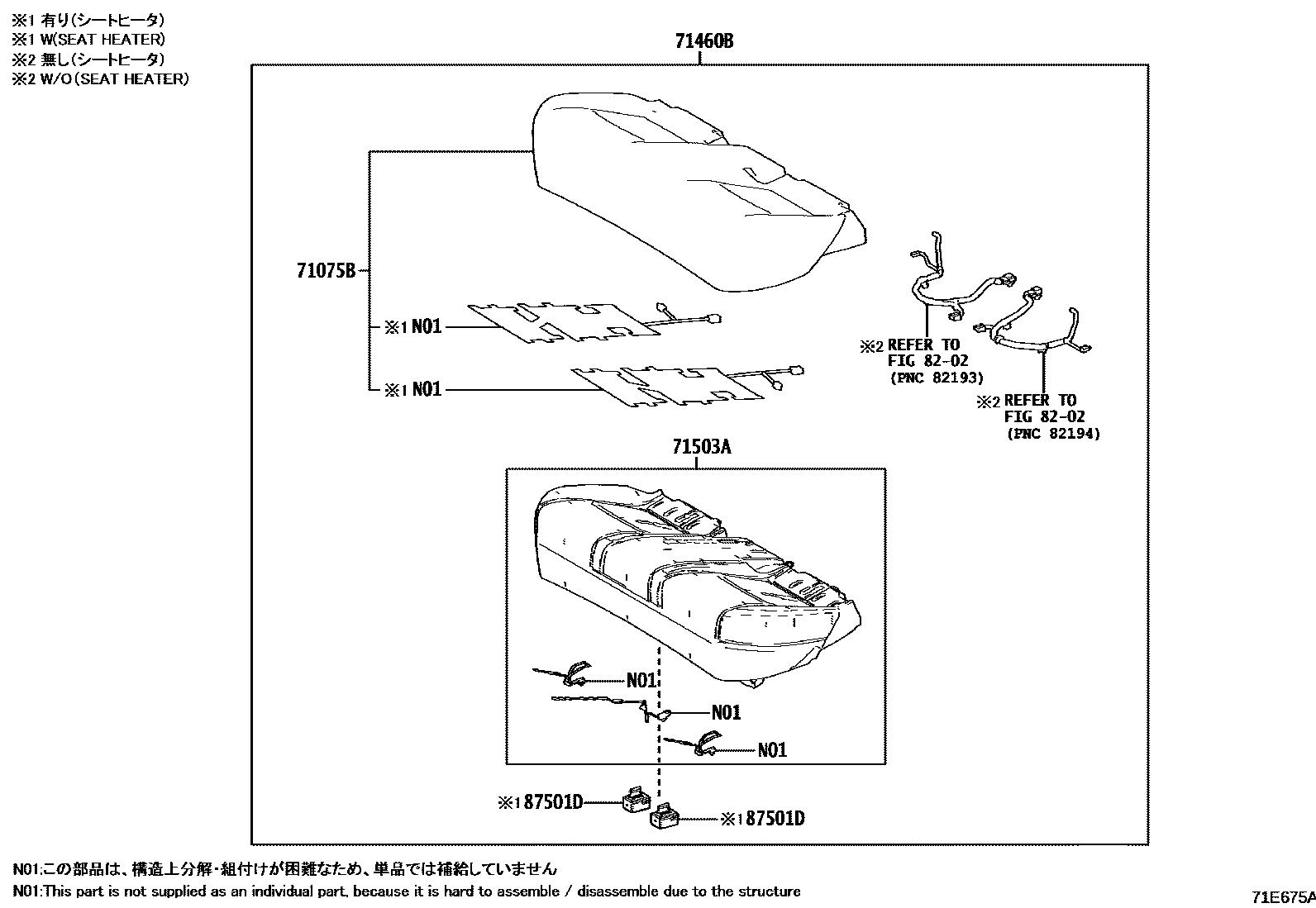

Toyota BZ4X (TFTM) — REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
MD.GRAY,TRIM3#
FRONT SEAT SLIDE-*DRP:POWER SEAT&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY), *PAS:WITHOUT,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM3#
MD.GRAY,TRIM1#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
BLACK,TRIM2#
FRONT SEAT SLIDE-*DRP:POWER SEAT&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY), *PAS:WITHOUT,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
MD.GRAY,TRIM3#
LT.GRAY,TRIM1#
MD.GRAY,TRIM3#
71503APAD SUB-ASSY, REAR SEAT CUSHION
8202
87501DCONTROL SUB-ASSY, SEAT HEATER
FRONT SEAT SLIDE-*DRP:POWER SEAT&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY), *PAS:WITHOUT
5 parts on this diagram · 3 diagrams in section
