Toyota BZ4X (TFTM) — PARKING BRAKE & CABLE

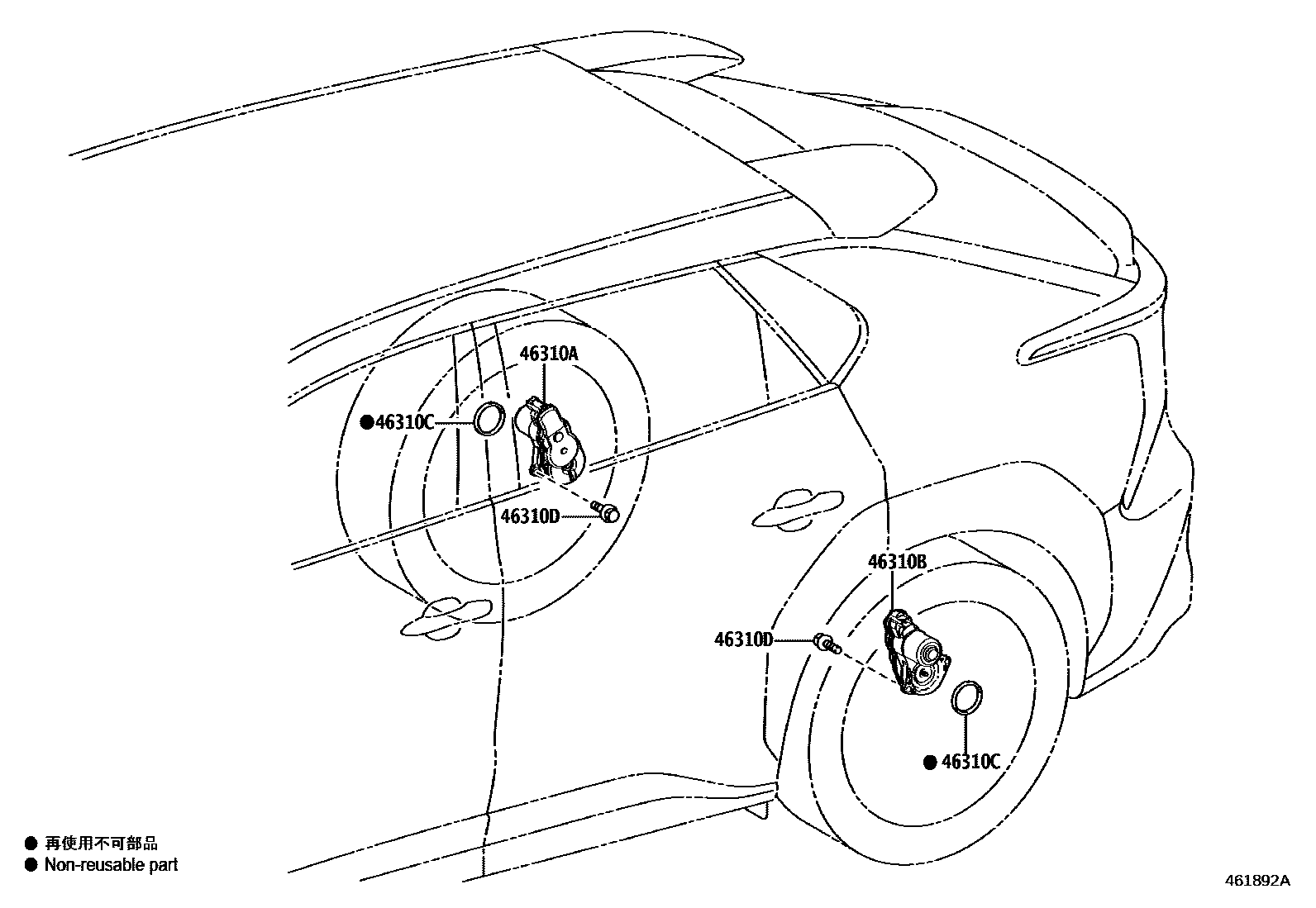

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-07010i202210

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-07010i202210

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i¥130202210

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90016-AA702i202210

4 parts on this diagram · 1 diagram in section
