Toyota BZ4X (TFTM) — METER

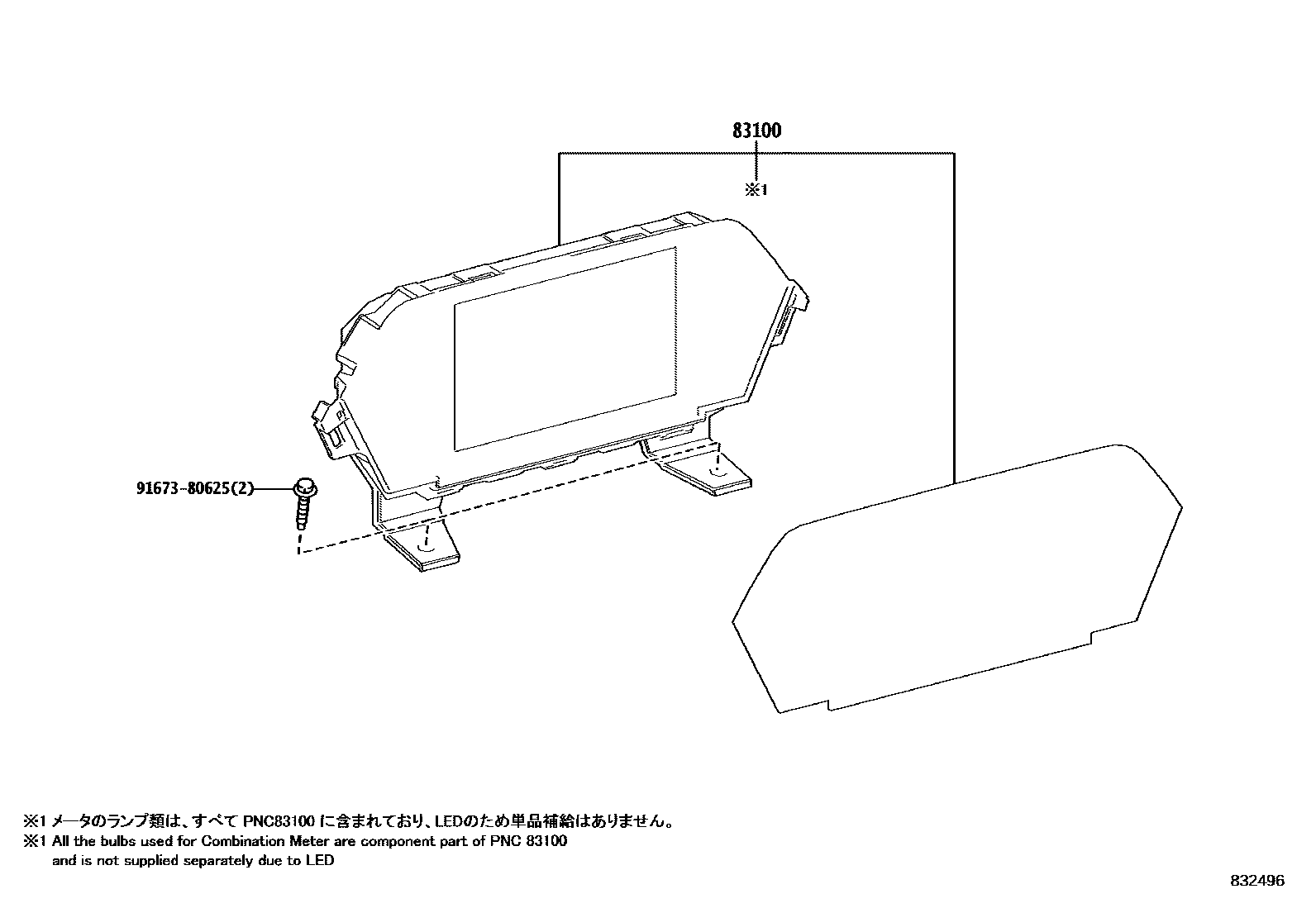

83100METER ASSY, COMBINATION

main83800-0RA60iXEAM10,YEAM15..L,M202210-202302

DENSO,*614

sub83800-0RA61

main83800-0RA60iXEAM10,YEAM15..L,M202210-202302

DENSO,STEERING-ELECTRIC POWER STEERING,*614

sub83800-0RA61

main83800-0RA61iXEAM10,YEAM15..L,M202303-202306

DENSO,STEERING-ELECTRIC POWER STEERING,*614

main83800-0RA61iXEAM10,YEAM15..L,M202303-202306

DENSO,*614

main83800-0RB90iYEAM15..H202210-202306

STEERING-STEER BY WIRE,*614

main83800-0RB90iYEAM15..M202210-202306

*614

main83800-0RG20iYEAM15..H202312

DENSO,*614

main83800-0RG20iXEAM10,YEAM15..L,M202306

DENSO,*614

main83800-0RG30iYEAM15..H202306-202312

DENSO,STEERING-STEER BY WIRE,*614

main83800-0RG30iYEAM15..H202306-202312

DENSO,*614

9167380625

main91673-80625¥80

2 parts on this diagram · 1 diagram in section
