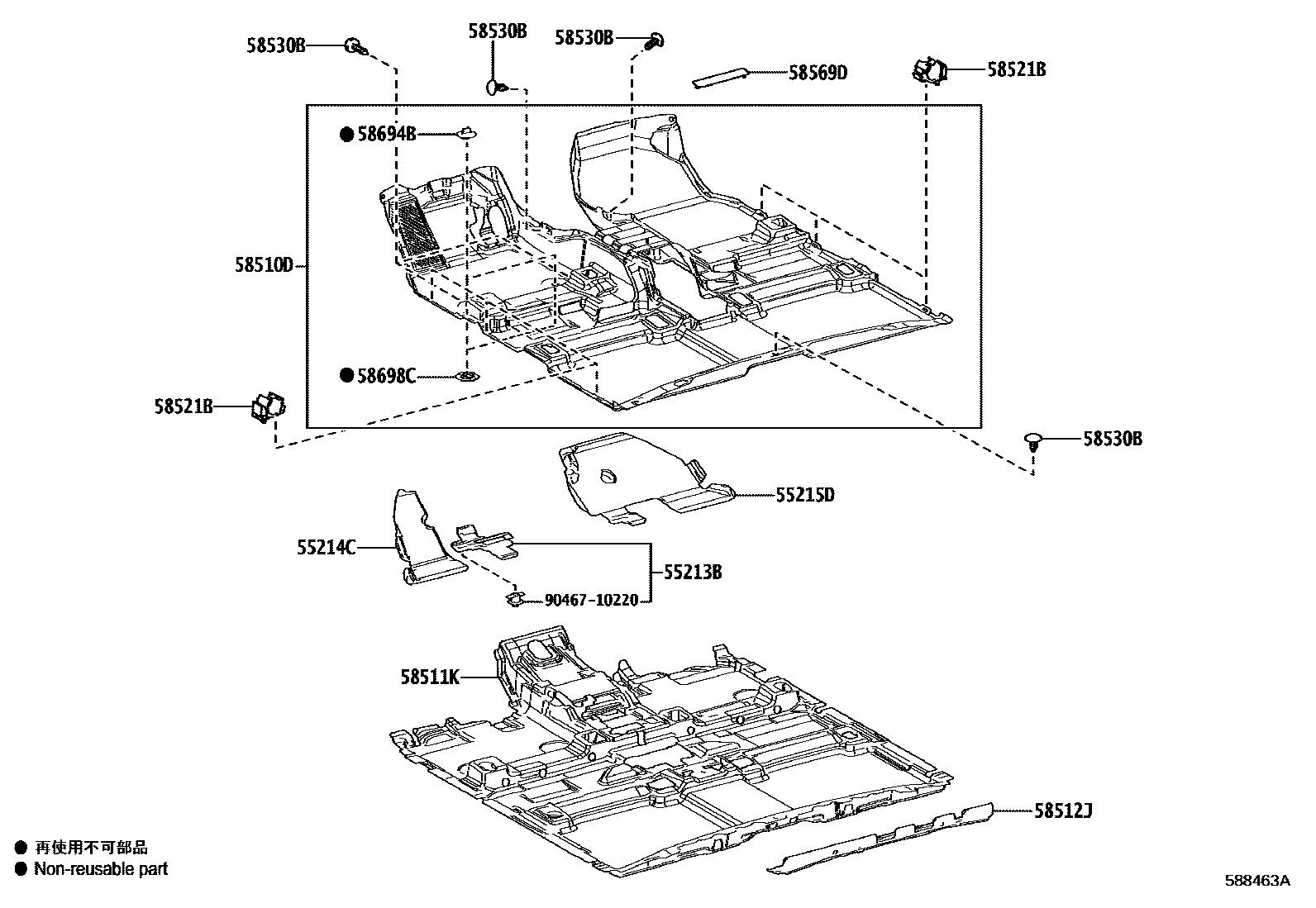

Toyota BZ4X (TFTM) — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-0R080iXEAM10,YEAM15202210

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0R120iXEAM10,YEAM15202210

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0R080iXEAM10,YEAM15202210

58510DCARPET ASSY, FLOOR, FRONT

main58510-0R240-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main58510-0R240-C1iXEAM10,YEAM15..H,M202210

BLACK,TRIM3#

58511KMAT, FLOOR, NO.1

main58511-0R120iXEAM10,YEAM15202210

58512JMAT, FLOOR, NO.2

main58512-0R070iXEAM10,YEAM15202210

58521BHOOK, FLOOR CARPET

main58521-33060iXEAM10,YEAM15¥260202210

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07161-C1iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#,(J)

sub90467-07161¥110

main90467-07161-C1iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,(J)

sub90467-07161¥110

main90467-C0059-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#,(L)

main90467-C0059-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,(L)

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0R060-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,3#

main58569-0R060-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

58694BPLATE, MAT SET, UPPER

main58694-33010iXEAM10,YEAM15¥200202210

58698CPLATE, MAT SET, LOWER

main58698-33010iXEAM10,YEAM15¥280202210

9046710220

main90467-10220¥80

12 parts on this diagram · 1 diagram in section
