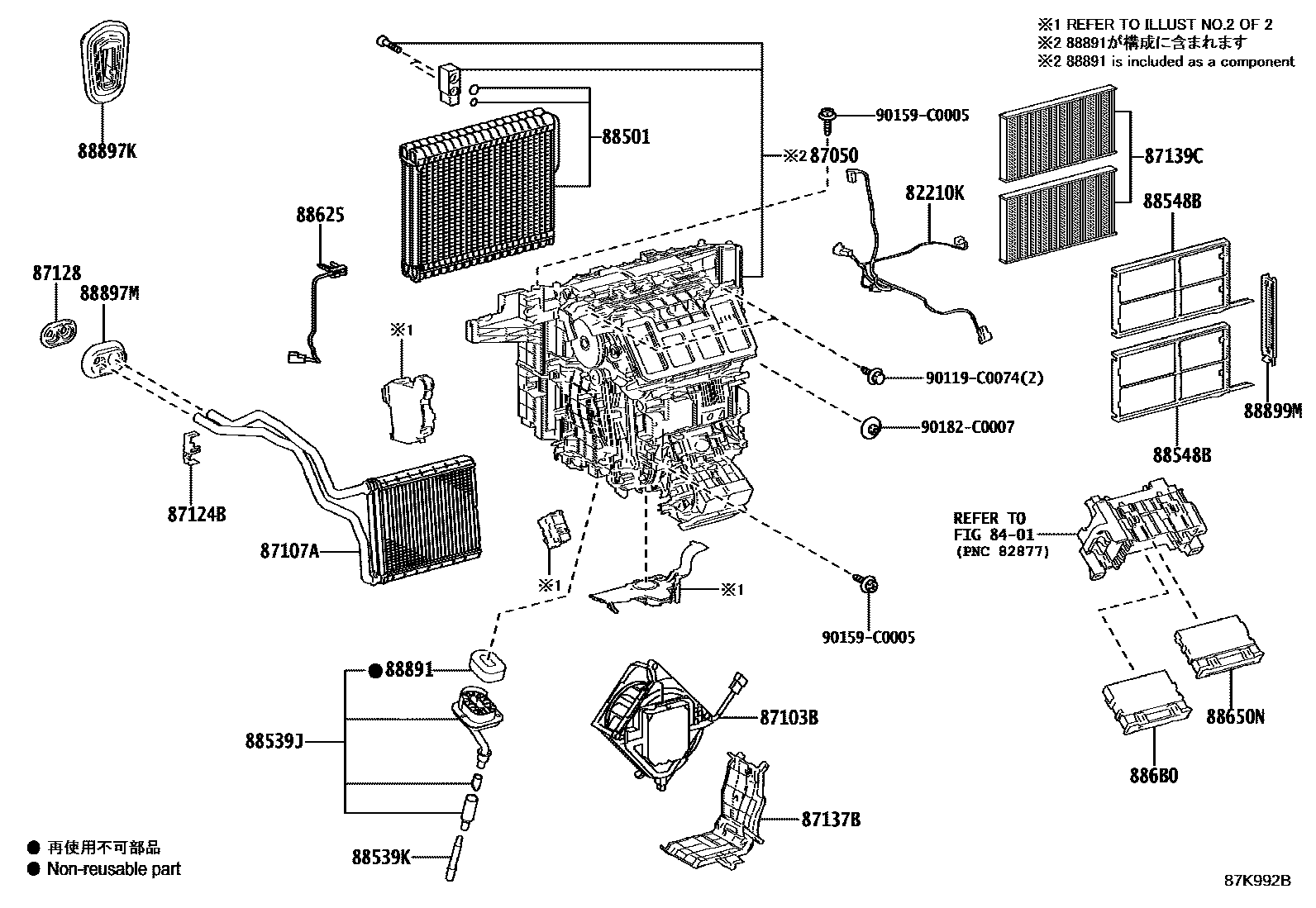

Toyota BZ4X (TFTM) — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0R090iXEAM10,YEAM15202210

8401

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0R440iXEAM10,YEAM15202210

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0R070iXEAM10,YEAM15202210

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0R020iXEAM10,YEAM15202210

87124BCLAMP, HEATER

main87124-F4060iXEAM10,YEAM15202210

87128GROMMET, HEATER

main87128-28010iXEAM10,YEAM15¥400202210

87137BCOVER, HEATER BLOWER

main87137-0R020iXEAM10,YEAM15202210

87139CFILTER, CLEAN AIR

main87139-0R060iXEAM10,YEAM15¥5,800202210

MICRO DUST FILTER

main87139-42050iXEAM10,YEAM15¥4,000202210

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0R080iXEAM10,YEAM15202210

88539JHOSE, DRAIN COOLER

main88539-0R110iXEAM10,YEAM15202210

88539KHOSE, DRAIN COOLER

main88539-0R130iXEAM10,YEAM15202210

88548BCASE, AIR FILTER

main88899-0R200iXEAM10,YEAM15¥1,260202210

88625THERMISTOR, COOLER, NO.1

main88620-0R140iXEAM10,YEAM15202210

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0R311iXEAM10,YEAM15202210

886B0COMPUTER ASSY, HEAT MANAGEMENT

main886B0-0R010iXEAM10,YEAM15202210

88891PACKING (FOR COOLER)

main88899-42260iXEAM10,YEAM15202210

88897KGROMMET, (FOR COOLER PIPE)

main88899-0R020iXEAM10,YEAM15202210

88897MGROMMET (FOR HEATER PIPE)

main87128-F4060iXEAM10,YEAM15202210

88899MPLATE, COVER(FOR AIR FILTER)

main88899-0R070iXEAM10,YEAM15202210

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90182C0007

main90182-C0007

23 parts on this diagram · 2 diagrams in section
