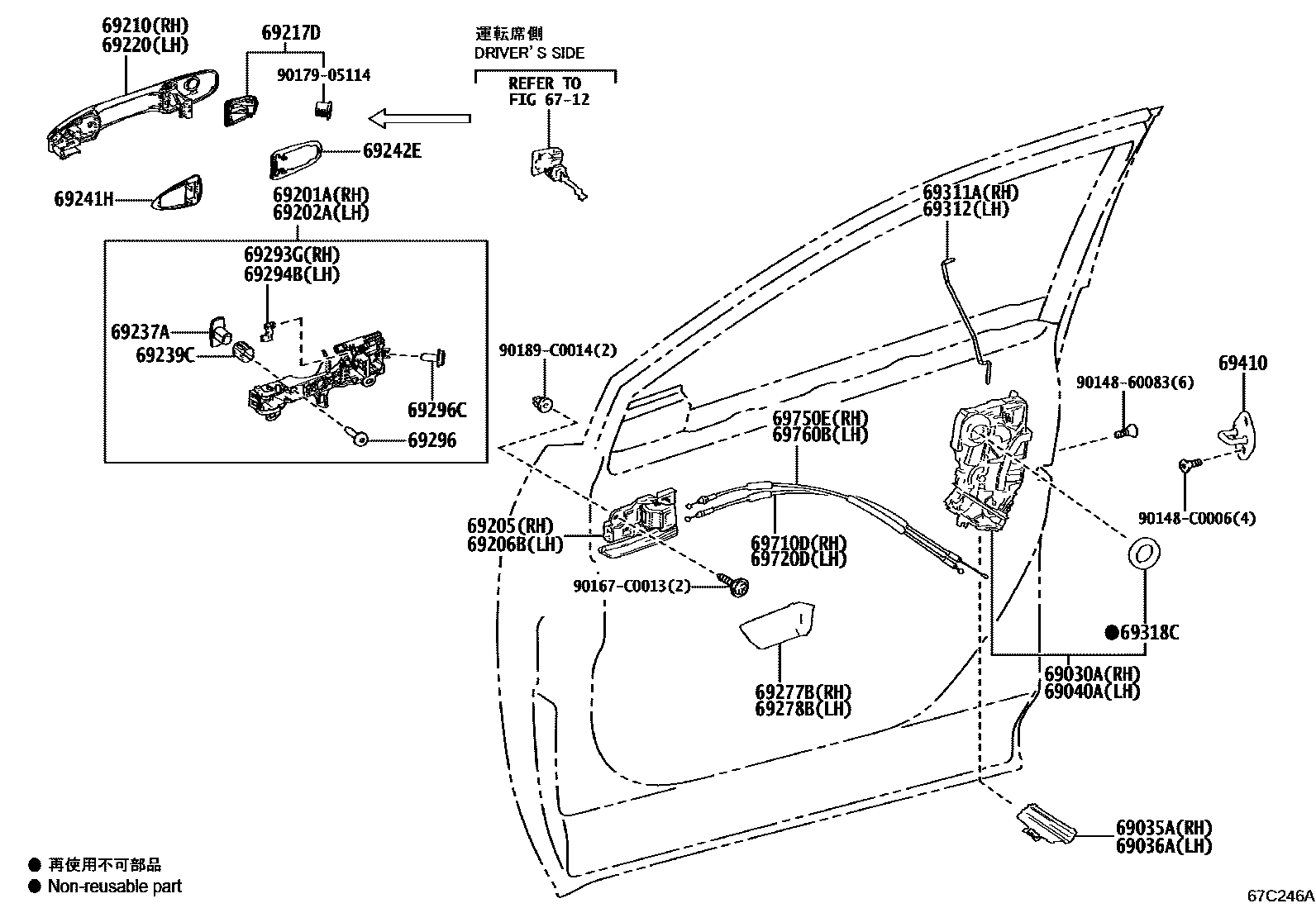

Toyota BZ4X (TFTM) — FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-0R020iXEAM10,YEAM15202210

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-0R010iXEAM10,YEAM15202210

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-0R010iXEAM10,YEAM15202210

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-0R020iXEAM10,YEAM15202210

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-07020iXEAM10,YEAM15..H,M202210

main69201-0R070iXEAM10..L202210-202312

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-07020iXEAM10..L202210

main69202-0R130iXEAM10..L202210-202312

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0R060-C2iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,3#

main69205-0R060-C2iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0R060-C2iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,3#

main69206-0R060-C2iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0A100-A0iXEAM10..L202210

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0A100-B1iXEAM10,YEAM15..H,M202210

SILVER ME.,1L0 ,2TX

main69210-0A100-B2iXEAM10,YEAM15..H,M202210

DK.GRAY ME.,1L9 ,2WX

main69210-0A100-B4iXEAM10,YEAM15202312

PRECIOUS METAL,1L5 ,2YV

main69210-0A100-C0iXEAM10,YEAM15..H,M202210

BLACK MC.,209

main69210-0A100-C1iXEAM10..L202210

BLACKISH AGEHA GF.,221 ,2WE

main69210-0A100-E0iXEAM10,YEAM15..H,M202210-202312

DARK SHERRY M.M.,2WF ,4W4

main69211-0R170-A0iXEAM10..L202210-202312

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R170-B1iXEAM10..L202210-202312

SILVER ME.,1L0 ,2TX

main69211-0R170-B2iXEAM10..L202210-202312

DK.GRAY ME.,1L9 ,2WX

main69211-0R170-C0iXEAM10..L202210-202312

BLACK MC.,209

main69211-0R170-C1iXEAM10..L202210-202312

BLACKISH AGEHA GF.,221 ,2WE

main69211-0R170-E0iXEAM10..L202210-202312

DARK SHERRY M.M.,2WF ,4W4

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02510iXEAM10,YEAM15..H,M202210

main69217-0R240iXEAM10..L202210-202312

BLACK

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0A090-A0iXEAM10,YEAM15..H,M202210

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0A090-B1iXEAM10,YEAM15..H,M202210

SILVER ME.,1L0 ,2TX

main69210-0A090-B2iXEAM10..L202210

DK.GRAY ME.,1L9 ,2WX

main69210-0A090-B4iXEAM10,YEAM15202312

PRECIOUS METAL,1L5 ,2YV

main69210-0A090-C0iXEAM10..L202210

BLACK MC.,209

main69210-0A090-C1iXEAM10..L202210

BLACKISH AGEHA GF.,221 ,2WE

main69210-0A090-E0iXEAM10,YEAM15..H,M202210-202312

DARK SHERRY M.M.,2WF ,4W4

main69211-0R160-A0iXEAM10..L202210-202312

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R160-B1iXEAM10..L202210-202312

SILVER ME.,1L0 ,2TX

main69211-0R160-B2iXEAM10..L202210-202312

DK.GRAY ME.,1L9 ,2WX

main69211-0R160-C0iXEAM10..L202210-202312

BLACK MC.,209

main69211-0R160-C1iXEAM10..L202210-202312

BLACKISH AGEHA GF.,221 ,2WE

main69211-0R160-E0iXEAM10..L202210-202312

DARK SHERRY M.M.,2WF ,4W4

69237ANUT, FRONT DOOR HANDLE

main69237-0R090iXEAM10..L202210-202312

main69237-F4030iXEAM10..L202210

69239CBUSH, FRONT DOOR HANDLE

main69239-07020iXEAM10,YEAM15..H,M202210

main69239-0R090iXEAM10..L202210-202312

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-07020iXEAM10,YEAM15202210

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-07020iXEAM10,YEAM15202210

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0E040-C0iXEAM10..L202210

BLACK,TRIM1#,2#,3#

main69277-0E040-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0E060-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#,3#

main69278-0E060-C0iXEAM10,YEAM15..H,M202210

BLACK,TRIM1#,2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-02090iXEAM10,YEAM15..H,M202210

main69293-0R130iXEAM10..L202210-202312

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-07010iXEAM10,YEAM15..H,M202210

main69293-0R140iXEAM10..L202210-202312

69296SCREW, DOOR INSIDE HANDLE

main90148-50003iXEAM10..L¥60202210-202312

main90148-C0013iXEAM10,YEAM15..H,M202210

69296CSCREW, DOOR INSIDE HANDLE

main69296-0R100iXEAM10..L202210-202312

main90148-50003iXEAM10,YEAM15..H,M¥60202210

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0R090iXEAM10,YEAM15202210

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0R090iXEAM10,YEAM15202210

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iXEAM10,YEAM15¥120202210

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iXEAM10,YEAM15202210

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-0R100iXEAM10,YEAM15202210

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-0R100iXEAM10,YEAM15202210

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-0R100iXEAM10,YEAM15202210

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-0R100iXEAM10,YEAM15202210

9014860083

main90148-60083¥60

90148C0006

main90148-C0006

90167C0013

main90167-C0013

9017905114

main90179-05114¥70

90189C0014

main90189-C0014

35 parts on this diagram · 1 diagram in section
