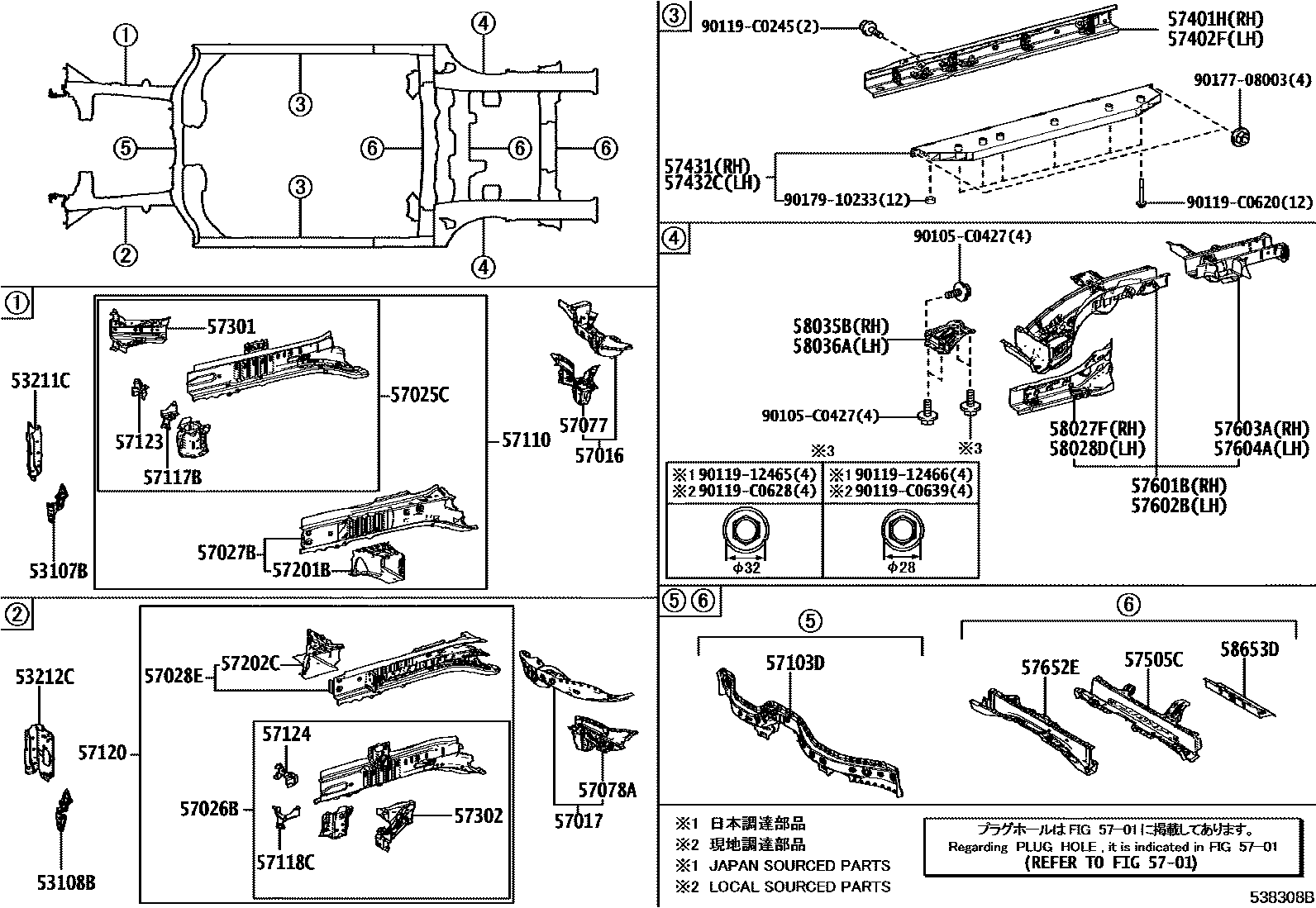

Toyota BZ4X (TFTM) — FLOOR SIDE MEMBER

53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH

main53107-0R020iXEAM10,YEAM15202210

53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH

main53108-0R020iXEAM10,YEAM15202207

53211CSUPPORT, RADIATOR, RH

main53211-0R080iXEAM10,YEAM15202210

53212CSUPPORT, RADIATOR, LH

main53212-0R070iXEAM10,YEAM15202210

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0R070iXEAM10,YEAM15202210

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0R090iXEAM10,YEAM15202210

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0R090iXEAM10,YEAM15202210

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0R090iXEAM10,YEAM15202210

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0R080iXEAM10,YEAM15202210

57028EBRACKET SUB-ASSY, CONVERTER SUPPORT

main57028-0R080iXEAM10,YEAM15202210

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-0R050iXEAM10,YEAM15202210

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-0R060iXEAM10,YEAM15202210

57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL

main57103-0R020iXEAM10,YEAM15202210-202305

main57103-0R040iXEAM10,YEAM15202305

57110MEMBER ASSY, FRONT SIDE, RH

main57110-0R030iXEAM10,YEAM15202210

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-0R070iXEAM10,YEAM15202210

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-0R070iXEAM10,YEAM15202210

57120MEMBER ASSY, FRONT SIDE, LH

main57120-0R030iXEAM10,YEAM15202210

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-0R080iXEAM10,YEAM15202210

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0R080iXEAM10,YEAM15202210

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0R020iXEAM10,YEAM15202210

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0R020iXEAM10,YEAM15202210

57301OUTRIGGER SUB-ASSY, NO.1 RH

main57301-0R020iXEAM10,YEAM15202210

57302OUTRIGGER SUB-ASSY, NO.1, LH

main57302-0R020iXEAM10,YEAM15202210

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0R130iXEAM10,YEAM15202210

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0R140iXEAM10,YEAM15202210

57431REINFORCEMENT, CENTER FLOOR, NO.1 RH

main57431-0R040iXEAM10,YEAM15202210

57432CREINFORCEMENT, CENTER FLOOR, NO.1 LH

main57432-0R040iXEAM10,YEAM15202210

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0R100iXEAM10,YEAM15202210

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-0R130iXEAM10,YEAM15202210

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-0R130iXEAM10,YEAM15202210

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R090iXEAM10,YEAM15202210

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R090iXEAM10,YEAM15202210

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-0R140iXEAM10,YEAM15202210

58027FPANEL SUB-ASSY, CENTER FLOOR SIDE, RH

main58027-0R060iXEAM10,YEAM15202210

58028DPANEL SUB-ASSY, CENTER FLOOR SIDE, LH

main58028-0R060iXEAM10,YEAM15202210

58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH

main58035-0R020iXEAM10,YEAM15202210

58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH

main58036-0R020iXEAM10,YEAM15202210

58653DSHEET, REAR FLOOR SILENCER, NO.2

main58653-0R080iXEAM10,YEAM15202210

90105C0427

main90105-C0427

9011912465

main90119-12465¥240

9011912466

main90119-12466¥240

90119C0245

main90119-C0245

90119C0620

main90119-C0620

90119C0628

main90119-C0628

90119C0639

main90119-C0639

9017708003

main90177-08003¥80

9017910233

main90179-10233¥120

48 parts on this diagram · 1 diagram in section
