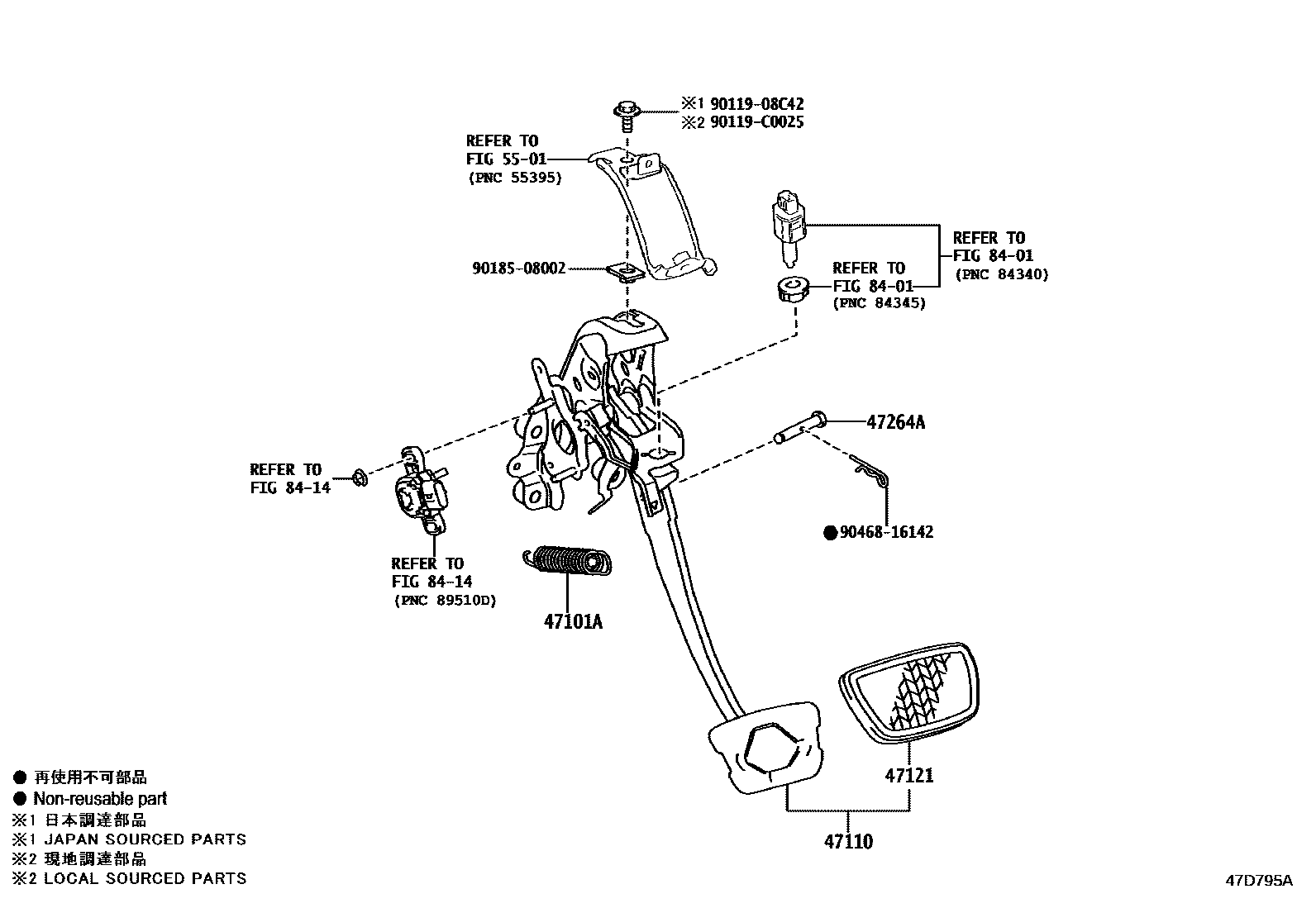

Toyota BZ4X (TFTM) — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17005iXEAM10,YEAM15¥180202210

(J)

main90507-C0001iXEAM10,YEAM15202210

(L)

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R190iXEAM10,YEAM15202210-202211

sub47110-0R191

main47110-0R191iXEAM10,YEAM15202212

47121PAD, BRAKE PEDAL

main47121-0R040iXEAM10,YEAM15202210-202212

main47121-0R050iXEAM10,YEAM15202212

47264APIN(FOR PUSH ROD)

main90249-08221iXEAM10,YEAM15¥220202210

5501

8401

8414

9011908C42

main90119-08C42¥80

90119C0025

main90119-C0025

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
