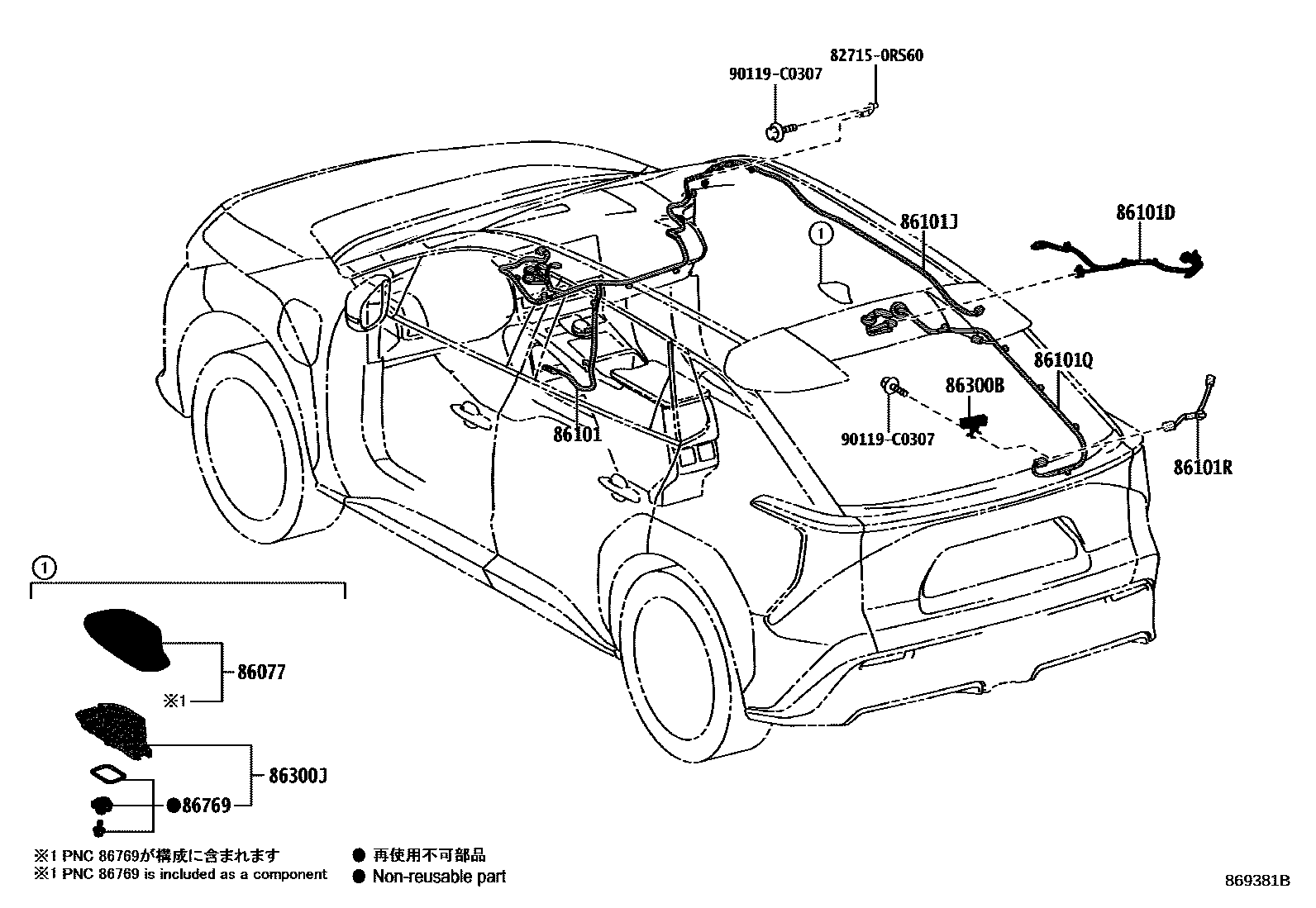

Toyota BZ4X (TFTM) — ANTENNA

86077COVER KIT, ANTENNA

main86077-42030-A0iXEAM10,YEAM15202210

PLATINUM WHITE PEARL MC.,089

main86077-42030-B0iXEAM10,YEAM15202210

DK.GRAY ME.,1L9

main86077-42030-B1iXEAM10,YEAM15202210

SILVER ME.,1L0

main86077-42030-B2iXEAM10,YEAM15202210

PRECIOUS METAL,1L5

main86077-42030-C0iXEAM10,YEAM15202210

BLACK MC.,209 ,2PU ,2TX ,2WE ,2WF ,2WX ,2YV

main86077-42030-C1iXEAM10,YEAM15202210

BLACKISH AGEHA GF.,221

86101CORD SUB-ASSY, ANTENNA

main86101-0R830iXEAM10,YEAM15..H,M202210

AUDIO-AVN

main86101-0R840iXEAM10..L202210

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0R850iXEAM10,YEAM15202210

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0R810iXEAM10,YEAM15..H,M202210

AUDIO-AVN

main86101-0R820iXEAM10..L202210

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-0R860iXEAM10,YEAM15..H,M202210

AUDIO-AVN

main86101-0RB40iXEAM10..L202210

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-0RA20iXEAM10,YEAM15..H,M202210

AUDIO-AVN

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-06260iXEAM10,YEAM15..H,M202210

AUDIO-AVN

86300JANTENNA ASSY, ROOF

main86760-0R040iXEAM10,YEAM15202210

86769HOUSING, ROOF ANTENNA

main86769-0R020iXEAM10,YEAM15202210

827150RS60BRACKET,WIRING HARNESS CLAMP

main82715-0RS60

90119C0307

main90119-C0307

11 parts on this diagram · 1 diagram in section
